High-Performance 01-19 Chevy/GMC 2500/3500 Ram Air Transmission Pan - Heavy Duty Aluminum Alloy Upgrade for Improved Cooling & Durability - Perfect for Off-Roading, Towing & High-Performance Driving

overview

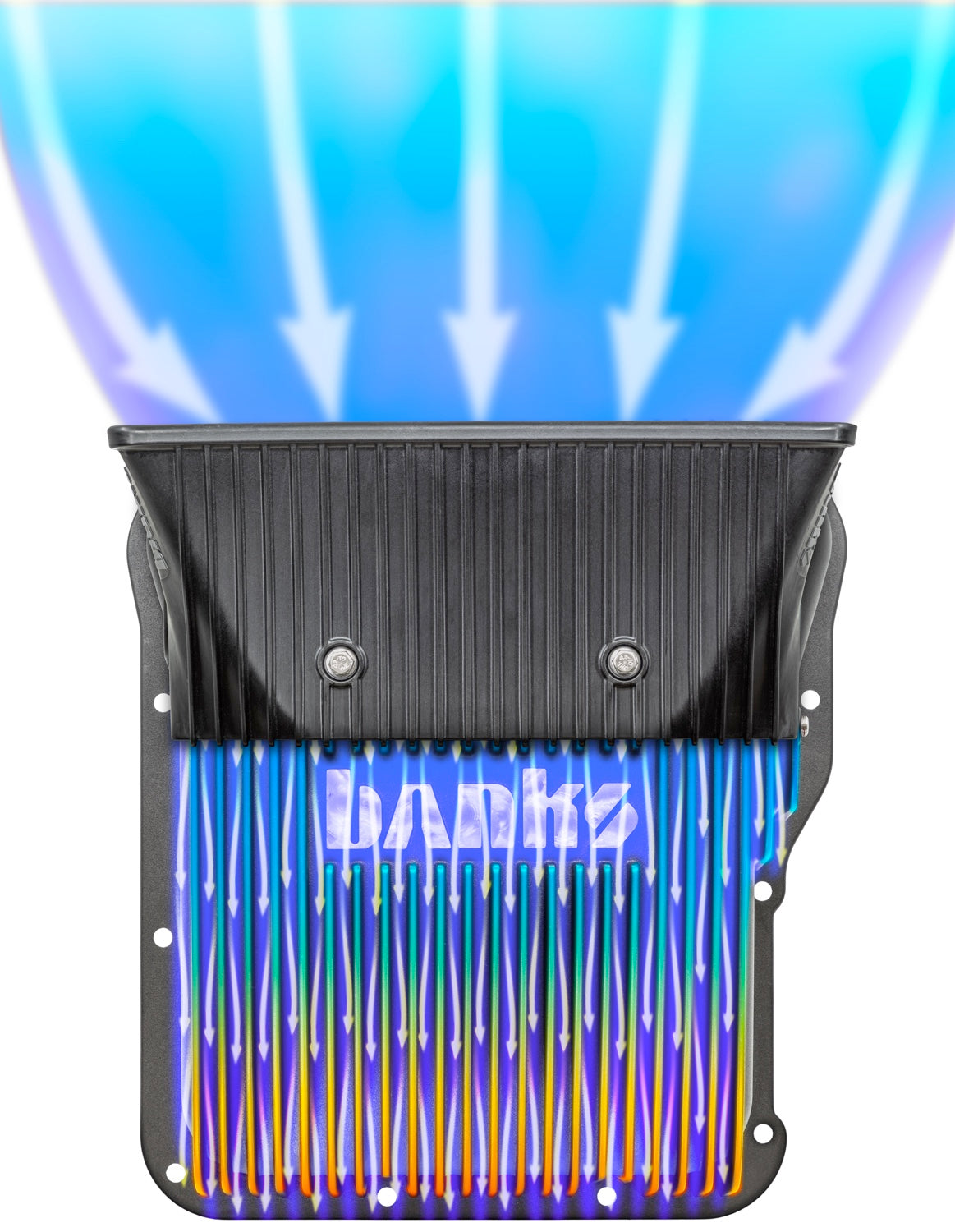

Banks brings Ram-Air cooling to the Allison 1000 transmission. Using technology from our patented differential covers, the Banks Ram-Air Transmission Pan extends fluid oil life by rejecting more heat than stock and all competitors. An additional two quarts of capacity, a break-away Ram-Air scoop, and Banks FlowThru Fins aid in cooling. Cooler fluid means a longer-lasting transmission.

Key Features

• Engineered for the highest heat rejection, improved oil flow and full oil drainage
• Adds 2 additional quarts of fluid capacity
• FlowThru Fins efficiently transfer heat from the oil to the cover's exterior

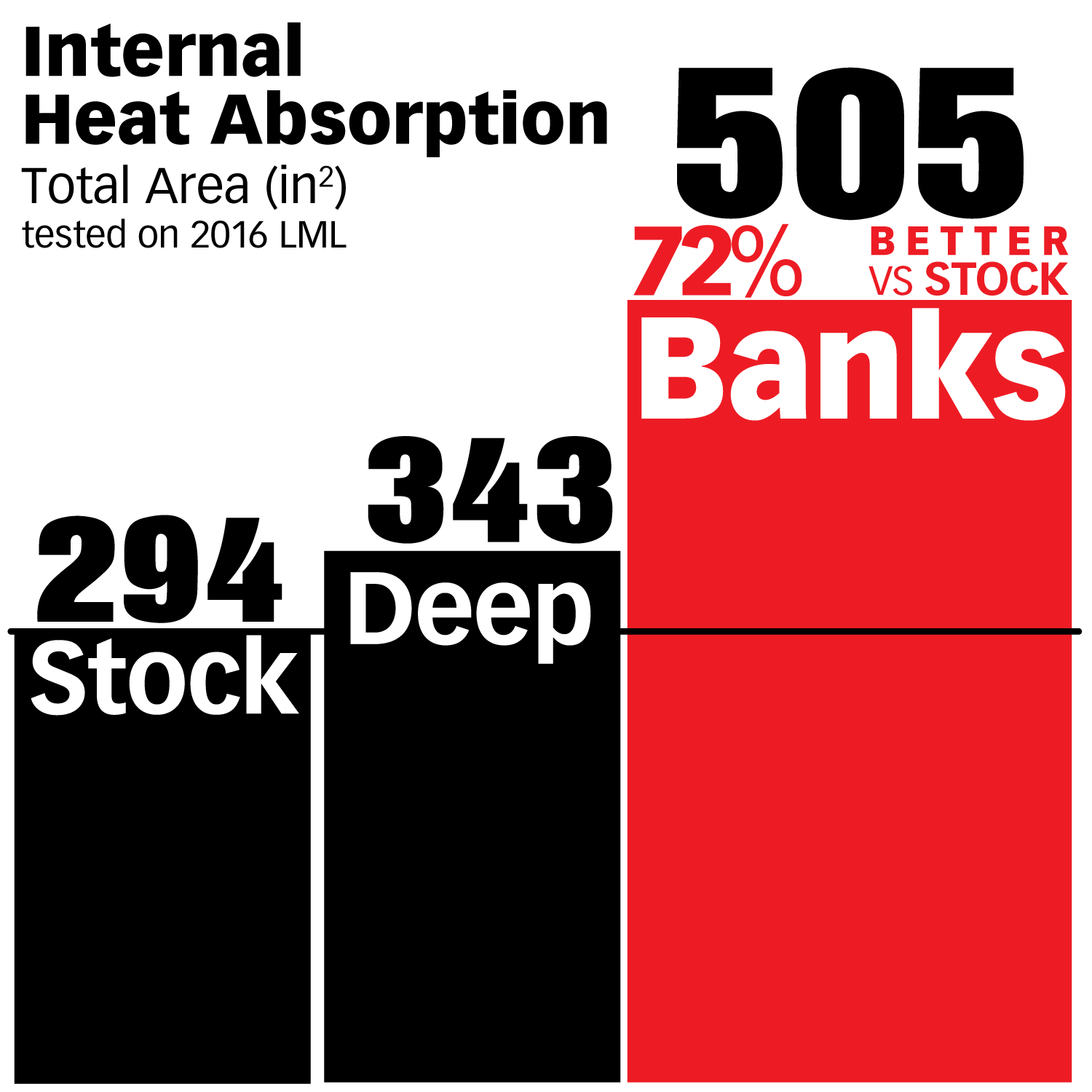

• 72% more heat absorption surface area than stock
• 141% more cooling surface area than stock
• Breakaway Ram-Air Scoop design prevents pan damage
• Allows full fluid drainage


Fluid Dynamics

• Internal cooling fins run inline with the drain port with streamlined passageways
• Downward-facing port eases oil change process
• Lower aeration means longer fluid life


Technical Specs

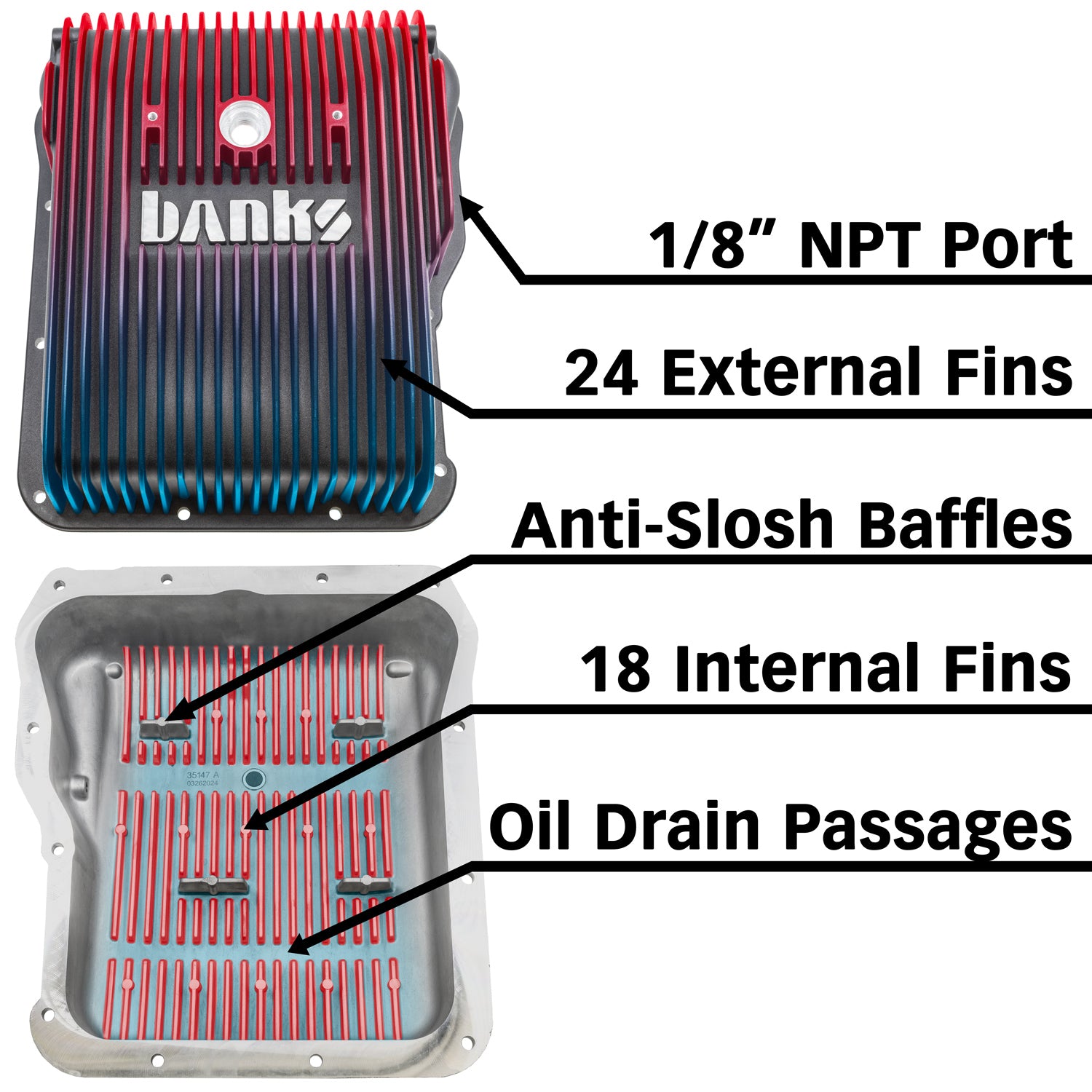

• 1/8 NPT port for aux temp sensor
• External heat radiation fin count: 24
• Internal heat absorption fin count: 18
• External heat radiation surface area: 833 in²
• Internal heat absorption surface area: 505 in²
• Fasteners: 12 x stainless steel M6 flange hex bolts
• Material: A380 aluminum diecast with CNC machined surfaces


Oil service

• High temp resistant Ferrite Magnetic Drain Plug
• Fully drains oil pickup tube for quicker oil changes
• Banks recommends Amsoil Synthetic Diesel Oil
• Adds 2 quarts additional capacity(Check OEM Owners Manual)
