this is a pre-order product, Banks will begin shipping these out in December 2024. Place your order now to secure your transmission pan before the first batch sells out!
overview

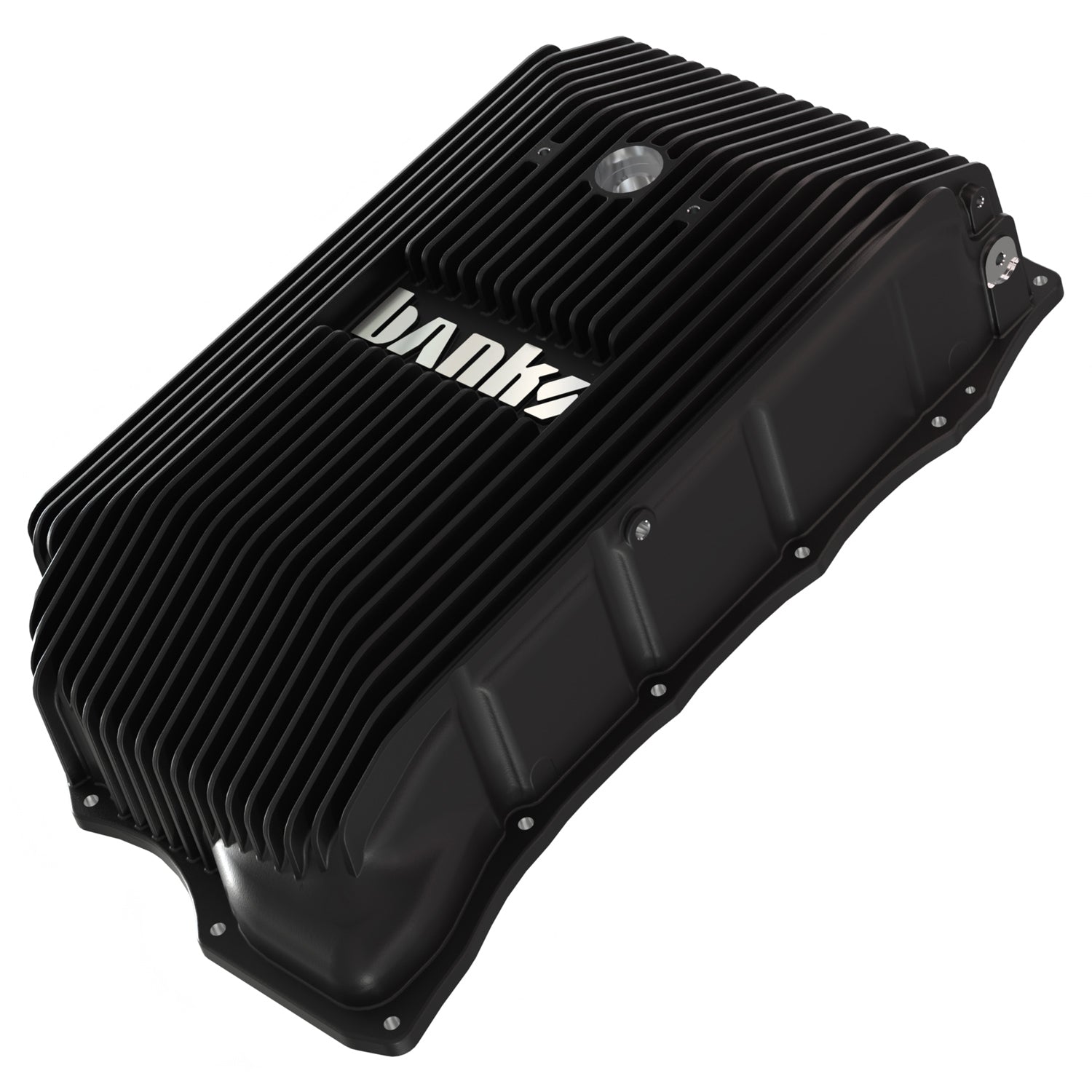

Banks brings Ram-Air cooling to the heavy-duty Allison 10L1000 transmission for 2020-2024. Using technology from our patented differential covers, the Banks Ram-Air Transmission Pan extends fluid oil life by rejecting more heat than stock and all competitors. An additional three quarts of capacity, a break-away Ram-Air scoop, and Banks FlowThru Fins aid in cooling. Cooler fluid means a longer-lasting transmission.
- Engineered for the highest heat rejection, improved oil flow and full oil drainage
- Adds 3 additional quarts of fluid capacity
- Internal fins transfer heat through the cover into the external fins
- 123% more heat absorption surface area than stock

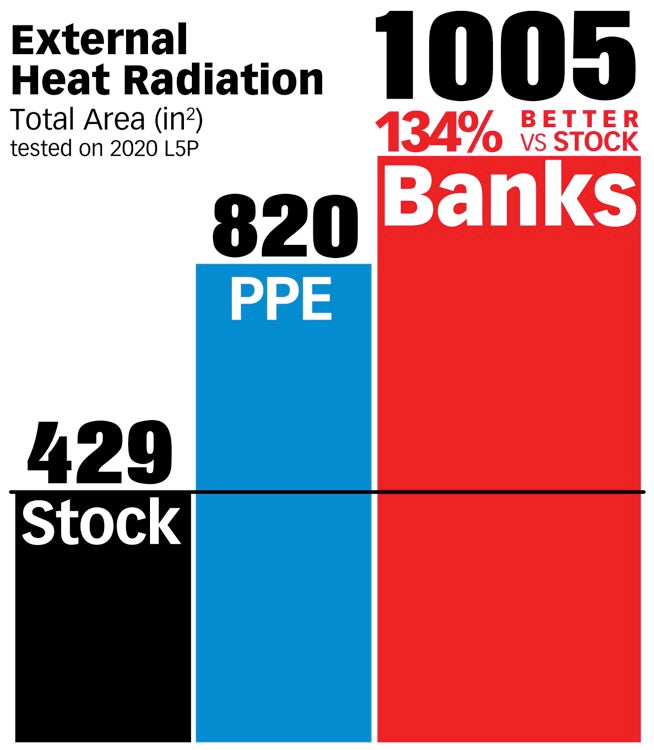

- 134% more cooling surface area than stock

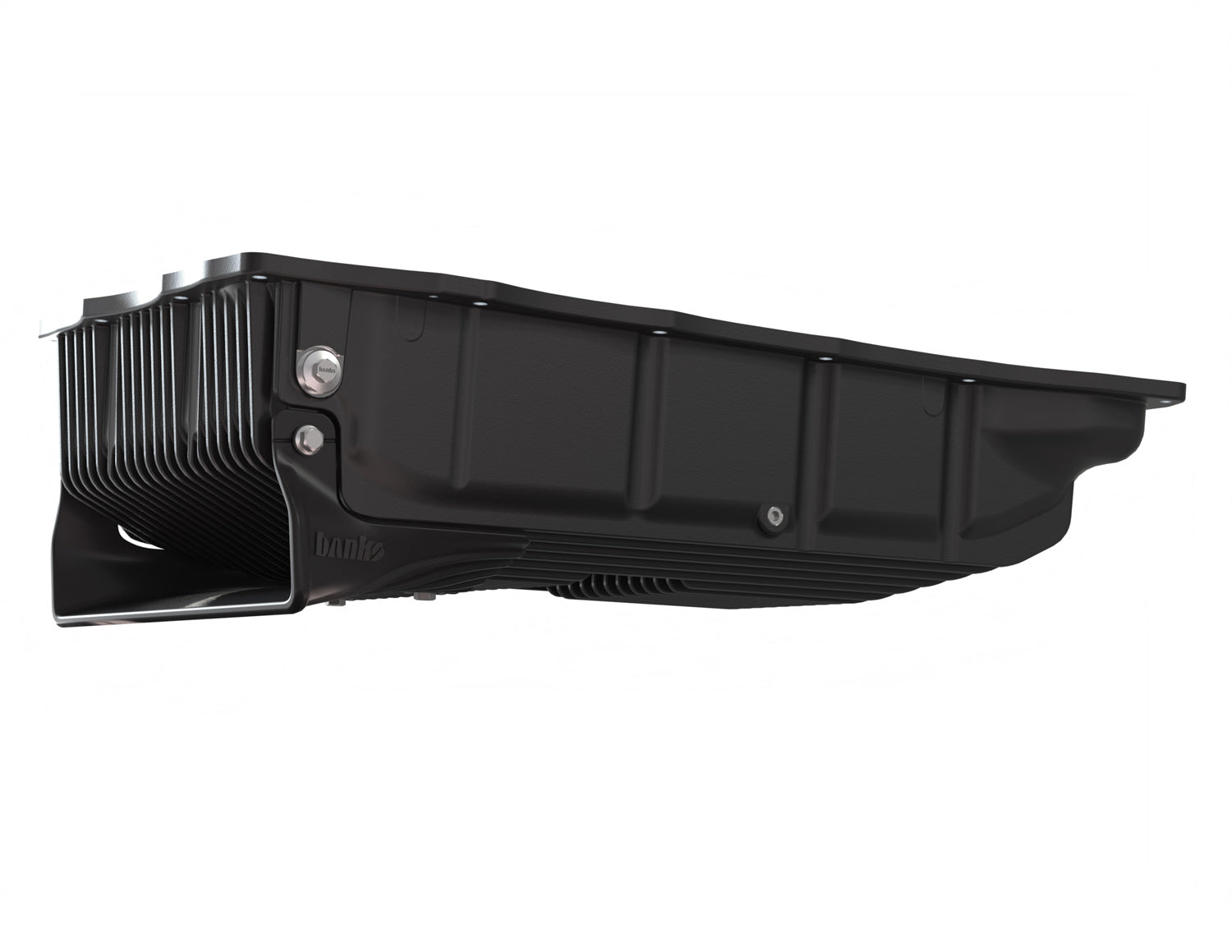

- Breakaway Ram-Air Scoop Design Prevents Pan Damage
- Internal geometry allows full fluid drainage
Fluid Dynamics
- Internal cooling fins run inline with the drain port with streamlined passageways
- Downward facing port eases oil change process
- Low fluid aeration means longer fluid life
Technical Specs
- 1/8 NPT port for aux temp sensor
- External heat radiation fin count: 22
- Internal heat absorption fin count: 20
- External heat radiation surface area: 1005 in2
- Internal heat absorption surface area: 835 in2
- Fasteners: 16 x stainless steel M6 flange hex bolts
- Material: A380 aluminum diecast with CNC machined surfaces
Oil service
- High temp resistant Ferrite Magnetic Drain Plug
- Fully drains oil pickup tube for quicker oil changes
- Banks recommends Amsoil ATF
- Adds 3.0 quarts additional capacity(Check OEM Owners Manual)
