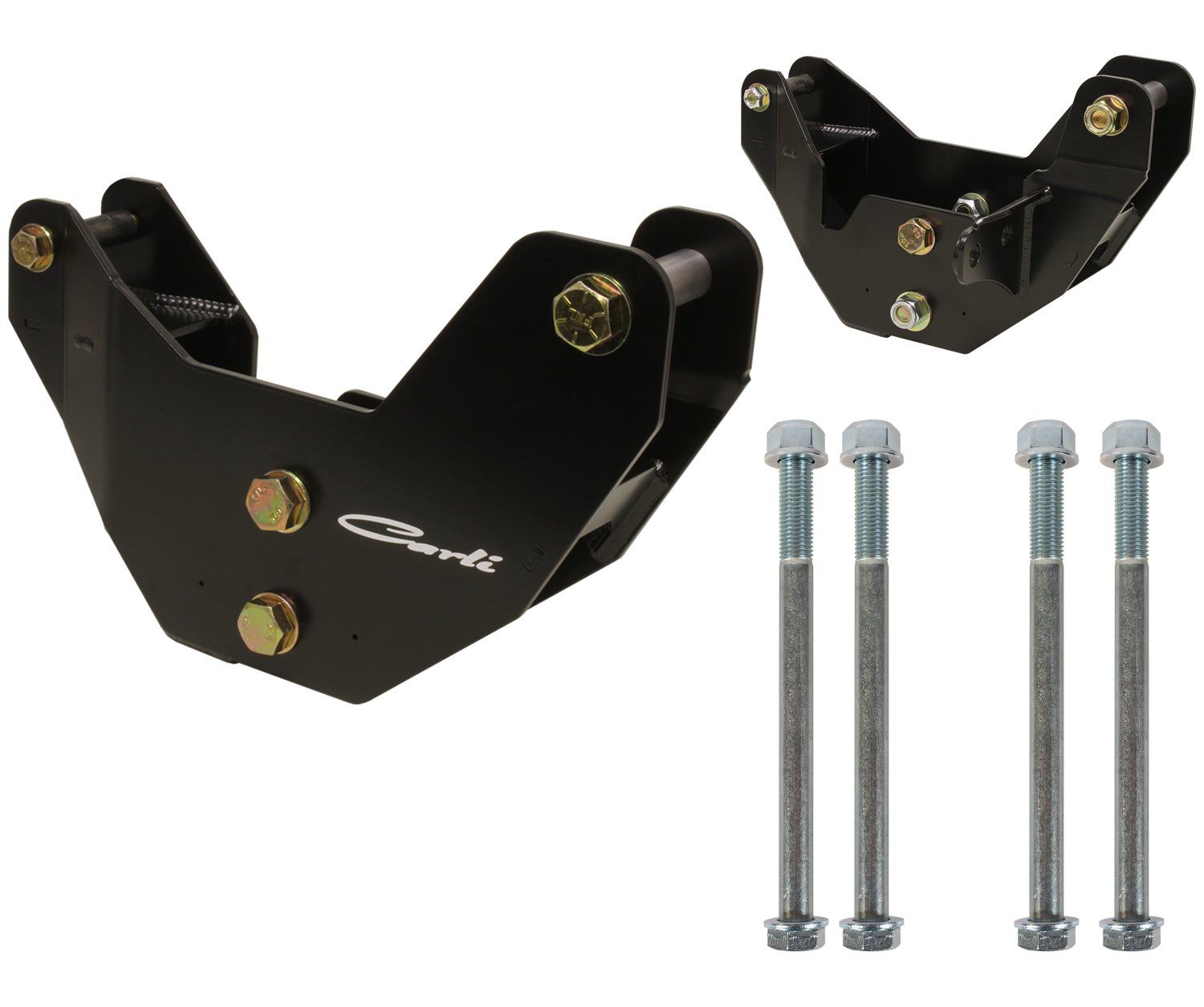

2019-2024 Ram 2500/3500 Heavy Duty Radius Arm Drop Bracket Kit for Off-Road Suspension Upgrade - Perfect for Lifted Trucks & 4x4 Adventures

Carli's Radius Arm Drop Bracket maintains your 2019-2024 Ram 2500/3500 critical caster and coil geometry. RAM's new suspension setup has proven itself to be quite complex in its idiosyncrasies, and as a result we have engineered a simple solution to overcome the less-desired nuances of the new trucks. Using Chrysler CAD files, we developed a simple-to-install Drop that is truly bolt-on with no welding required. Due to their unique design, the vehicle chassis and powertrain can be serviced or replaced without removal of the Radius Arm Drops.

Constructed out of 1/4" Cold Rolled Steel and CNC formed, these precision components rotate your axle back to OEM settings, locating your lower coil perch angles where they were intentionally designed; this also alleviates the coil bowing that is encountered when you lift the front and don't address the coil bow issue, something that will never be truly addressed with a "coil only" approach. Carli Radius Arm Drops for 2013+ RAM trucks will keep your investment driving like the day it left the showroom floor.

KEY FEATURES:

• Maintains critical geometries with 2.5-4″ Front Lift
• Heavy-Duty Construction
• Bolt-On installation, no welding required
• Includes: CS-DCM-20-HK – 4 Extended Crossmember Bolts

FITMENT:

• 2019-2024 Ram 2500, 4×4
• 2019-2024 Ram 3500, 4×4
