A TURN KEY SYSTEM:

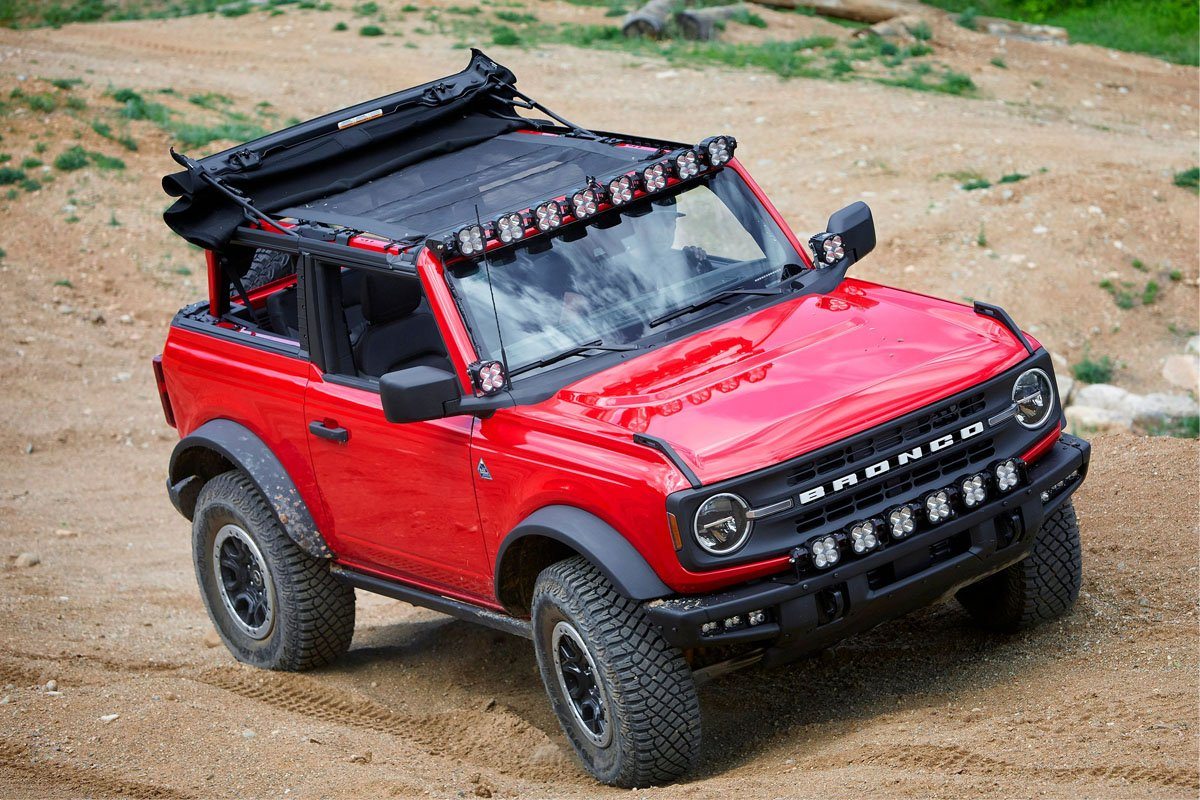

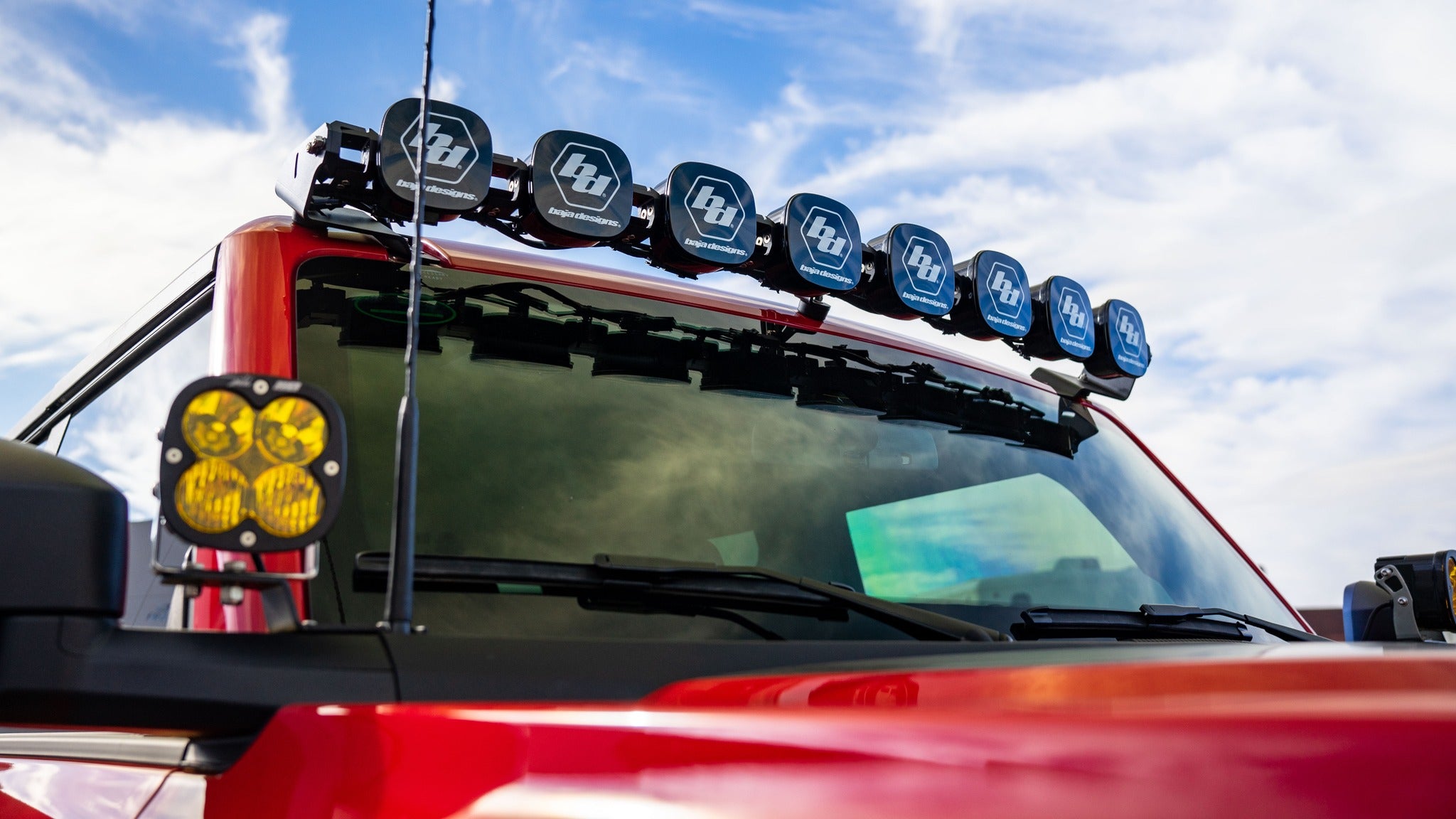

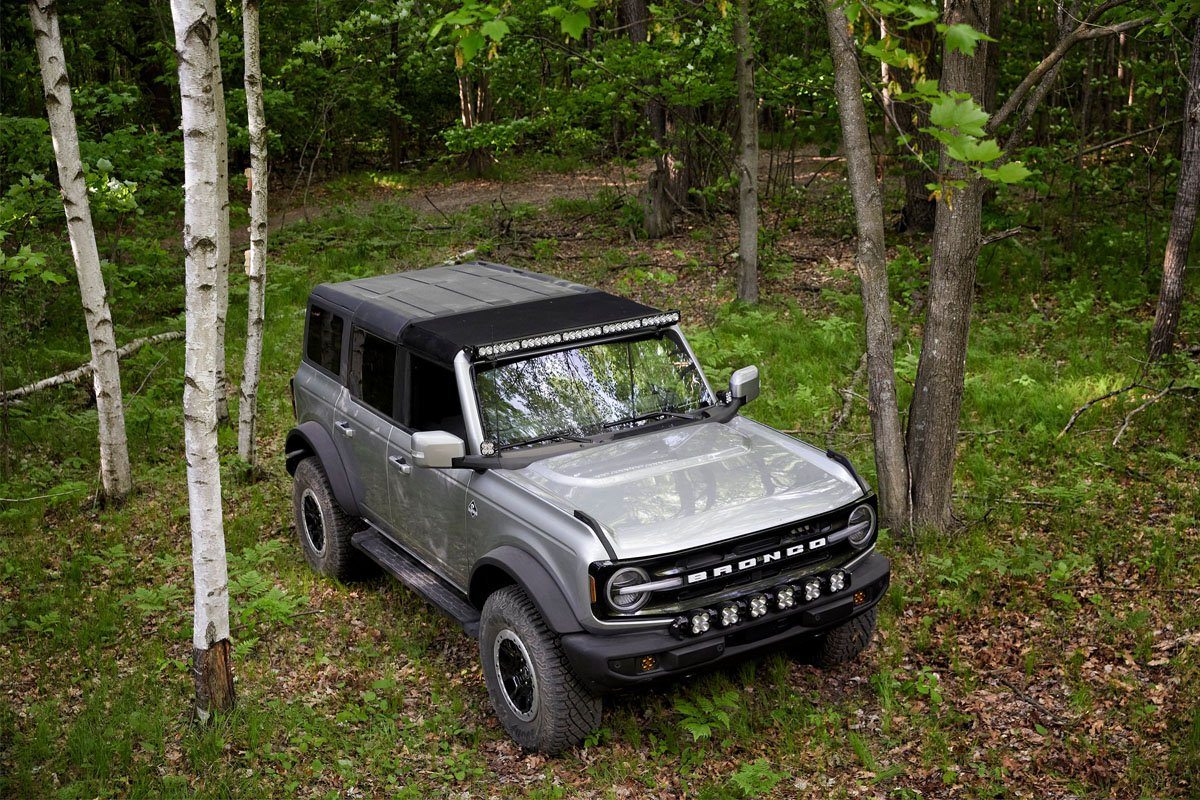

Baja Designs' XL Linkable Roof Bar Kit for the 2021-2024 Ford Bronco includes 8 XL Sports, Links, mounting brackets specific to the Bronco, upfitter or toggle switch style wiring harness and rock guards.
This aftermarket LED light kit is a turn key system for the Bronco owner that is looking to take down the night, and give a standoff appearance to their vehicle!
SPECS:
- Lumens: 25,200 Utilizing 32 LEDs
- Wattage/Amps: 208w / 16A
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

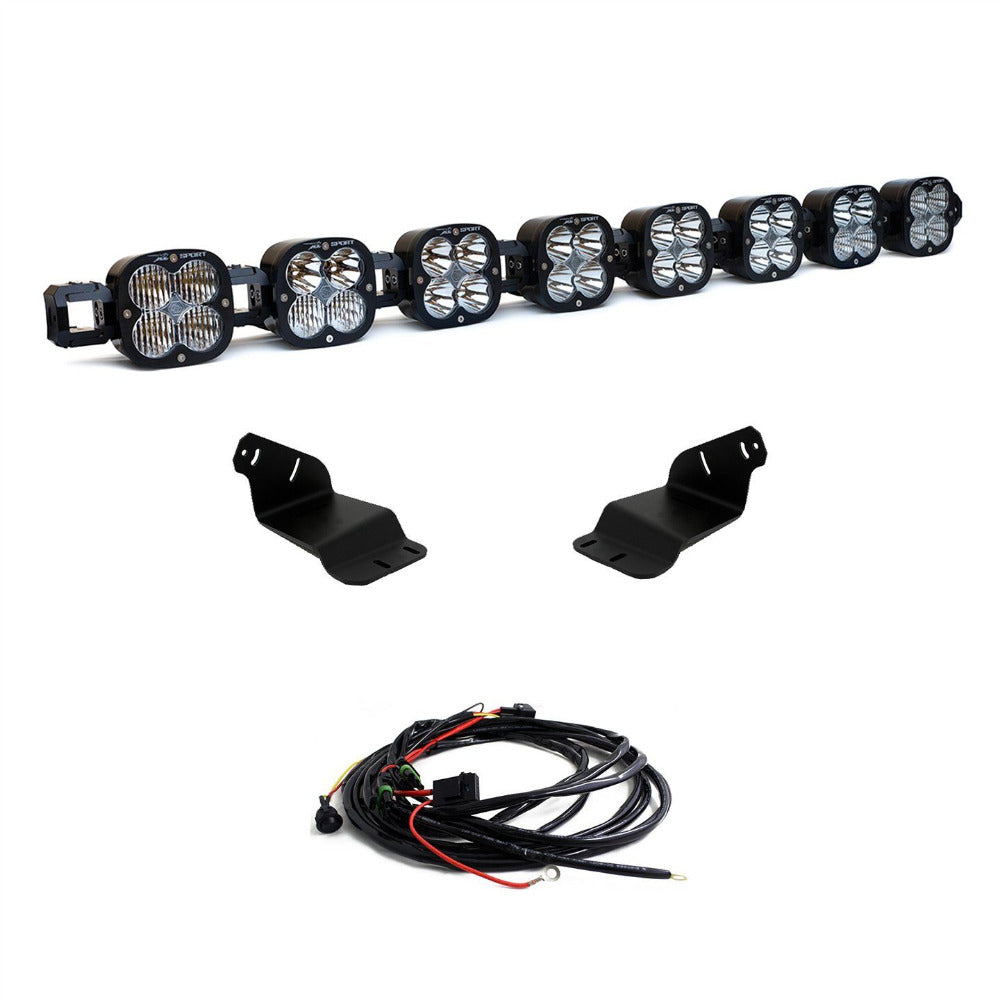

WHAT'S INCLUDED:
- x4 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x8 XL Sport Rock Guards
- Bronco Mounting Brackets
- Pre-load Kit
- Harness with Toggle Switch or Upfitter (see product options)
WIRING OPTIONS:
- TOGGLE SWITCH/NON-UPFITTER OPTION: The included wiring harness is a rocker switch style that can be activated inside the cab of the vehicle.

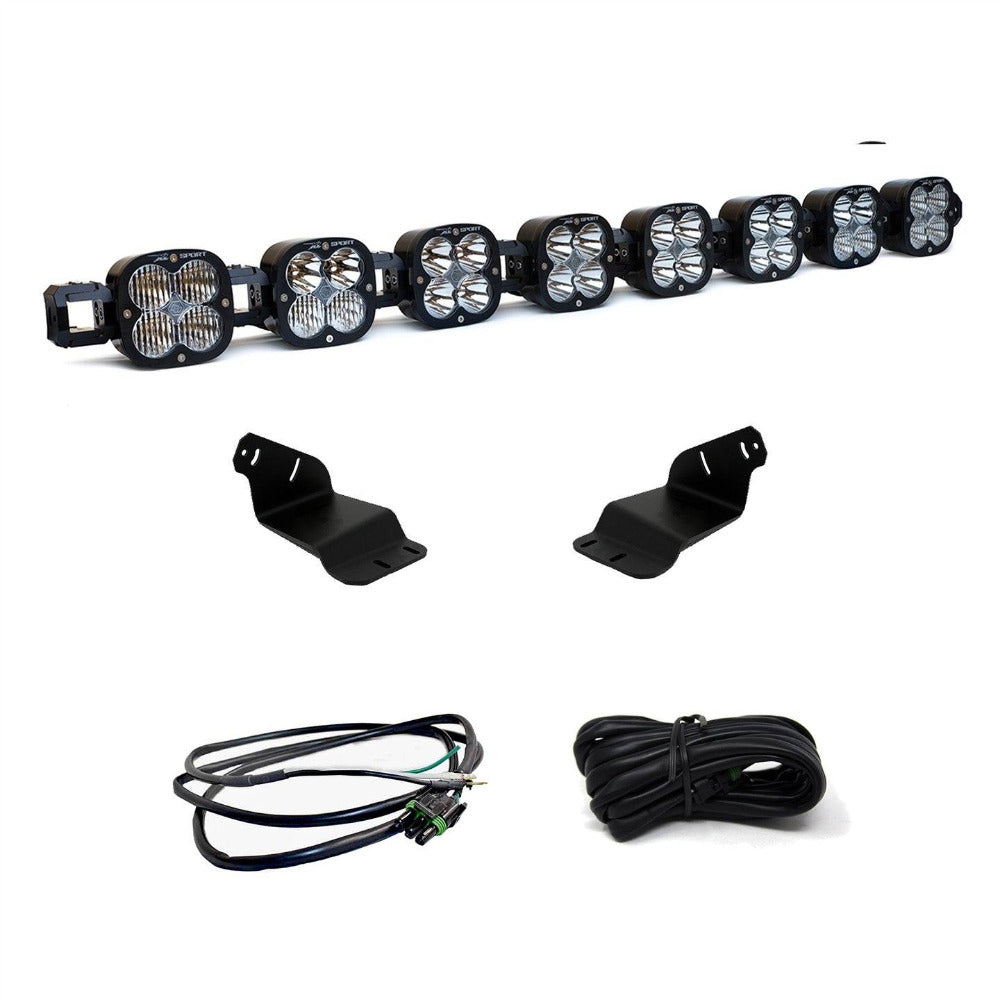

- UPFITTER OPTION: The included wiring harness is an upfitter style designed to be tied into either your vehicles factor upfitter system or a Switch-Pros unit.
PRODUCT OPTIONS:
| Part# | Wiring Style |
|---|
447756 | Toggle Switch |
|
447756UP | Upfitter
|
|
BAJA DESIGNS BEAM PATTERNS:
- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
- Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
- High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
