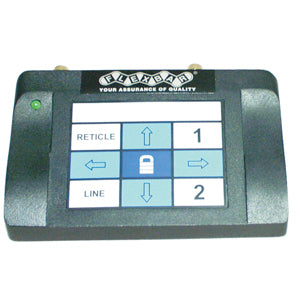

New Model Features 5 Built-In Reticle Patterns Plus 5 Built-In Line Types.
Fully Adjustable Reticles on a Live Image For Precise Positioning with Optics.
Reticle Types
- Single Crosshair
- Dual Crosshair
- Box
- Crosshair with 2 sizeable centered circles
- Fixed in the Center Single Crosshair
Additional Features
- Convenient "Hold" or Lockout Capability
- Digital Circuitry for Maximum Stability
- Digital Memory of Reticle Position and Line Type when Powered Off
- Accommodates both Composite and S-Video
- Operates in Color and BW
- Phase Locked to Camera
Specifications
- Signal: 7-1.4vp-p @75 ohms (NTSC, PAL, EIA, CCIR)
- Video Input: RS170, Composite and S-Video
- Video Output: Unity Gain, Loop Through
- Power Input: 12V dc 400ma, 110 VAC Standard (UL Approved)
- Dimensions: (w) x (h) x (l) 5.75" x 4.25" x 1.375" (includes rear connectors)
- Weight: 0.5lbs
- CE Certified
Line Types
- Solid Black Lines
- Dashed Black Lines
- Solid White Lines
- Dashed White Lines
- No Lines
