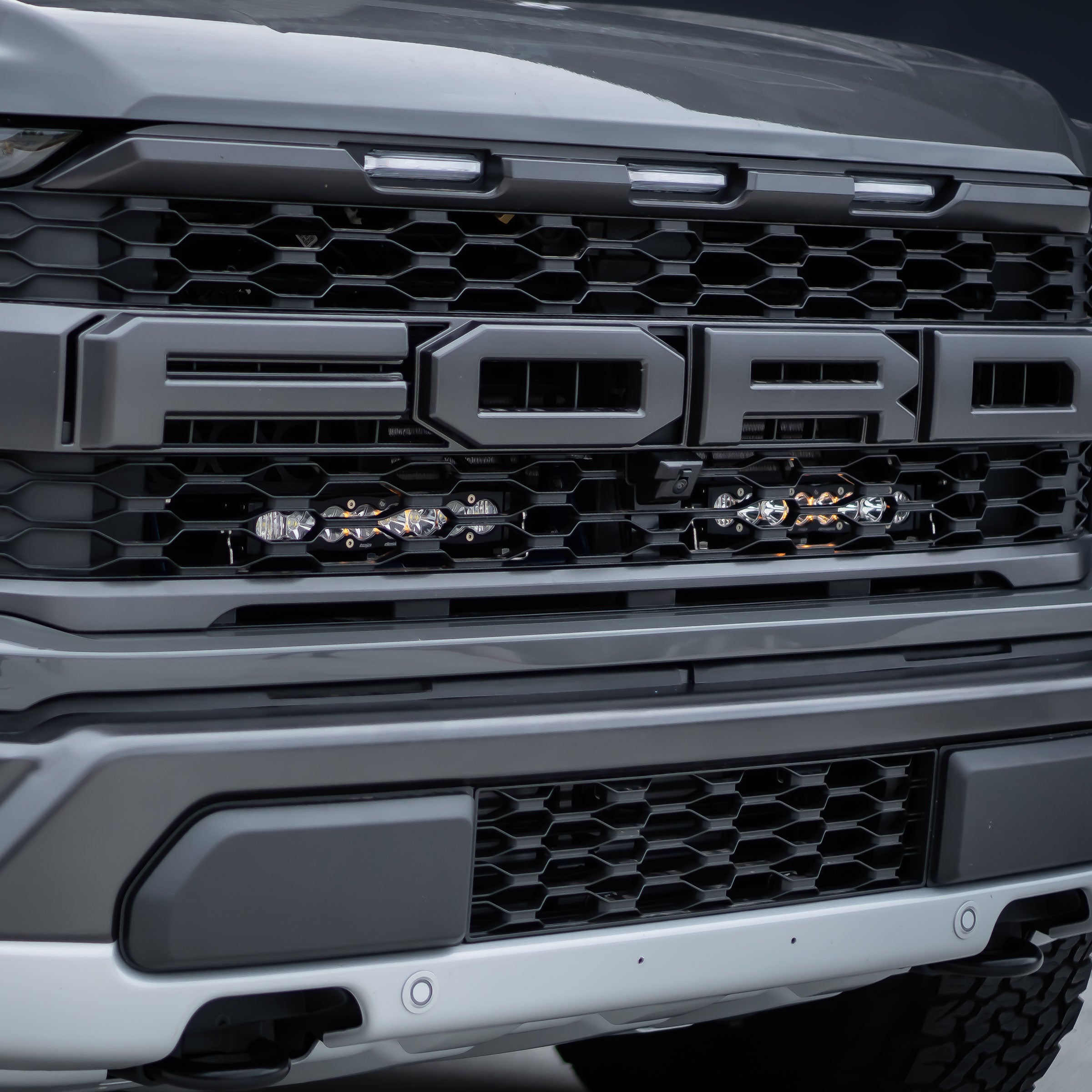

FUNCTIONAL WHILE MAINTAINING VISUAL APPEAL:
Baja Designs' 2021-2024 Ford Raptor S8 Series Behind the Grill kits were designed with both functionality and visual appeal in mind. This kit offers two 10" S8 LED light bars (clear or amber lens), mounting brackets, and hardware. To give these kits and easier wiring installation each kit includes an up-fitter harness that will allow you to tap your lights into the factory up-fitter switches.
VEHICLE FITMENT:
2021-2024 Ford Raptor
SPECS:
- Lumens: 6,350 Utilizing 8 Cree LEDs
- Wattage/Amps: 60W / 4.00A
- Dimensions: 10” x 3” x 1.6”
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

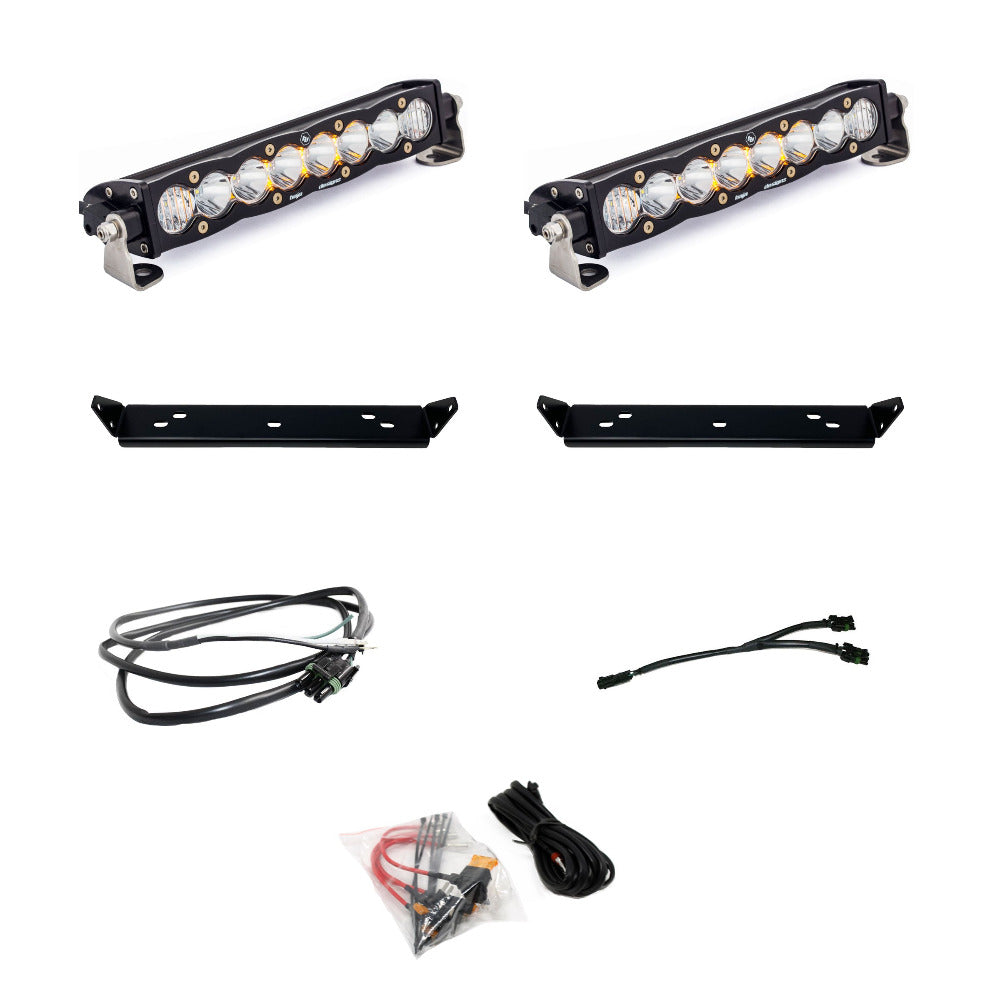

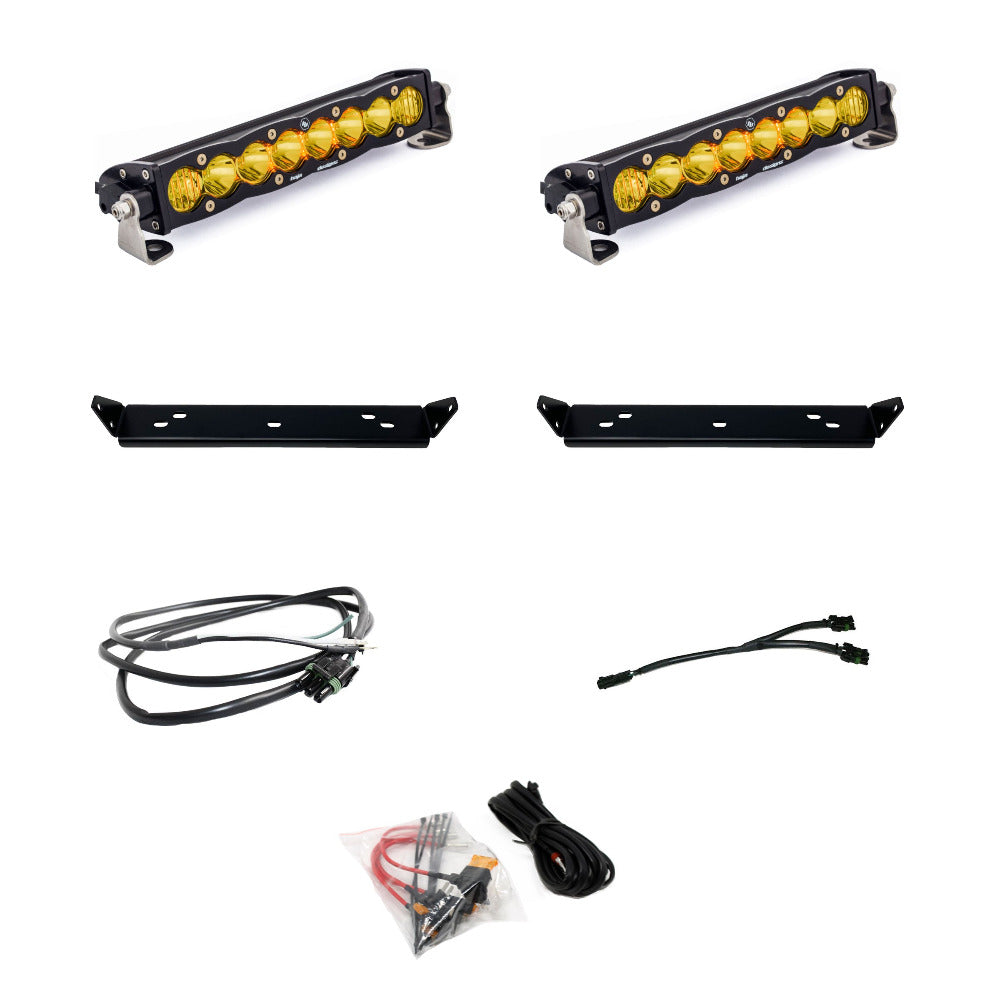

WHAT'S INCLUDED:
- x2 Amber or clear S8 10" in Driving Combo (see product options)
- x1 Wiring Harness
- x1 Wiring Harness Splitter
- x2 Mounting Brackets
- All necessary hardware
BEAM PATTERNS:
- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
- Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
- Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
