Ultrasonic Thickness Gauge - Digital Wall Thickness Meter for Metal, Plastic & Pipes - Non-Destructive Testing (NDT) Equipment for Industrial & Home DIY Projects

Comes complete with 5MHz probe, bottle of ultrasonic couplant gel, operations manual. Compact durable fitted carrying case and includes NIST certified block.

Description

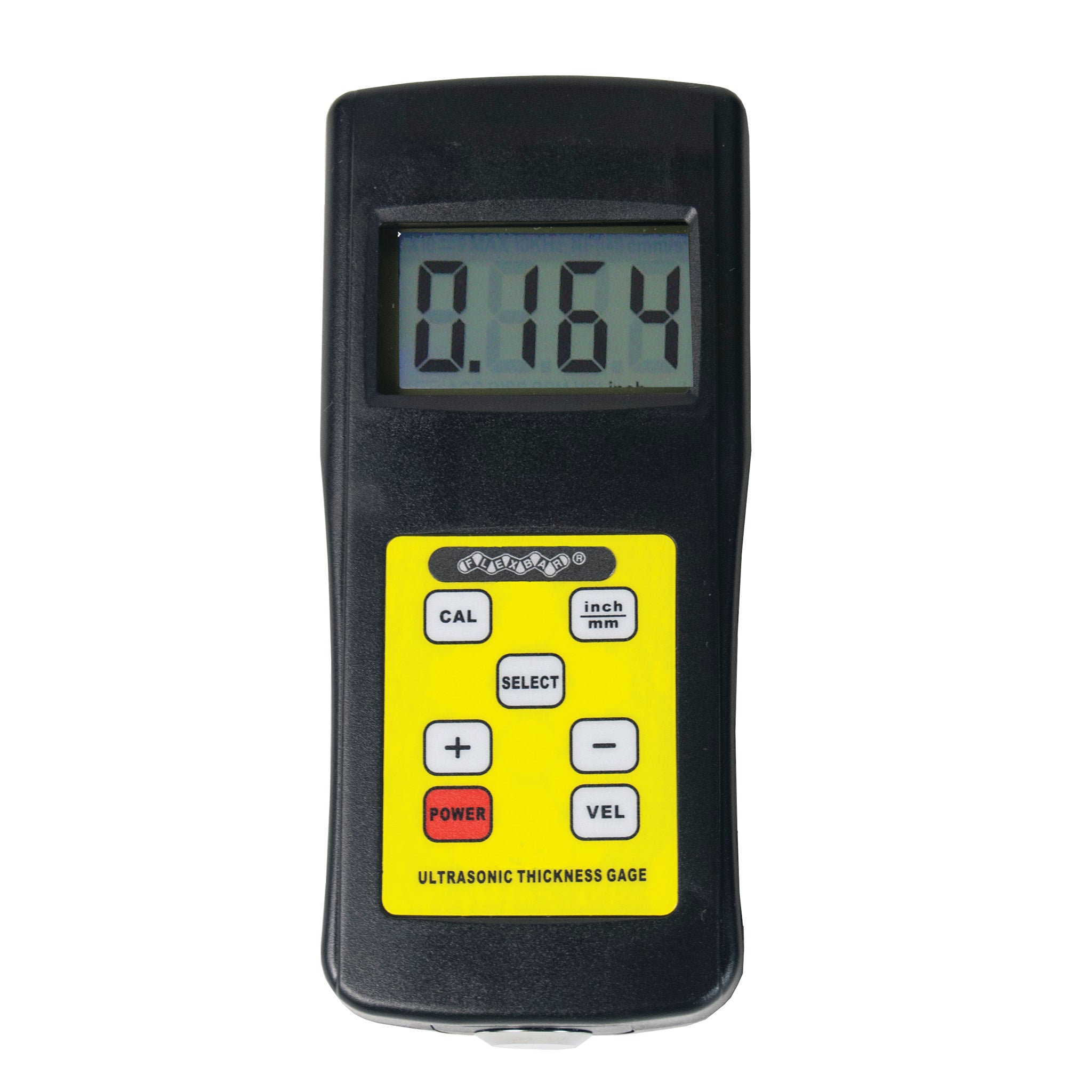

This handheld unit has precise touch and read capabilities  yet is economically priced. The 15945 is designed to measure the thickness of metallic and non-metallic materials such as aluminum. titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The 15945 will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Specifications

Specifications

Display Type: Large 4-digit LCD
Minimum Display Unit: 0.001"/0.1mm
Measuring Range: 0.040" - 8" (0.1mm-200mm) in steel w/standard probe (other values depending on material)
Lower Limit Steel Pipes: Min. Dia 0.8" x 0.1" (20mm x 3mm)
Display Accuracy: ±0.1mm
Sound Velocity Range: 1640-29,527 ft/s (500-9000m/s)
Operating Temperature: 32-122 Degrees F (-5 - 40 degrees C)
Frequency: 5MHz
Update Range: 4Hz
Power Supply: 1.5v AA alkaline Batteries (4pc)
Battery Life: Approx. 250 hours/battery set
Dimensions: 4.9 x 2.6 x 0.9in (161 x 69 x 32mm)
Weight: 0.7lbs
Operating Current: <20mA (3V)
