2024 Jeep Gladiator JT Bumper LP4 LED Light Kit - Off-Road Driving & Night Adventure Lighting Accessories

Baja Designs' 2020-2024 Jeep JT Gladiator Bumper LP4 LED Light Kit:

This lighting and wiring setup has been tested on the 2020-Current Jeep JT with the plastic bumper to take the guesswork out of installation! The LP4 is the smallest variant in the LP lineup but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200° spread of useable LED light. The LP4 boasts 7,050 forward-projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.

With an amber daytime running light, the LP4 will fulfill all your lighting needs.

SPECS (PER LIGHT):

• Forward Projecting Lumens: 7,050 Utilizing 4 LEDs
• Forward Projecting Wattage/Amps: 60W / 6.5A
• IPT Lumens: 1,700 Utilizing 4 LEDs
• IPT Wattage/Amps: 15W / 1.0A
• Backlight Wattage/Amps: 4.83W / 0.35A
• Dimensions: 5.1" Height / 5.1" Width / 3.2" Depth
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless plastic
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

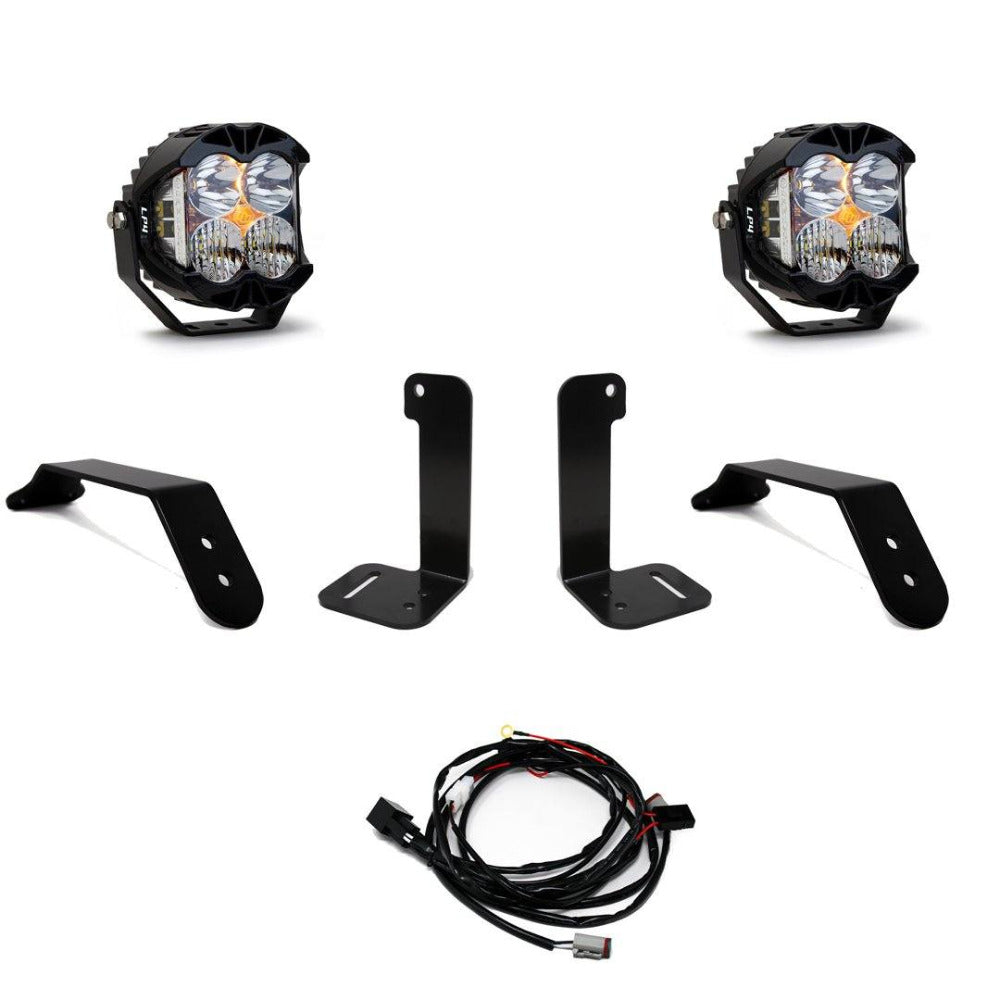

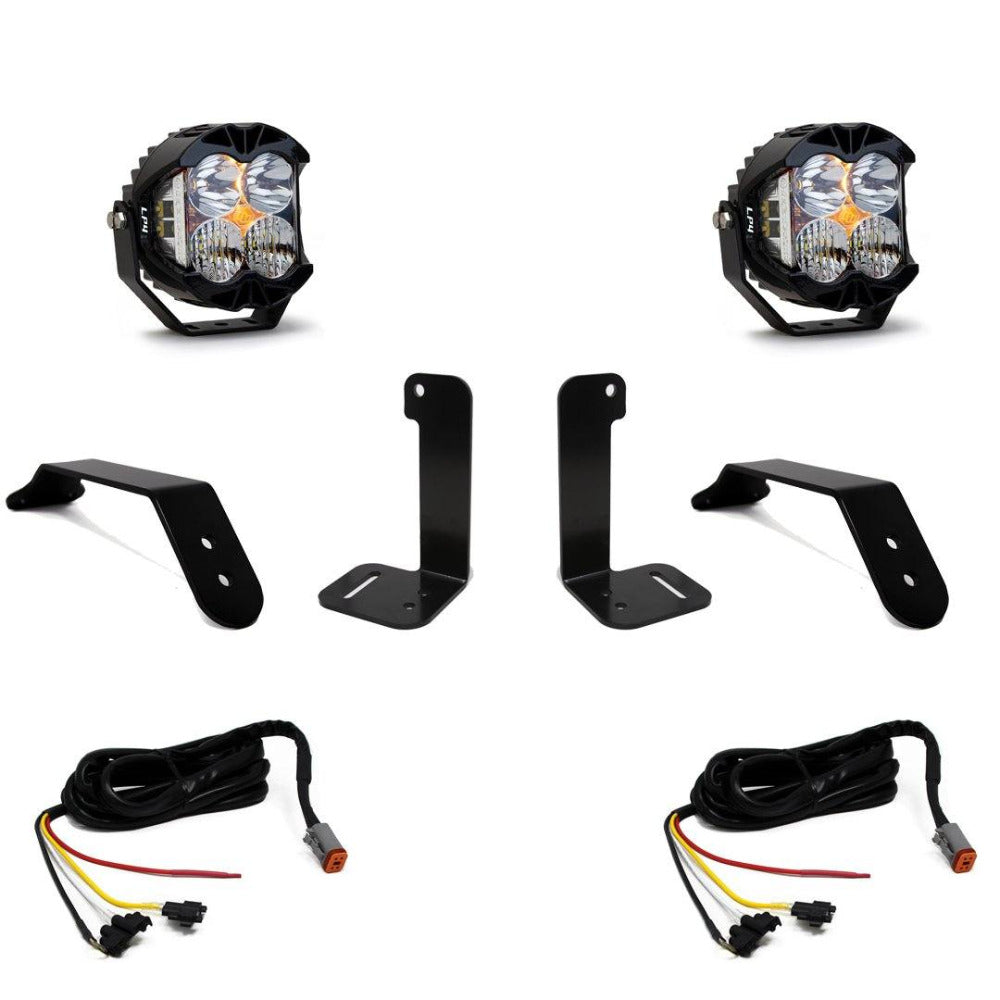

WHAT'S INCLUDED:

• QTY (2) LP4 LED Light
• Wiring Options
  • • Upfitter Wiring harness for models with factory Upfitter switch provisions.
    • Toggle-switch style wiring allows you to pick the location of the switch
• Vehicle Specific Brackets
• Zip ties

BEAM PATTERNS:

Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and spot (6°) optics to provide you with a smooth blend of light for both near-field applications and distance
