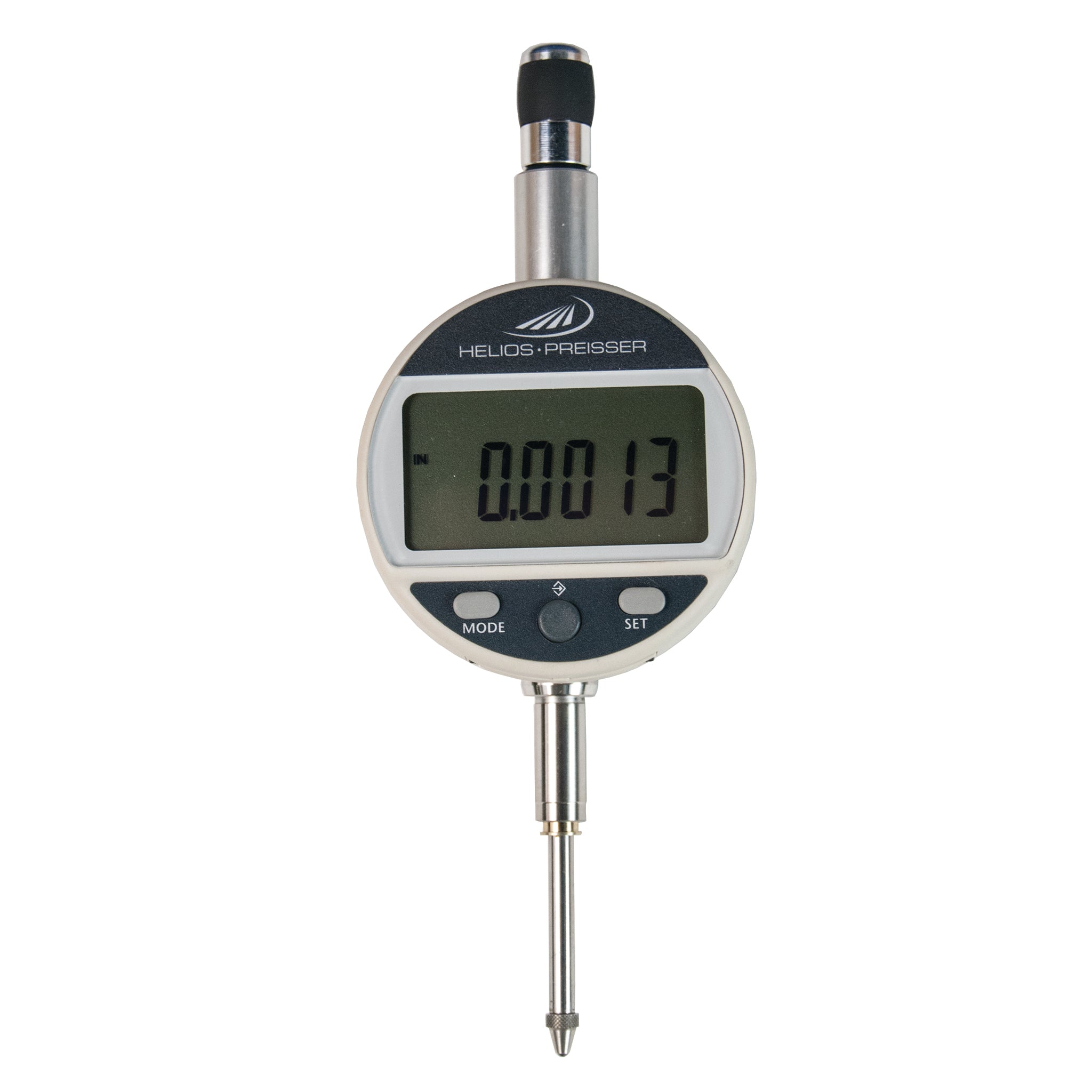

DIGI MET® Digital Electronic Indicator - High Precision Measurement Tool for Industrial & Laboratory Use

Featuring Direct RS232C Output and Swiss SYLVAC electronics. A sophisticated non-contact linear measuring system...can be connected to any computer or printer with no interface necessary. Featuring .00005" (0,001mm) Resolution with ±.00012" Accuracy; Repeatability: 0,003mm/.00012"

Features

Features:

• AGD Group 2, 8mm stem with 3/8" bushing adaptor.
• Rugged polyamid housing
• Stainless shank and spindle
• Tracking speed: 60"/speed
• Display rotates 270°
• Top lifting knob
• Measuring force: 0.6-1.1N
• Low drain lithium battery: 4500 continuous on time for 2-3 years with on/off switch

Functions

Functions:

• Direct inch/metric conversion
• Zero-setting at every point
• HOLD -function
• PRESET - function with dual measuring references to ±99.99999.
• Incremental floating zero. If tool is used fro SPC, the zero button can automatically be configured as a data I/O switch.
• RS232C opto electronic output
