2004-2008 Ford F150 2WD 3.5" Lift Spindles - Heavy Duty Suspension Upgrade Kit for Off-Roading & Truck Customization

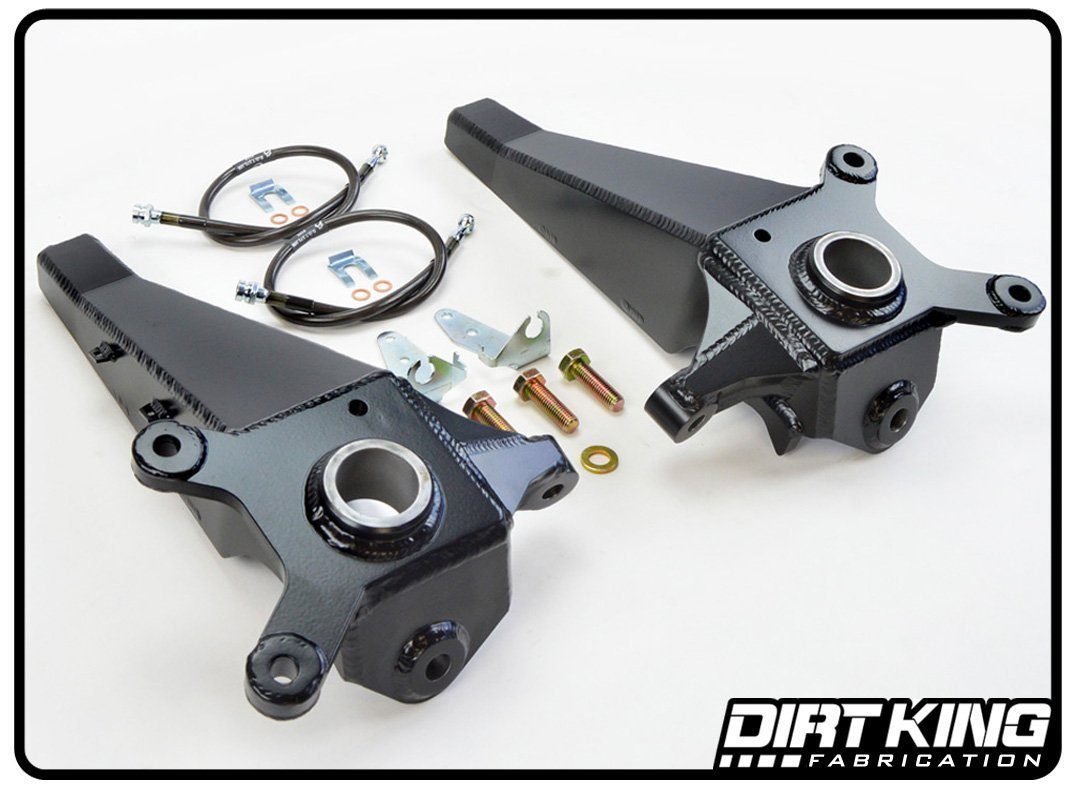

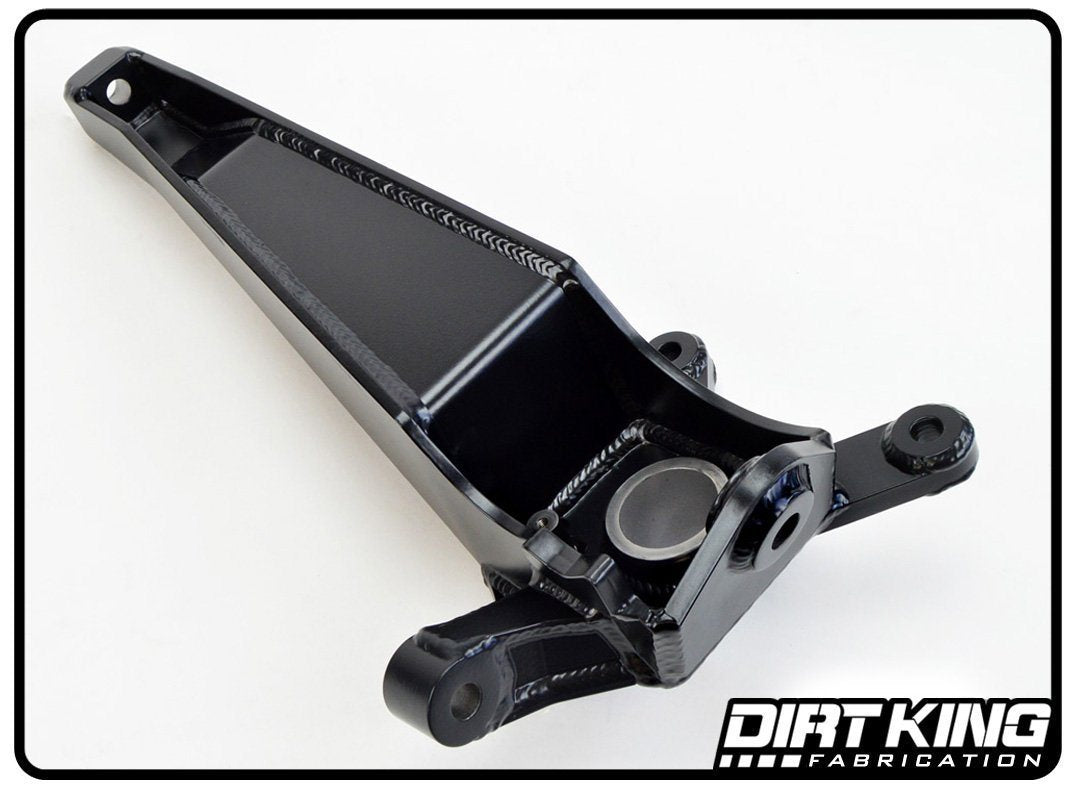

DK-922906-The Dirt King Fabrication for the 2004-2008 2WD Ford F150 fabricated lift spindles raise the front end a true 3.5" without compromising the ride quality. These spindles are currently the only lift spindles available for the 2004-2008 F-150’s that accept both factory or aftermarket upper and lower control arms. The spindles are the CAD designed and constructed from 1/4" thick steel plate.

KEY FEATURES:

• Direct bolt on application
• CAD designed

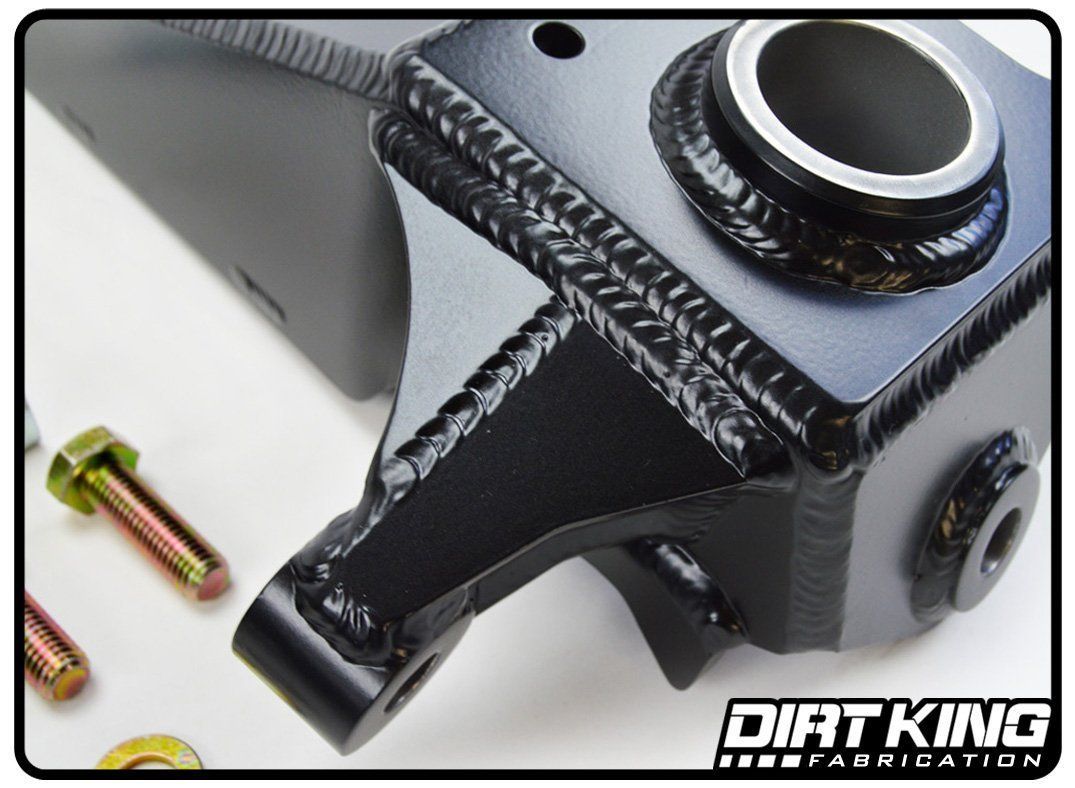

• Professionally MIG welded
• Proudly made in the USA

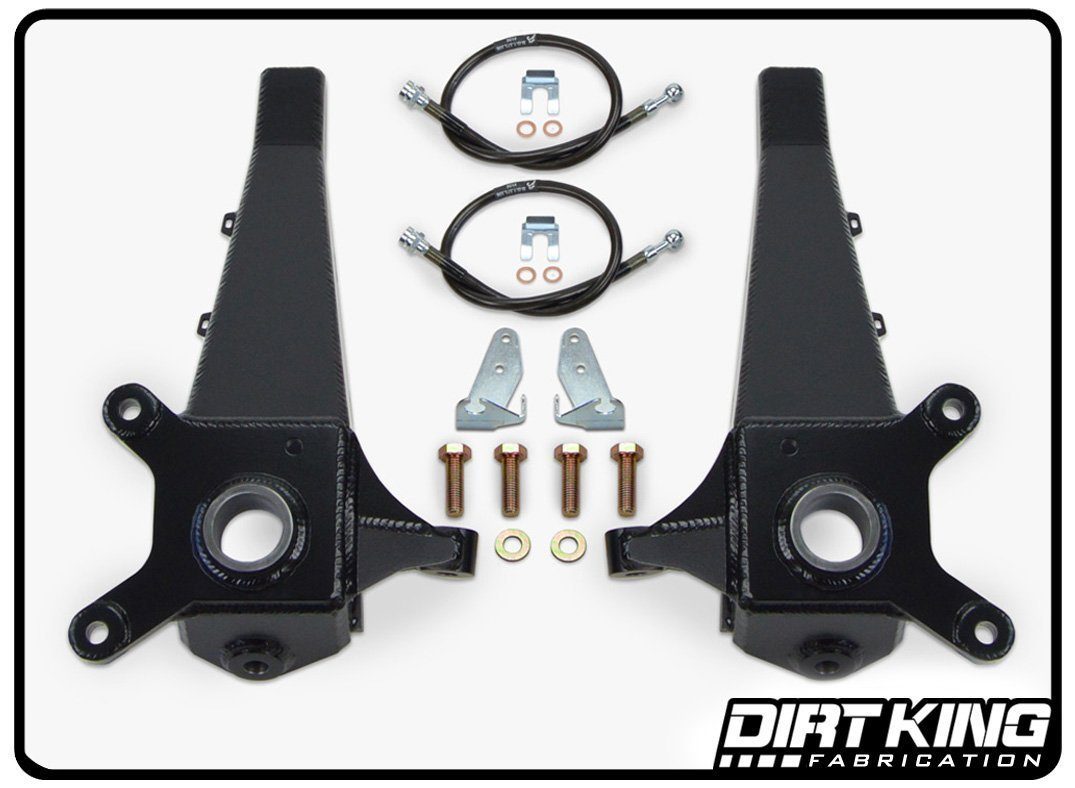

WHAT'S INCLUDED:

• Fabricated lift spindles
• Extended DOT approved brake lines
• Brake line mounting brackets
• Grade 10.9 caliper mounting bolts
• Upper control arm washers

SPECS:

• Amount of Lift: 3.5”
• Track Width: 1.75" wider per side
• Maximum Tire Size: 35”
• Maximum Backspacing: 5.25”
• Minimum Rim Size: 17”

Track Width: The Dirt King lift spindles increase the track width 1.75” per side. Due to the increased width wider fiberglass fenders may need to be installed.

Tire Info: If installing 35” tires modifications to the wheel wells and bumper may need to be made for proper tire clearance.
