2 Digitmaster Logic™ Basic Indicator - Digital Display for Industrial & Home Use - Perfect for DIY Projects, Electrical Testing, and Equipment Monitoring

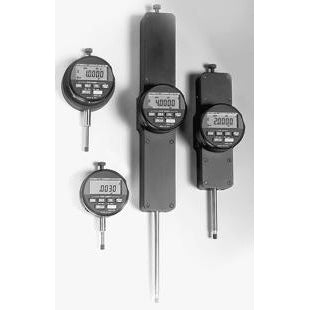

LOGIC-Basic: This model is designed to meet the basic measuring needs of a wide range of users and applications, while incorporating the advanced technology of the Logic electronic digital indicator line. Standard features in the Logic-Basic Series include:

• Incremental measuring mode.
• 7 measuring ranges of .060" to 4.0".
• Inch/Metric display conversion.
• Travel reverse (µ)
• Auto off.
• Floating zero.
• Rotating bezel (up to 270µ).
• Low battery warning.
• Large direct drive LCD display. (.305" character height).
• 3 SPC data output formats.
• Maximum reading hold.
• User selectable resolution.
• 3 power sources.
• AAGD group 2 size for up to .600" travel.
• AGD group 3 size for 1.0" travel.
• Internal and external serial numbers.

Specifications

Accuracy: µ one resolution.

Range: 2"/50mm

Resolution: .00005"/.001mm

Accuracy: µ.00005"/.001mm
