00-06 Toyota Tundra Camburg RACE Long Travel Suspension Kit - Off-Road Performance Upgrade for Desert Racing & Trail Adventures

long travel kit for the 2000-2006 Toyota Tundra

The Camburg Engineering race long travel kit for the 2000-2006 Toyota Tundra is capable of 18-20″ of wheel travel. With billet 2.0 race hubs, Wilwood disk brakes, custom fabricated spindles, and lower A-arms with 1″ uni-ball frame pivots and 1.5″ lower uni-ball for the ball joint, and full heim steering kit.

SPECS:

• LIFT: 3-5 in (front)
• WHEEL TRAVEL: 16-20 in
• TRACK WIDTH: +5 in per side
• WHEEL SIZE: 15-17 in
• MAX BACKSPACING: 15 in = 3.50 in | 17 in = 4.75 in
• TIRE SIZE: 35 in

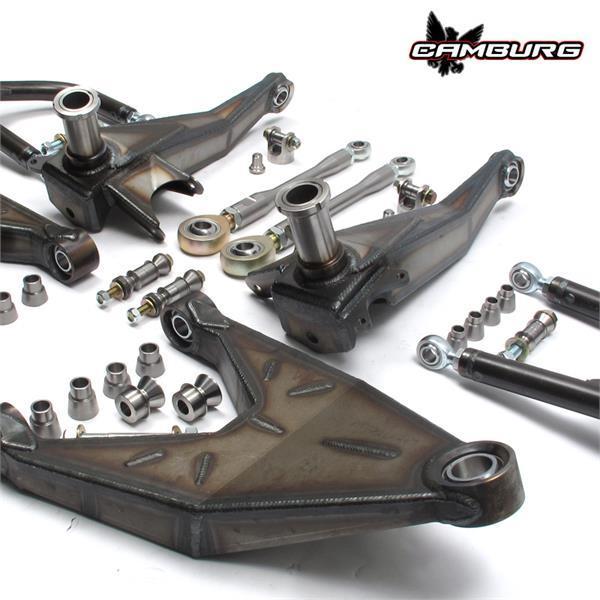

WHAT'S INCLUDED:

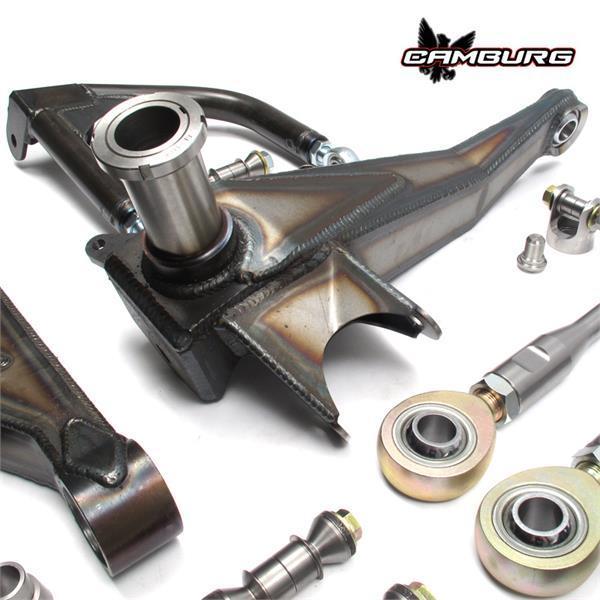

• Heim tubular 4130 upper arms
• Fabricated spindles w/ Camburg 2.0 spindle snouts
• Camburg 2.00 billet hub kit
• Boxed lower arms
• Full heim steering
• Wilwood forged superlite 4 piston calipers w/ BP-20 pads
• Wilwood 12″ x 1.25″ vented rotors
• All heims, Uniballs and hardware

TECH INFO:

• Single Rate Coilover in stock bucket = 16 of wheel travel
• Dual Rate Coilover with custom engine cage = 17-20 of wheel travel
• Trackwidth = 91 (outside of tire to outside of tire with KMC
• Enduro Bead-Locks 35 tires on 17 x 8.5 wheels with 4.75 of backspacing)
