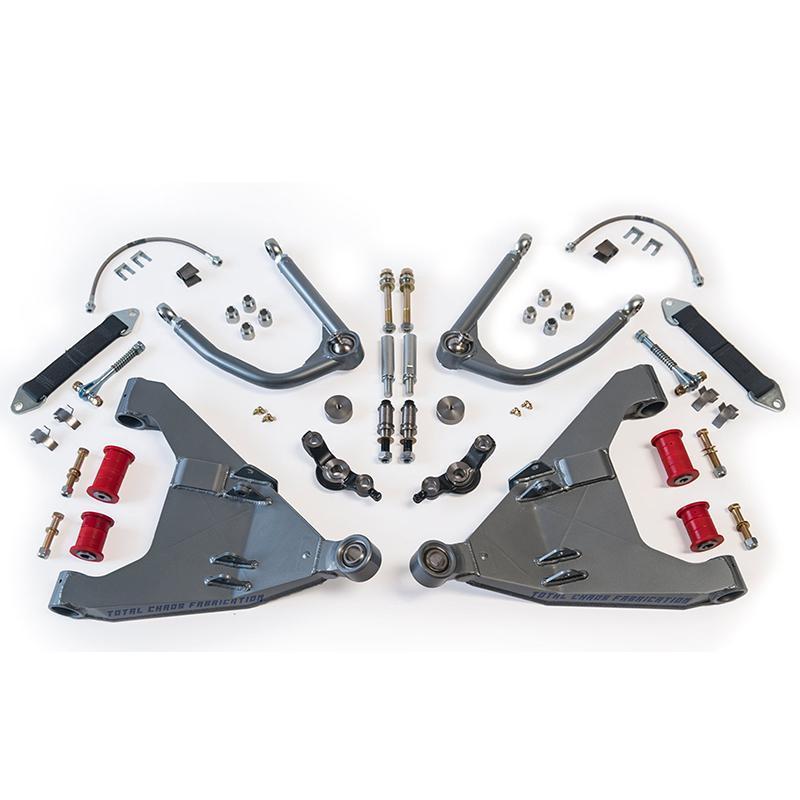

This 3.5" Long travel kit for the 2007-2009 Toyota FJ Cruiser features boxed and internally gusseted 3.5" extended lower control arms bolt to factory mounting locations and are pre tabbed for dual shock capability.
KEY FEATURES:
- DAKAR race proven IFS long travel system.
- 3.5" extended 4130 chromoly tubular upper arms bolt to factory control arm mounting locations.
- Upper and lower ball joints are replaced with 1" uniballs for maximum wheel travel and component strength.
- TOTAL CHAOS includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise.
- A secondary external bypass shock can be installed to increase dampening and tune-ability.
- Bolt on lower uniball adapters are CNC machined from billet steel and include shortened factory hardware for ease of installation.
- Spring rate options offer the ability to customize your ride for your specific application allowing you to custom tune the vehicle for specific terrain or desired performance.
- Adjustable limit strap clevis' are included so that you can properly limit the suspensions droop wheel travel and make necessary adjustments during the life of the limit strap.
- Stainless steel DOT braided brake lines, TC custom 17-4 stainless hi-misalignment spacers and all grade 8 mounting hardware is included.
- TC 4340 custom extended axles reuse factory inner and outer CV's to retain 4wd.
(axles are sold separately and not included with the kit) - 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
- Hand crafted in the U.S.A.
SPECS:
| Lift (in.) | Travel | Tire Size | Track Width Increase |
| 3-4" | 13" w/ 4WD | 33" or 285 | 7" |

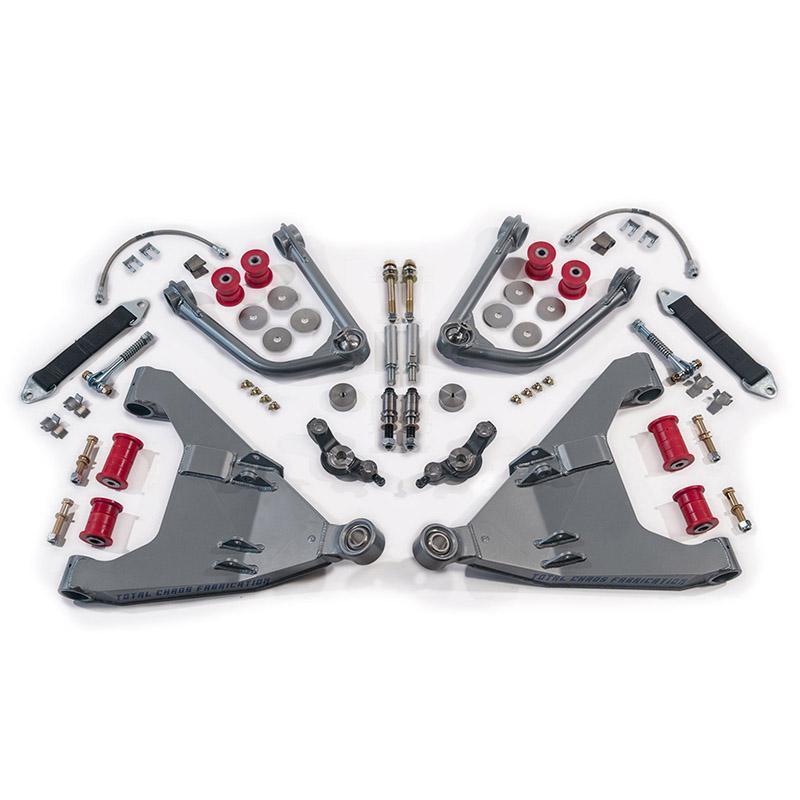

OPTIONAL HEIM PIVOT UPGRADE:
- TC includes 3/4" chromoly lined heim joints for the pivots.
- 4130 chromoly tubing heim upper control arms are fully adjustable to allow maximum tuning of caster and camber.
- Zero bushing deflection.
TECH NOTES:
- 2.5" long travel specific coil over shocks bolt into the factory coil bucket location. Extended travel shocks are too short and will not work.
| BRAND | COILOVER PART# | BYPASS PART# |
| FOX | 880-02-953 | 982-02-954 |
| KING | TC5119-03 | TC1119-34 |
- Fiberglass fenders are required.
