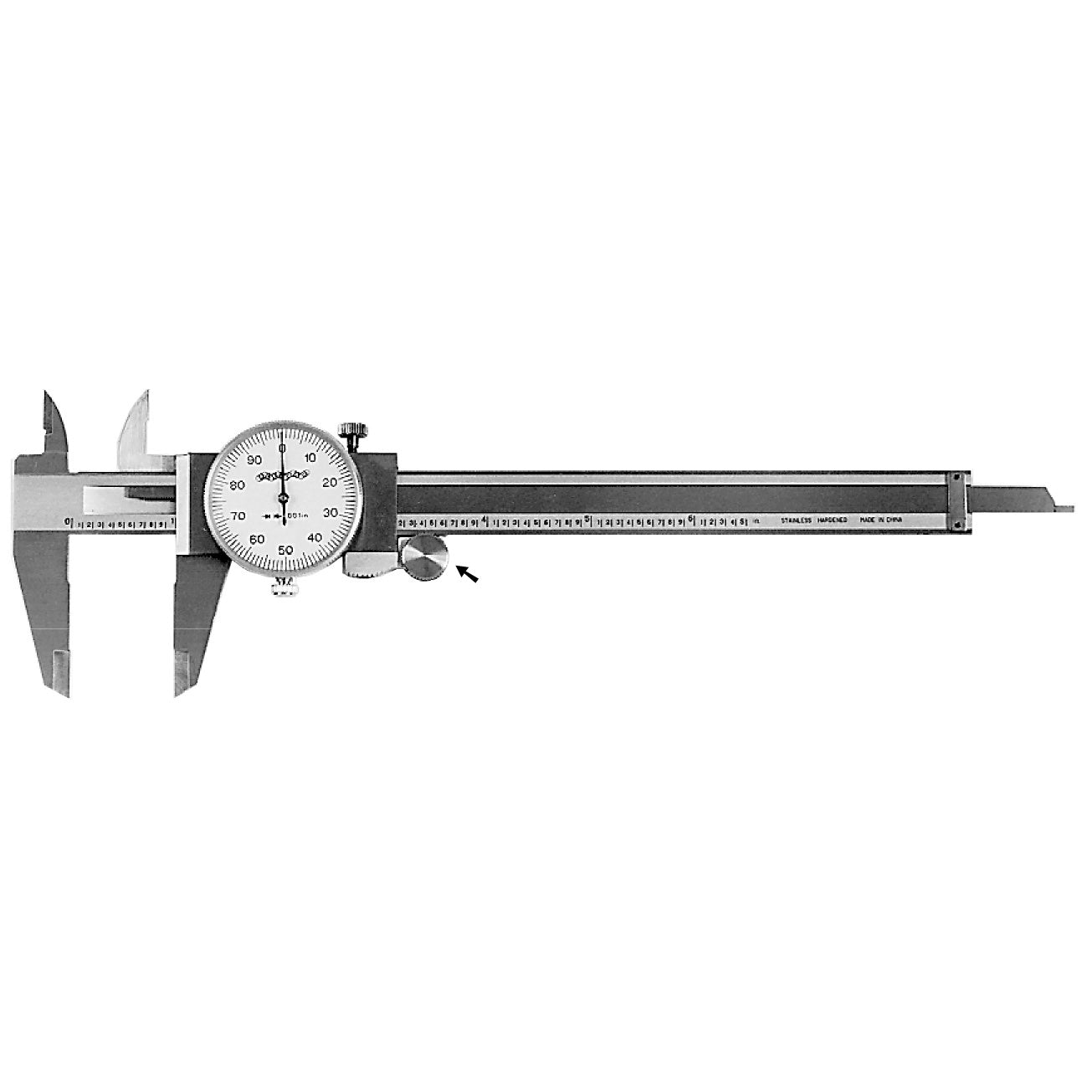

Now Available in both Inch and Metric Models.
Inch Models Available in 4", 6", 8" and 12" Ranges.
Metric Models Available in 150mm, 200mm and 300mm Ranges.
Details
Features a thumbroll for rapid setting and easy adjustment.
Smooth, precise feel and accuracy.
Stainless Steel - Hardened and Precision Ground Throughout.
Features
- Dial hand completes one revolution per each .100"; large dial means wider-spaced, easy-to-read graduations.
- Inverted covered rack helps prevent excess dirt accumulation in rack gear teeth to ensure long caliper life.
- Exclusive dual pinion drive mechanism reduces wear on rack and pinion.
- Adjustable dial reads directly to .001"/0.02mm.
- Features outside, inside and depth measurements.
- Beam is graduated in .10" increments for easy reference points.
- Self-contained movement eliminates gear misalignment.
- Hardened stainless steel throughout with measuring faces precision-ground and micro-lapped for exceptional accuracy.
- Knurled lock assures precise settings.
- Accuracy = .001"/0.02mm.
- Depth of jaws: Model No. 16226 = 1 3/16", 16287 = 1.6"; Model No. 16279 = 2". Extra length of jaws ensures squareness & perfect alignment.
- A raised bearing surface for sliding jaw eliminates wear & defacement of graduations on the beam.
- Price includes a fitted case.
