2004-2015 Nissan Titan Mid Travel Suspension Kit - Off-Road Performance Lift System for Desert Racing & Trail Adventures

Dirt King Fabrication's mid travel kit for the 2004-2015 Nissan Titan was developed to drastically improve the Nissan Titan's off-road handling without compromising its day to day driving characteristics. This suspension system allows for 10.5” of travel and accepts up to a 35” tire. The kit is compatible with 2WD and 4WD models. We’ve upgraded the lower arm outer pivot to heavy duty Moog ball joints and 1” uniballs for the upper arm outer pivot. This allows for superior strength and increased articulation. The suspension system also accommodates for bump stops to be used with the coil overs if desired. This kit is CAD designed, thoroughly tested, and 100% made in America.

FITMENT:

• 2004-2015 Nissan Titan 2WD / 4WD
• 2016+ Nissan Titan (Non-XD) 2WD / 4WD *This suspension will not work with the 2016 or newer Titan XD models.

KEY FEATURES:

• Bolt on application, minimal modifications required
• Utilizes American made FK bearings
• 4130 chromoly upper arms
• ¾” heims for the UCA’s
• Delrin bushings for the LCA’s
• Zinc plated inner bushing sleeves
• Grease fittings for easy servicing
• 3/16" & 1/8” boxed plate construction
• Internally ribbed with extrusions for weight reduction
• Bump stop plating
• Limit strap tabbing

SPECS:

• Wheel Travel: 10.5”
• Amount of Lift: 0-3”
• Track Width: Stock Width
• Maximum Tire Size: 35”
• Maximum Back Spacing: 4.75”
• Minimum Rim Size: 17”
• Bump Stop Size: 2.0” x 2.0”
• Coil Over Shock Size with Shock Hoop Kit: 2.5” x 8”
• Coil Over Shock Size: King OEM replacement shocks with the options below

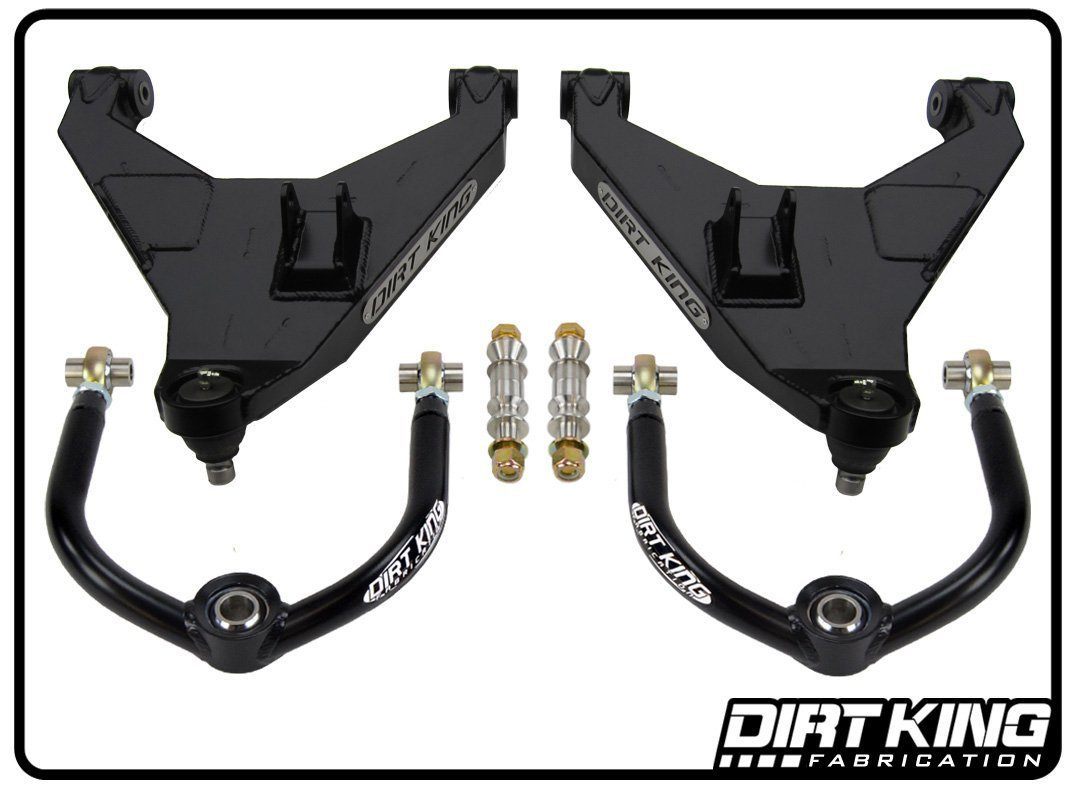

WHAT'S INCLUDED:

• Chromoly upper control arms
• Boxed plate lower control arms
• 17-4 stainless steel misalignment spacers
• Grade 8 mounting hardware
