2005-2015 Toyota Tacoma Long Travel Suspension Kit - Off-Road Upgrade for Enhanced Performance & Durability | Perfect for Desert Racing, Rock Crawling & Overlanding Adventures

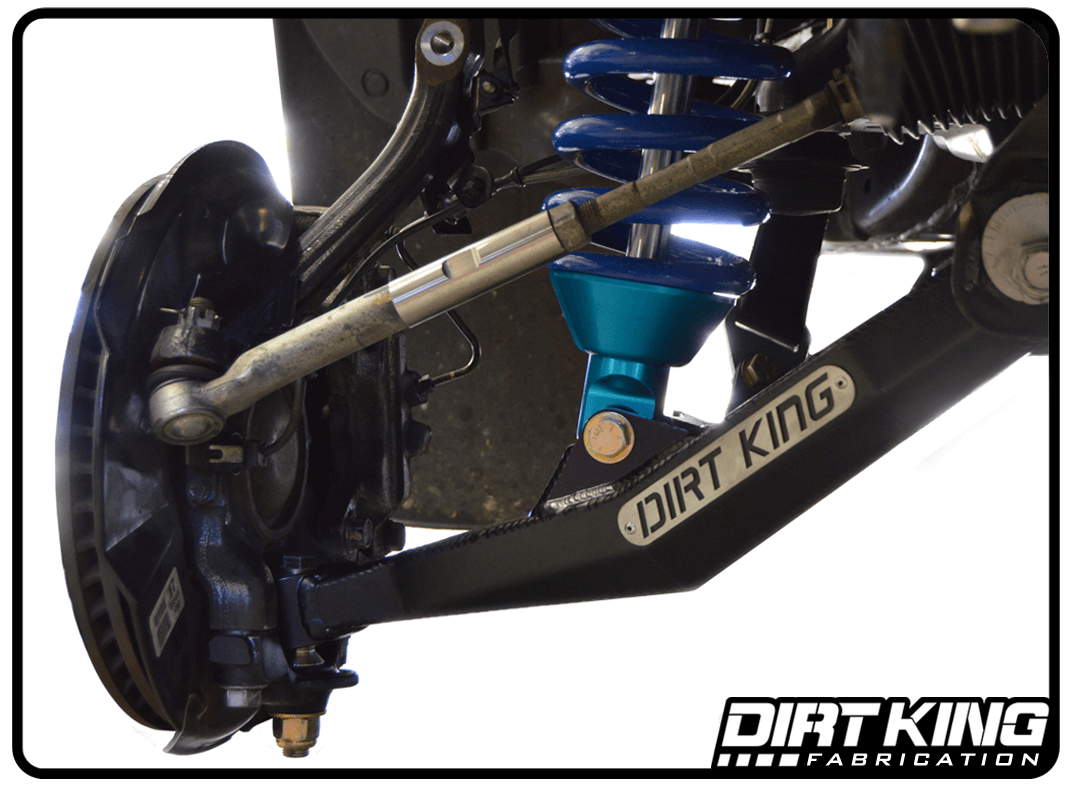

The Dirt King Fabrication long travel kit for the 2005-2015 Toyota Tacoma was developed to drastically improve the Toyota Tacoma off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5” of travel and accepts up to a 35” tire. The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts. Dirt King upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. Compared to the competition we’ve gained several inches of ground clearance by mounting the lower arms in the factory location instead of below it. This kit is CAD designed, thoroughly tested, and 100% made in America.

TECH NOTE:

The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts.

KEY FEATURES:

• Bolt on application, minimal modifications required

• Utilizes American made FK bearings
• 4130 chromoly uniball cups
• Polyurethane bushings for the UCA’s
• Delrin bushings for the LCA’s
• Zinc plated inner bushing sleeves
• Grease fittings for easy servicing
• 3/16" and 1/8” boxed plate construction
• Internally ribbed with extrusions for weight reduction
• Bump stop plating
• Limit strap tabbing
• Bypass Tabbing

SPECS:

• Wheel Travel: 13.5”
• Amount of Lift: 0-4”
• Track Width: 3.5” wider per side
• Maximum Tire Size: 35”
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 16”

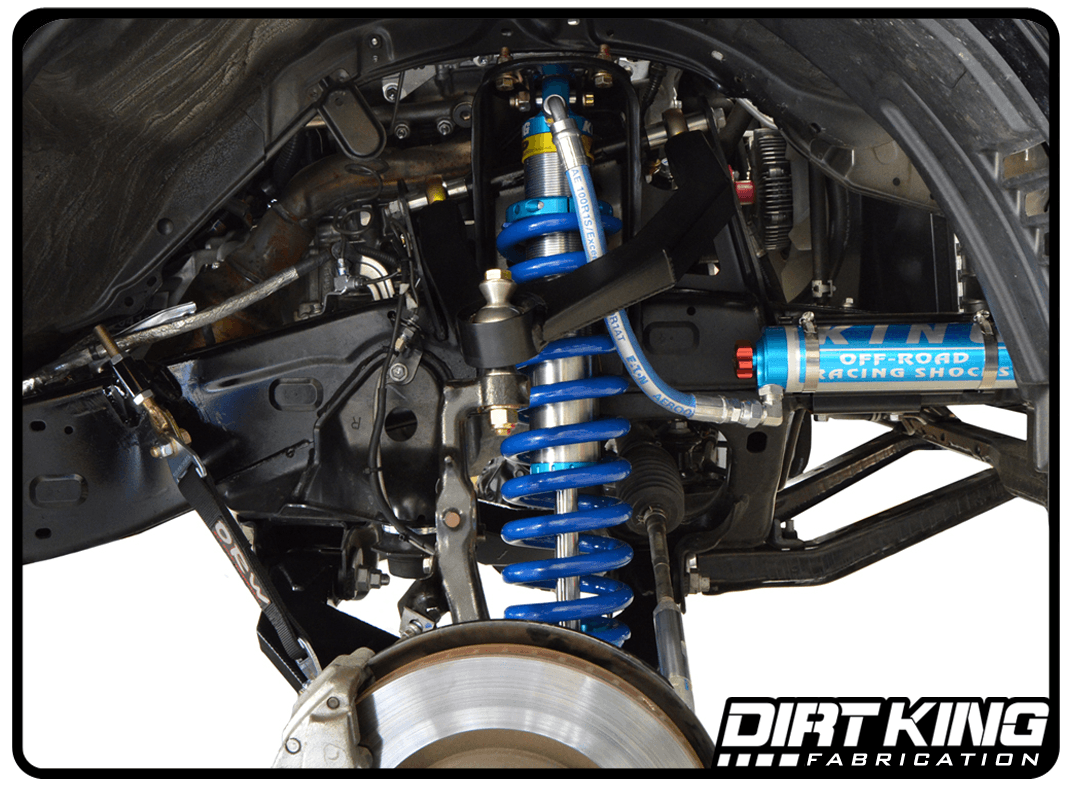

• Coil over Shock Size: 2.5” x 8”
• Bypass Shock Size: 2.5” x 8”
• Bump Stop Size: 2.0” x 2.0”

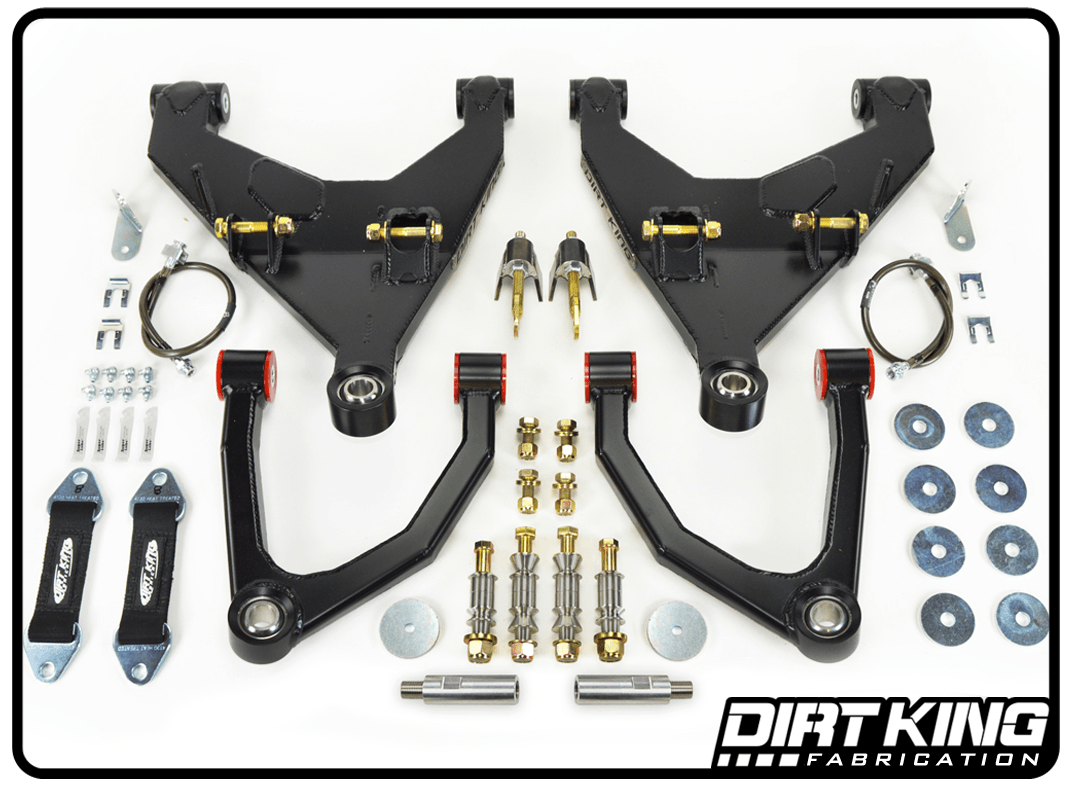

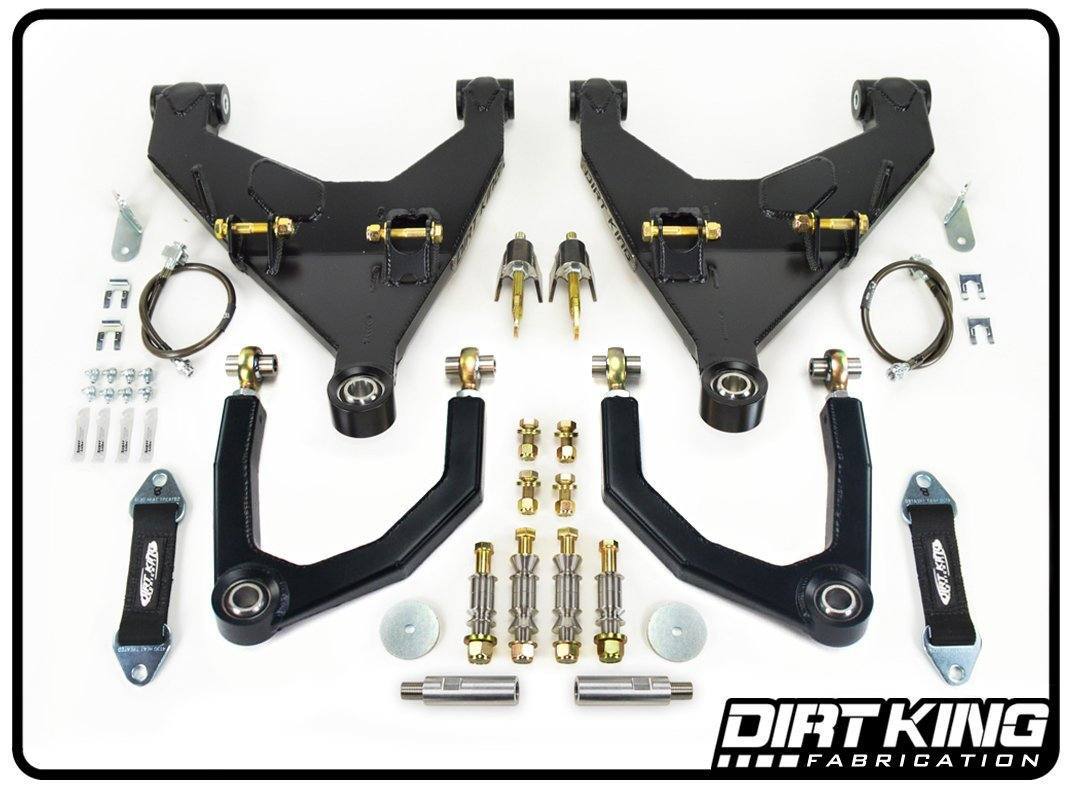

WHAT'S INCLUDED:

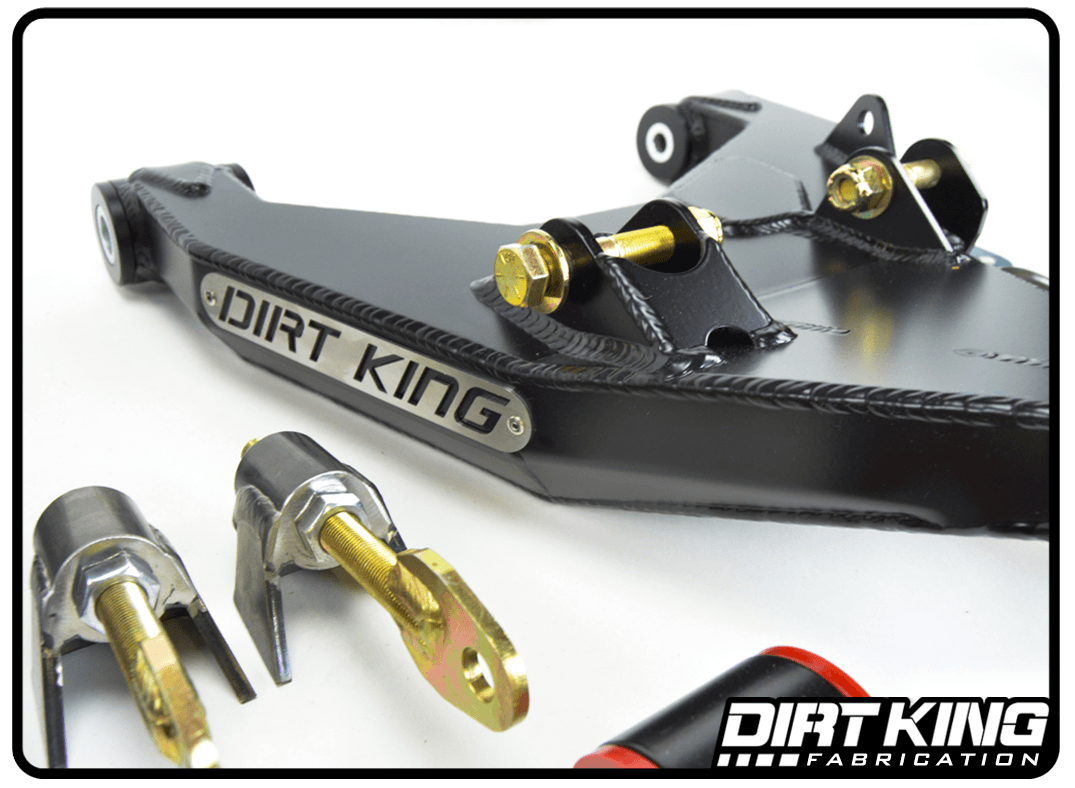

• Boxed plate upper control arms
• Boxed plate lower control arms
• 8" quad wrapped limit straps
• Weld on adjustable limit strap mounts

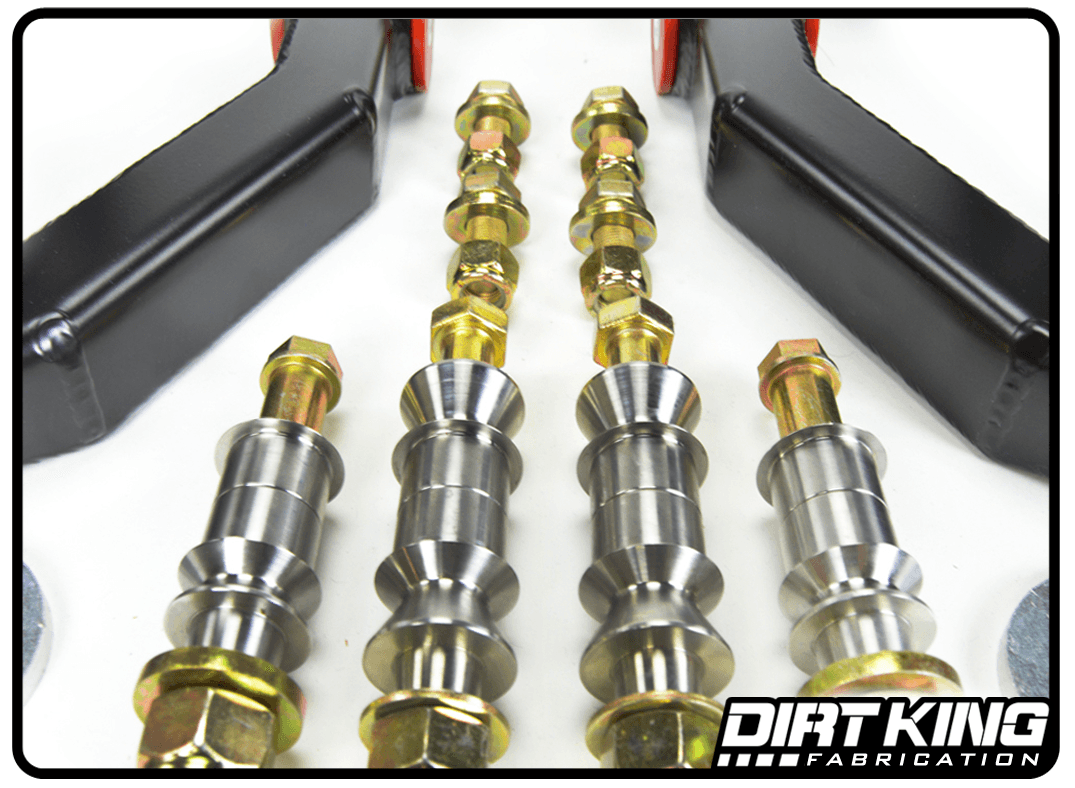

• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel tie rod extensions
• DOT approved extended brake lines
• Grade 8 mounting hardware
• Zinc plated bushing washers
• Bump stop spacers
