2022-2024 Toyota Tundra FOX 3.0 Factory Race RR Coilovers & Rear Shocks (1-2 Inch Lift Kit) - Off-Road Performance Upgrade for Baja Racing & Trail Adventures

Features:

FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Experience the support and confidence you need while driving high-speed through rugged terrain.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

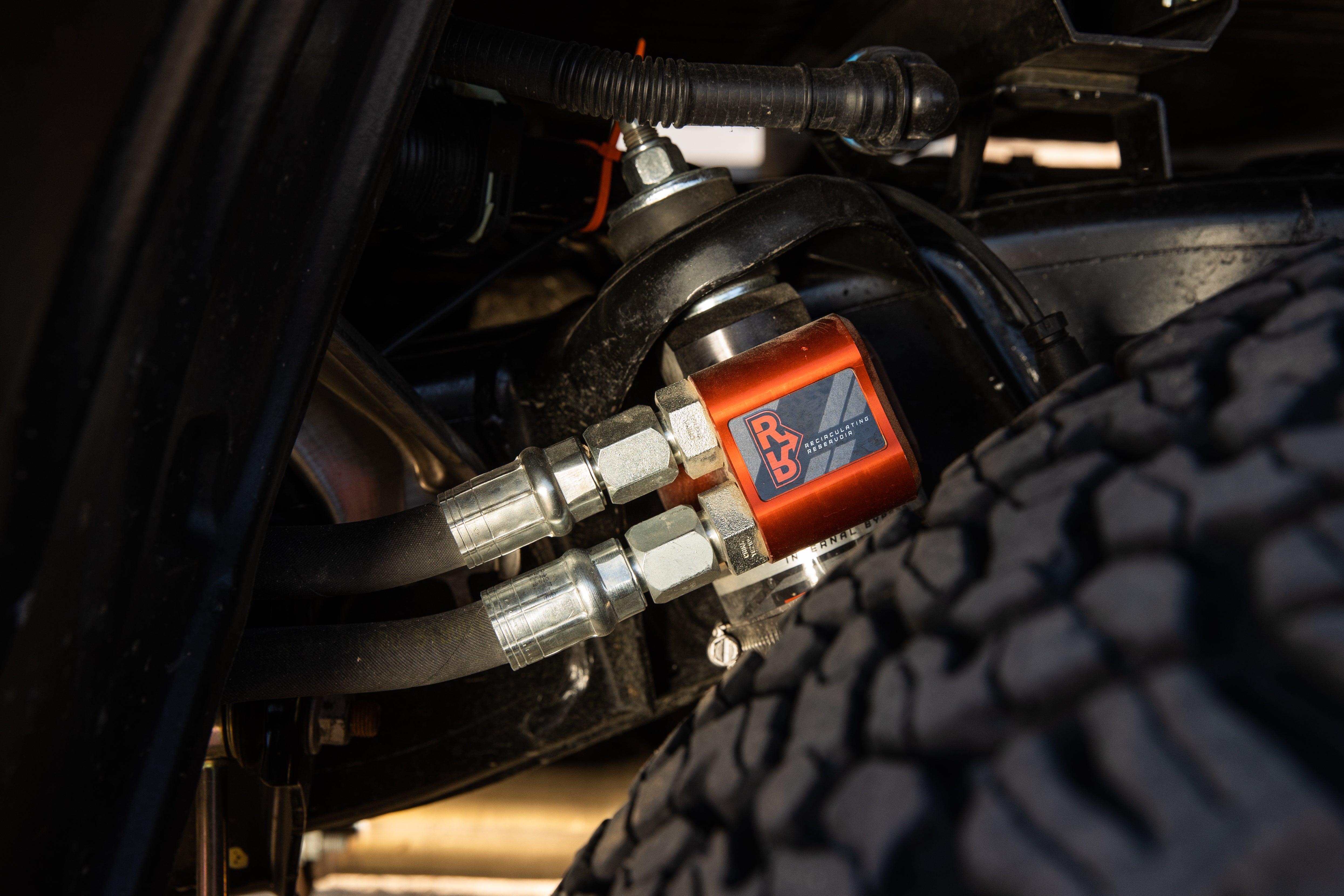

A Recirculating Reservoir Bridge enables the continuous exchange of shock fluid between the finned external reservoir and body using a checked port, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. Dial in your Tundra for load, environment, and driving style with the DSC adjuster.

Included Components:

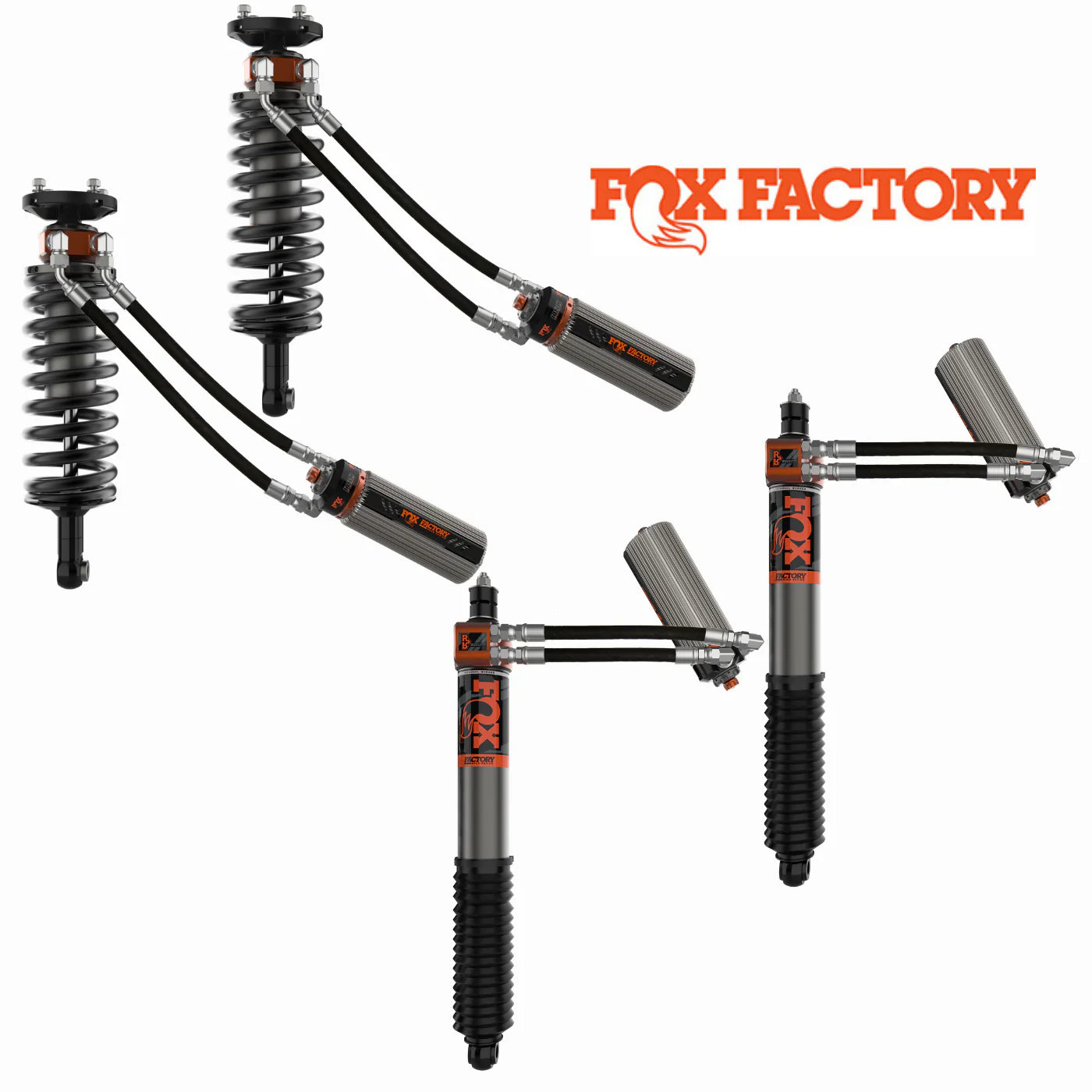

1. FOX's 3.0 ELITE SERIES Remote Reservoir Coilovers & Rear Shocks:

   • 3.0" impact-extruded and CNC machined 6061-T6 Type III anodized aluminum body
   • Patented, internal bypass design
   • 7/8" stainless steel shafts
   • Vehicle-specific tuning maximizes performance
   • Redundant sealing pack system: main seal, wiper seal, scraper seal

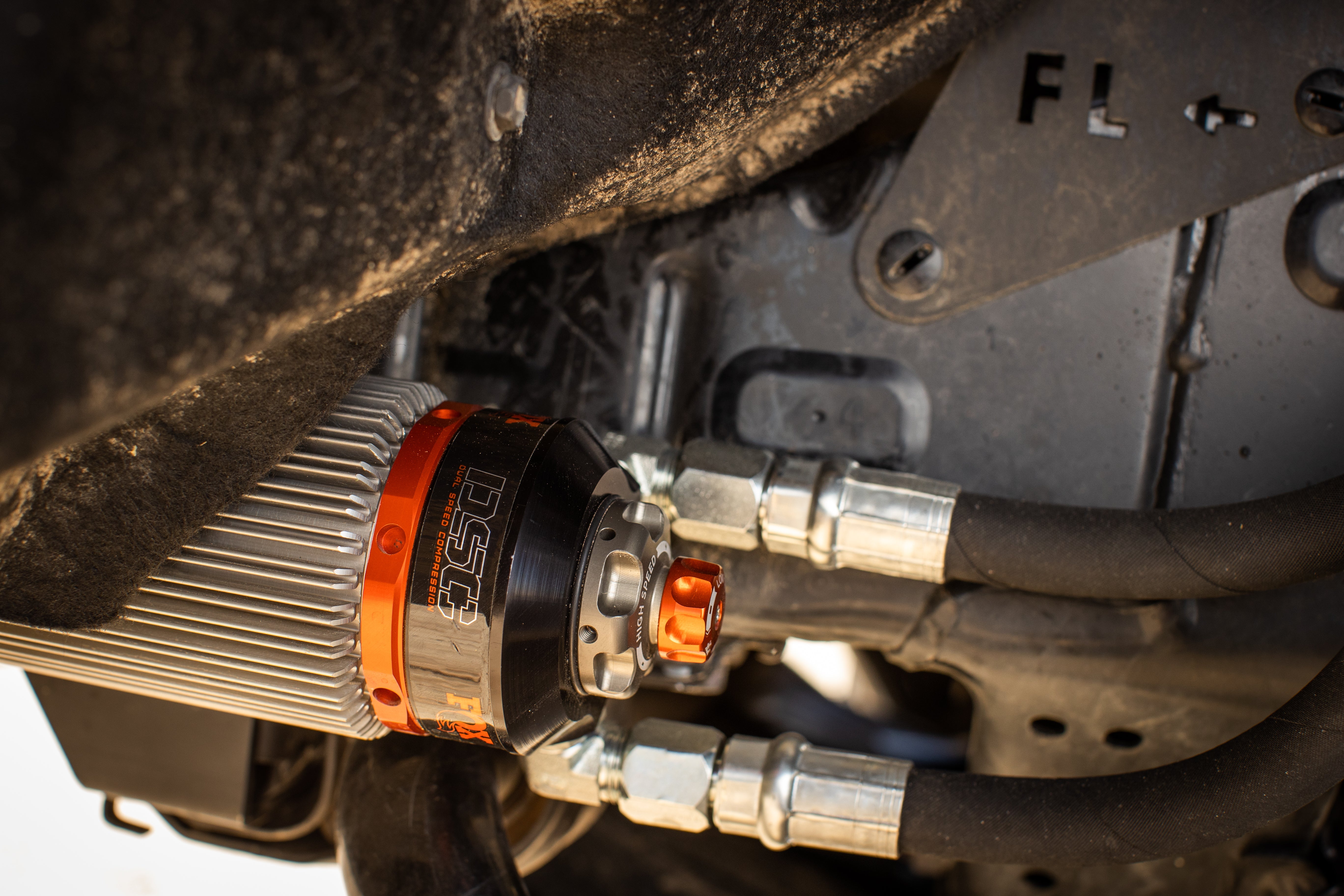

   • Finned reservoirs, with Dual Speed Compression (DSC) adjuster
   • Requires Upper Control Arm
   • Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle)
   • 1-2" REAR LIFT WILL USE FOX-883-26-142
