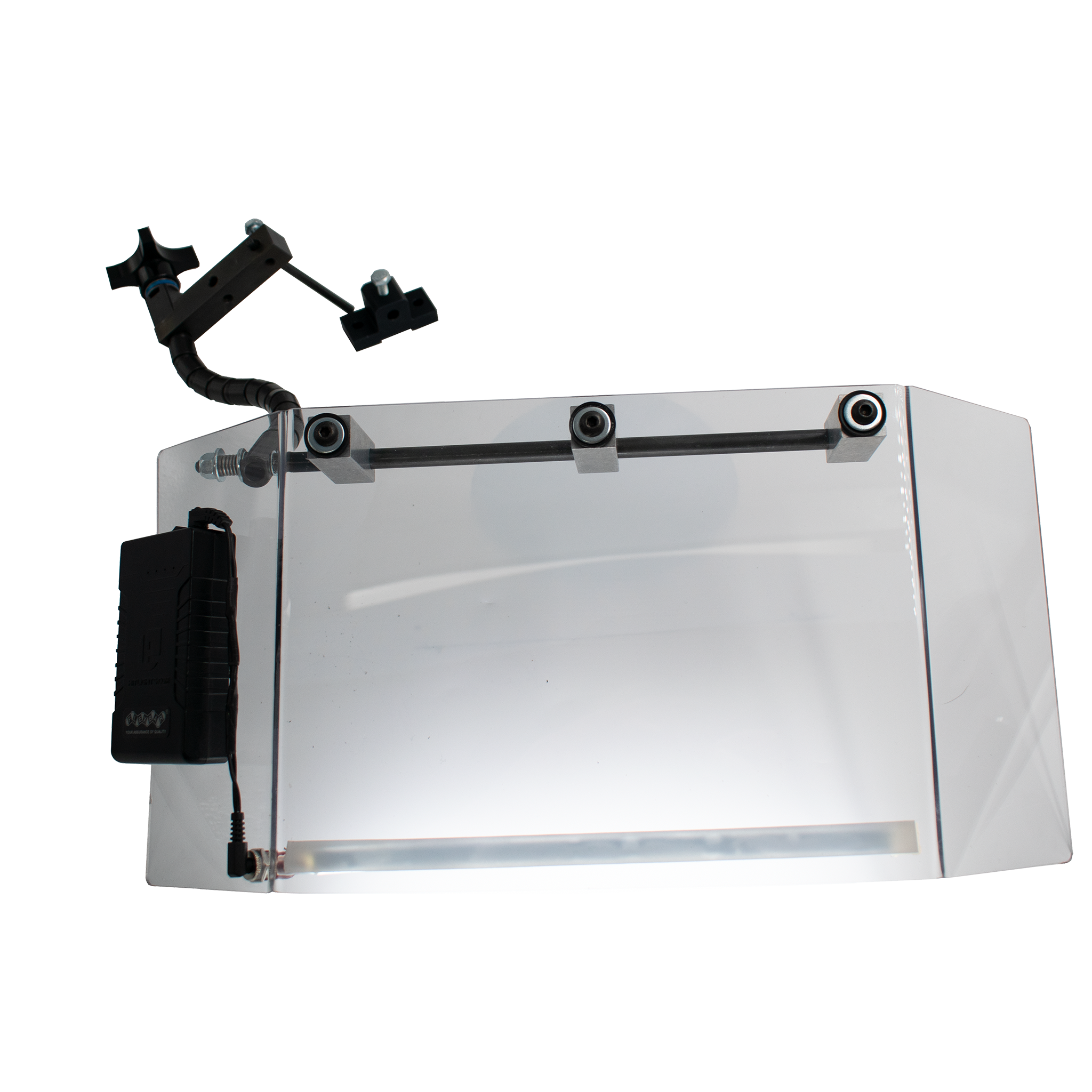

Protection with Productivity and Built-In Illumination
Description
Down to Earth Features!
- Flexbar arm permits setting of Visorguard at the correct height and angle for each setup.
- Flip shield up to load part and down for machining.
- Special spring-loaded shaft makes shield stay put - no springback.
- Wing-shaped shield protects workers at adjacent machines.
- Flexbar locks rigid; has stainless air-craft grade tension cable.

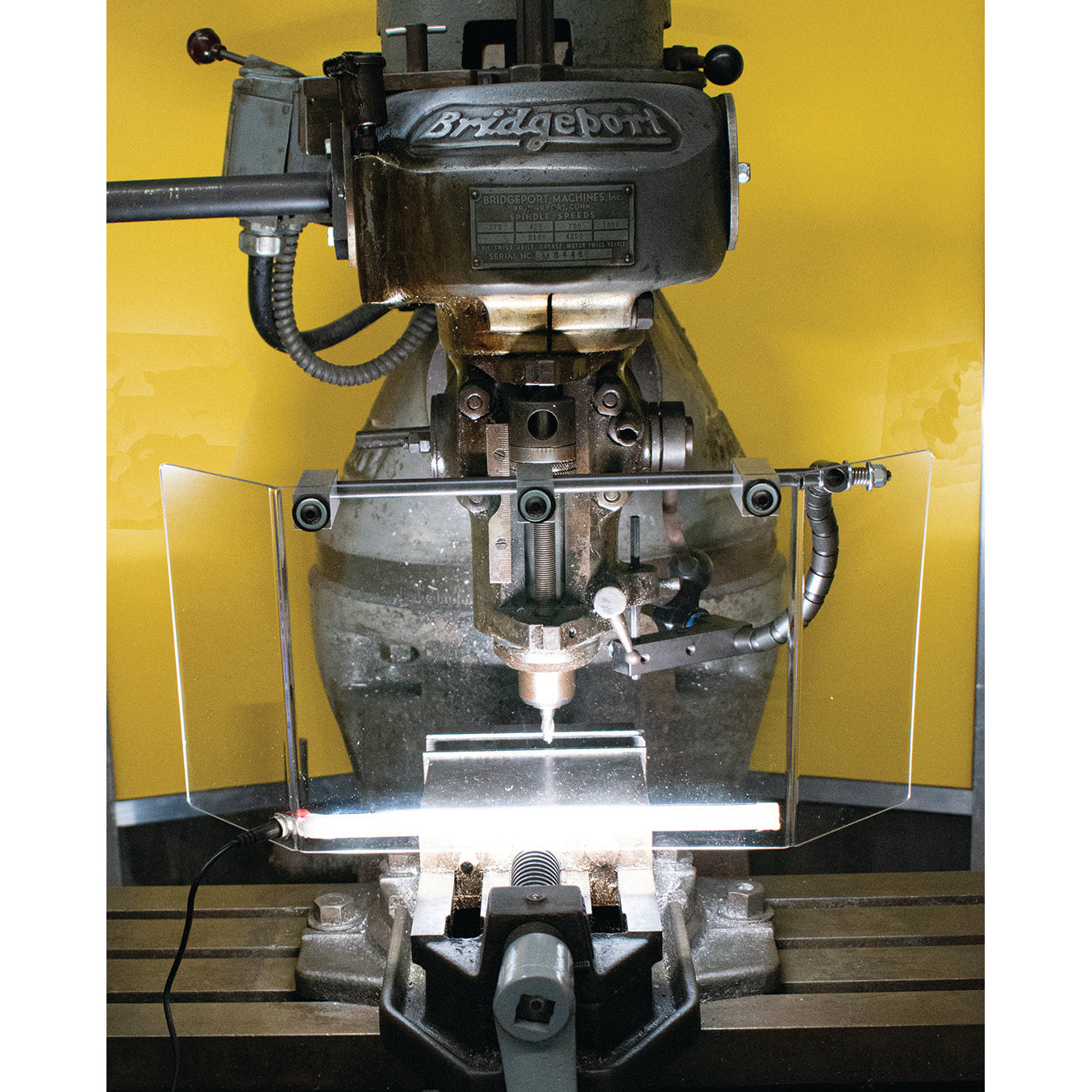

- Can be installed in minutes on CNC mills, conventional milling machines and others.
Unique Built-in LED's provide super bright illumination
- 10" long continuous LED strip puts out 6000K natural white light
- 170° beam angle, Auto-Diffuse with no LED light hot spots
- Water and coolant resistant
- System can be powered by 12V 2500mAh Rechargeable Battery Pack with on/off switch providing 4 hours of light per charge (Model No. 13171), or by a 12V direct wire wall transformer with on/off switch - 8ft. cable (Model No. 13170).
Dimensions
Dimensions:
- Shield size - 16" wide x 8" high.
- Flexbar Arm - 10" long.
- Mounting - 1.62" Center to center hole pattern.
Product Details
Model No. 13171 -Visorguard-LED™ with 12V rechargeable battery pack, jumper cable and 12V charger/wall transformer
