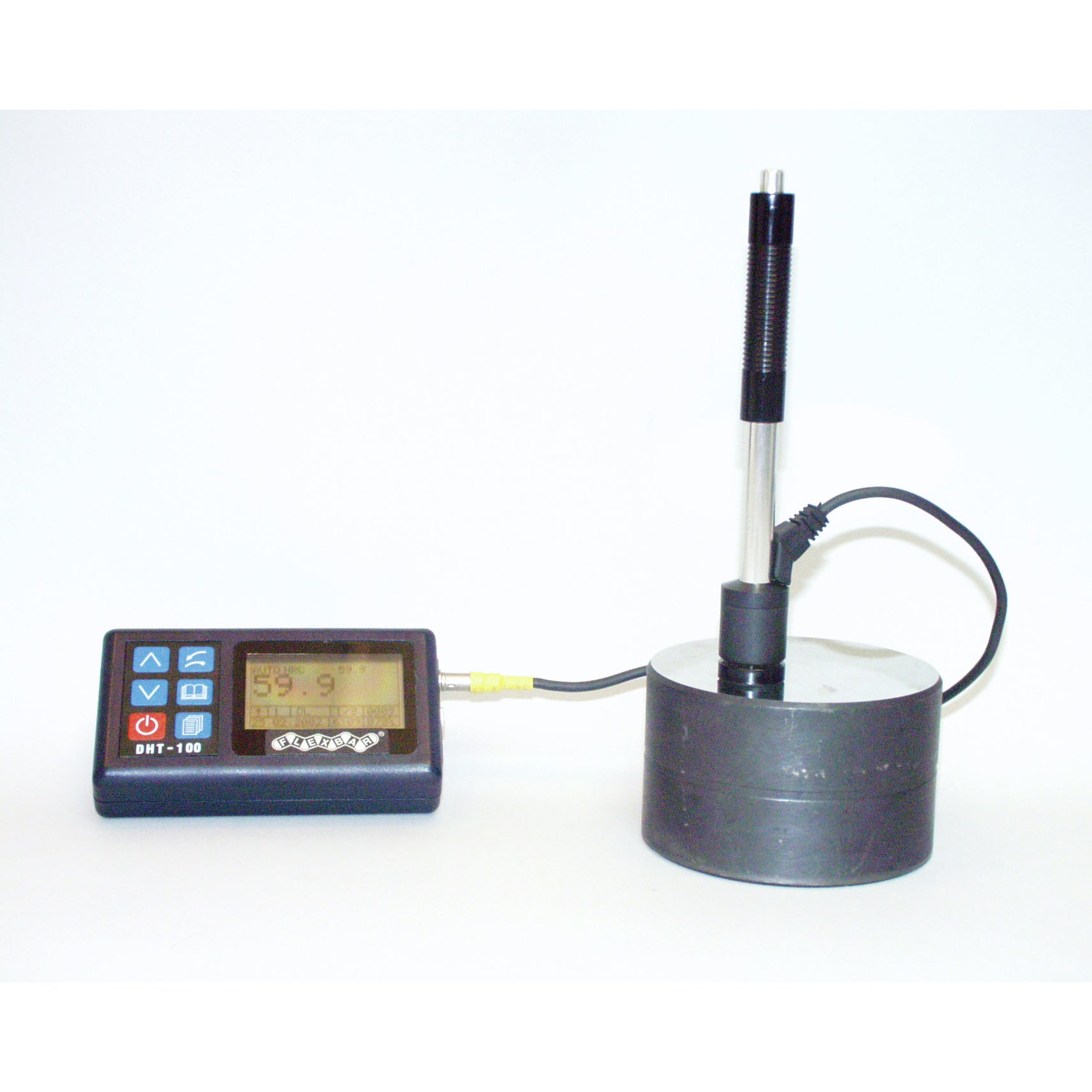

Portable Hardness Tester - Flexbar Advanced Digital Durometer for Metal, Plastic & Rubber | On-Site Quality Control & Material Testing

State-of-the-art, digital tester is menu driven, multi-functional unit with extended memory and RS 232 output capabilities. This unit can perform tests that easily convert every popular hardness scale, including Rockwell, Brinell, Vickers, Shore, etc. We equip this tester with everything needed to begin testing as soon as the package is opened. No tool ups required!

Functions

• Easy to read menu operation
• Large LCD display with back light
• RS 232 interface
• Automatic conversion to Rockwell, Brinell, Vickers and Shore
• Automatic mean value
• Data storage capacity

Operation

1. Load the impact body
2. Place the impact body on your test piece
3. Push the button to begin testing

Specifications

Accuracy +/- 0.5% (referred to L=800, repeated accuracy: +/- 4L units)

Measuring range 200-960 HL

Materials: steel & cast steel, alloy tool steel, stainless steel, gray cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy

Battery type: AAA alkaline (2)

Operating temperature: 5-104 degrees F

Dimensions: 108x62x25mm

Weight: 230 grams

Standard Accessories

• Base Instrument
• Impact Device D
• Calibrated Test Block
• Custom Carry Case
• Cleaning Brush
• Operation Manual

Optional Accessories

• Micro Printer
• Impact Devices: DC, D+15, DL, G, C
• Software
• Special Support Rings
• Printer Cable
