Lexus GX470 Suspension System Stage 2 - Heavy Duty Off-Road Lift Kit for Lexus GX470 2003-2009 | Perfect for Rock Crawling, Overlanding & Off-Road Adventures

Icon Vehicle Dynamics Stage 2 suspension system for the 2003-2009 Lexus GX470 uses the same components as the Stage 1 system with a few simple changes and additions. The 2.5 Series coilover shocks used in this system are the Extended Travel version, offering increased wheel travel that will enhance your on and off-road performance even more so than the standard travel units. Since these shocks do provide more suspension travel, they require the use of an ICON upper control arm.

KEY FEATURES:

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" shafts
• Bolt-on system means no cutting or welding necessary for install

DELTA JOINT OVERVIEW:

This system features upper control arms with ICON's patent pending Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

WHEEL AND TIRES FITMENT INFO:

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 8.5” Wide, 4.75” Backspace
• Aftermarket Tires: 33x11.50

SYSTEM COMPONENTS:

• 58645 (QTY: 1) | 07-09 FJ/03-09 4RNR/03-09 GX 2.5 VS IR COILOVER KIT
• 52700 (QTY: 1) | 07-UP FJ/03-UP 4RNR/03-UP GX REAR 2" SPRING KIT
• 56110 (QTY: 1) | GX460/GX470 REAR COIL CONVERSION KIT
• 56505 (QTY: 2) | 07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.0 VS IR
• UPPER CONTROL ARM OPTION

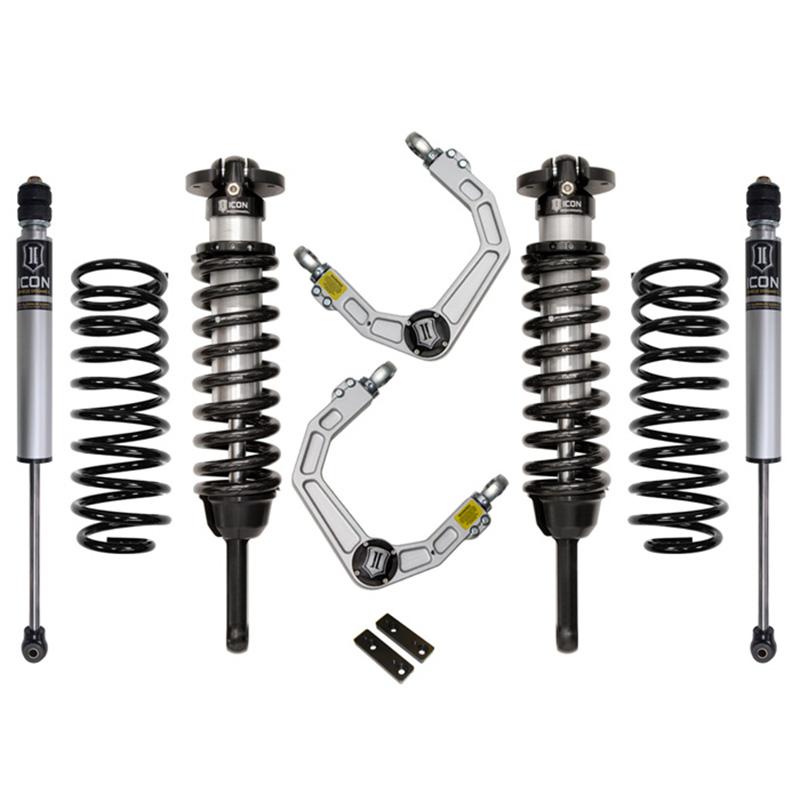

• 58551DJ (QTY.1) | 2010-CURRENT LEXUS GX460 BILLET UCA DJ KIT

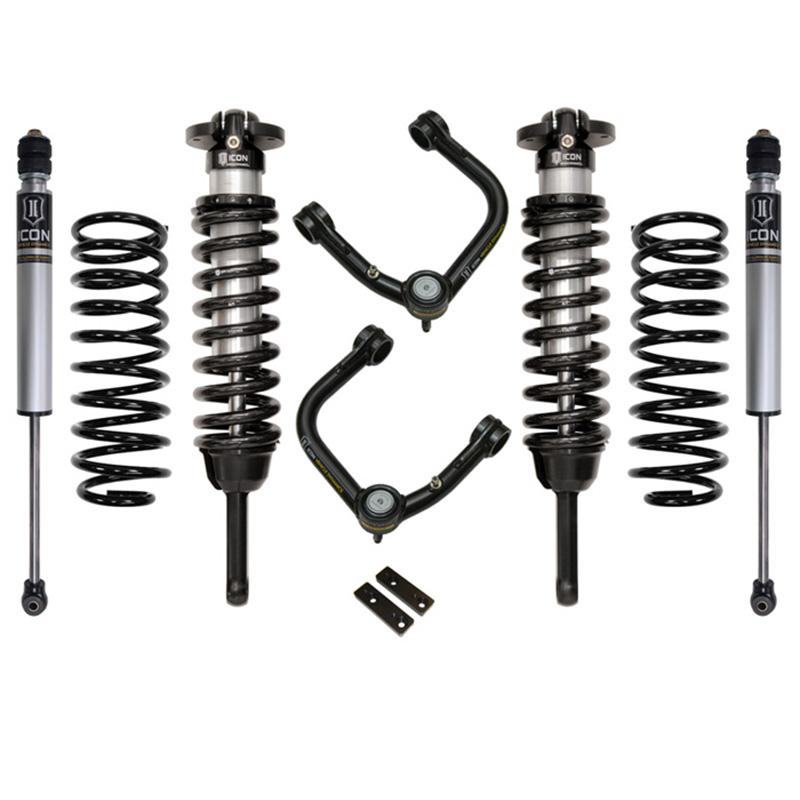

• 58451DJ (QTY.1) | 2010-CURRENT LEXUS GX460 TUBULAR UCA DJ KIT

TECH INFO:

• GX470 models equipped with KDSS require ICON rear track bar (Part # 54200)

LEXUS GX FITMENT DETAILS:

• Rear Air Ride Configurations
• 2003-2009 GX470 ALL TRIMS | Air Ride Rear
• KDSS Configurations
• 2003-2004 GX470 | No KDSS available
• 2005-2009 GX470 SPORT | KDSS standard
• 2005-2009 GX470 NON-SPORT | KDSS available as option
