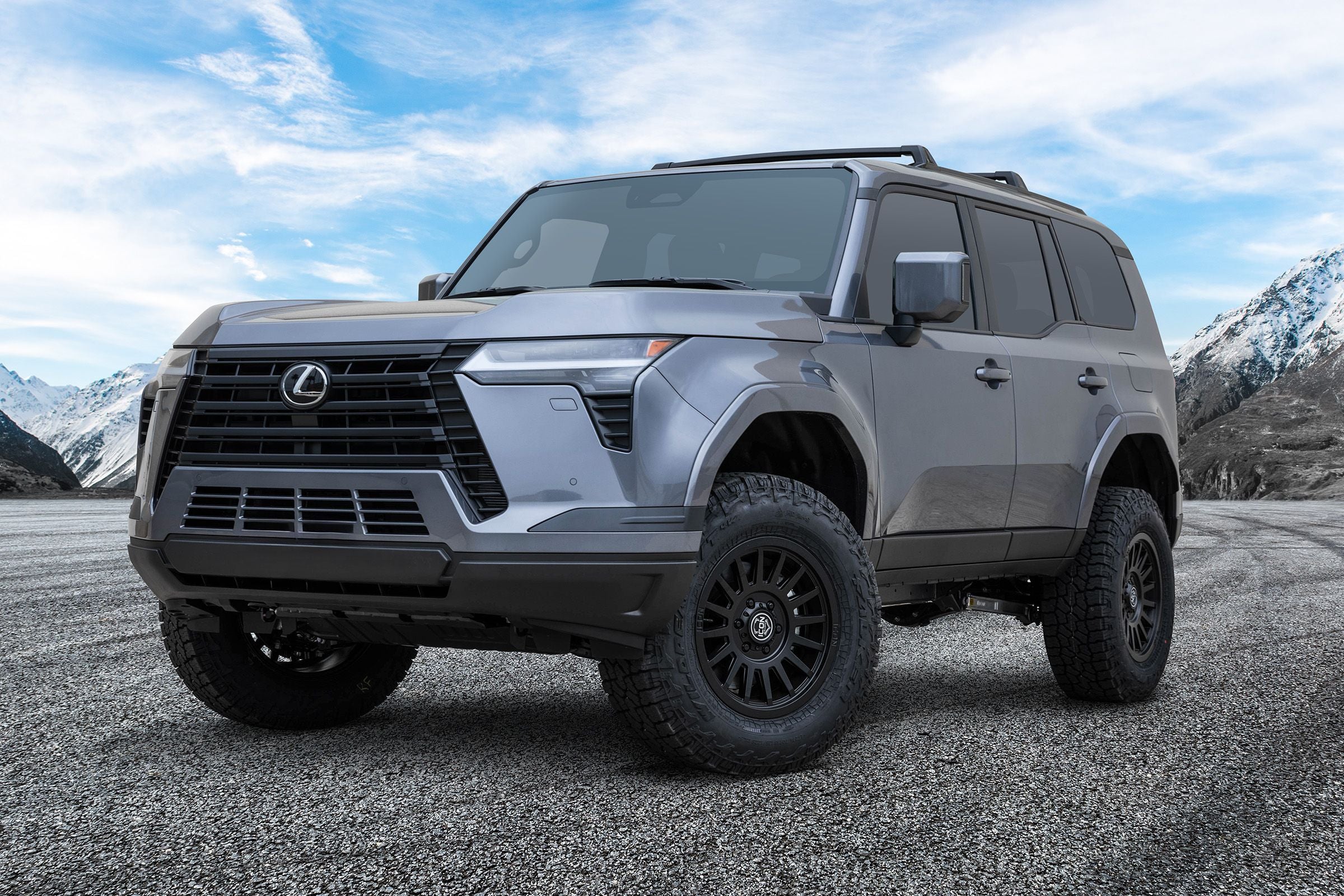

2024 GX550 1.25 3-Stage 8 Suspension System - Premium Off-Road Suspension Kit for Trucks & SUVs | Perfect for Rock Crawling, Overlanding & Off-Road Adventures

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Billet or Tubular rear lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

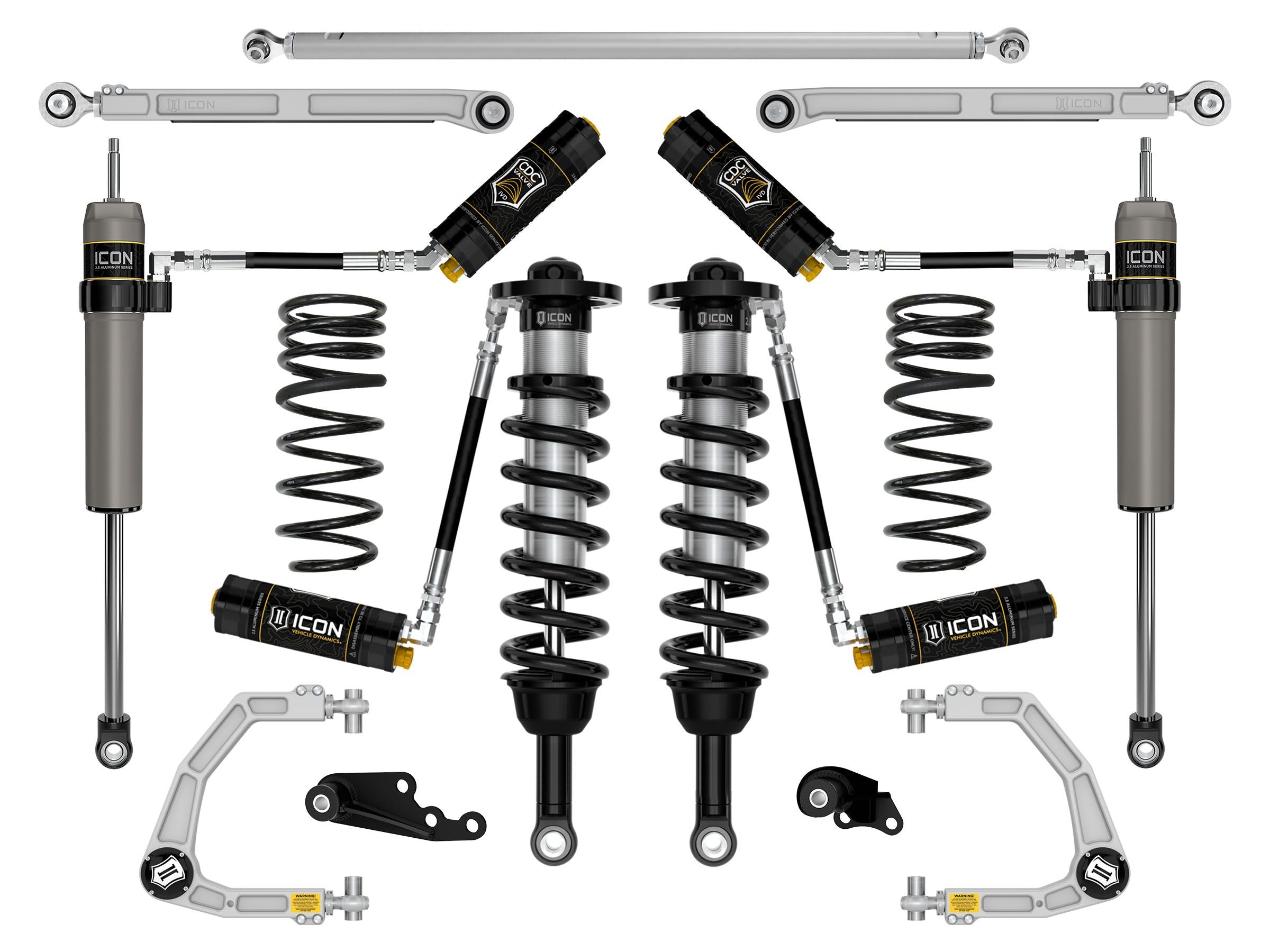

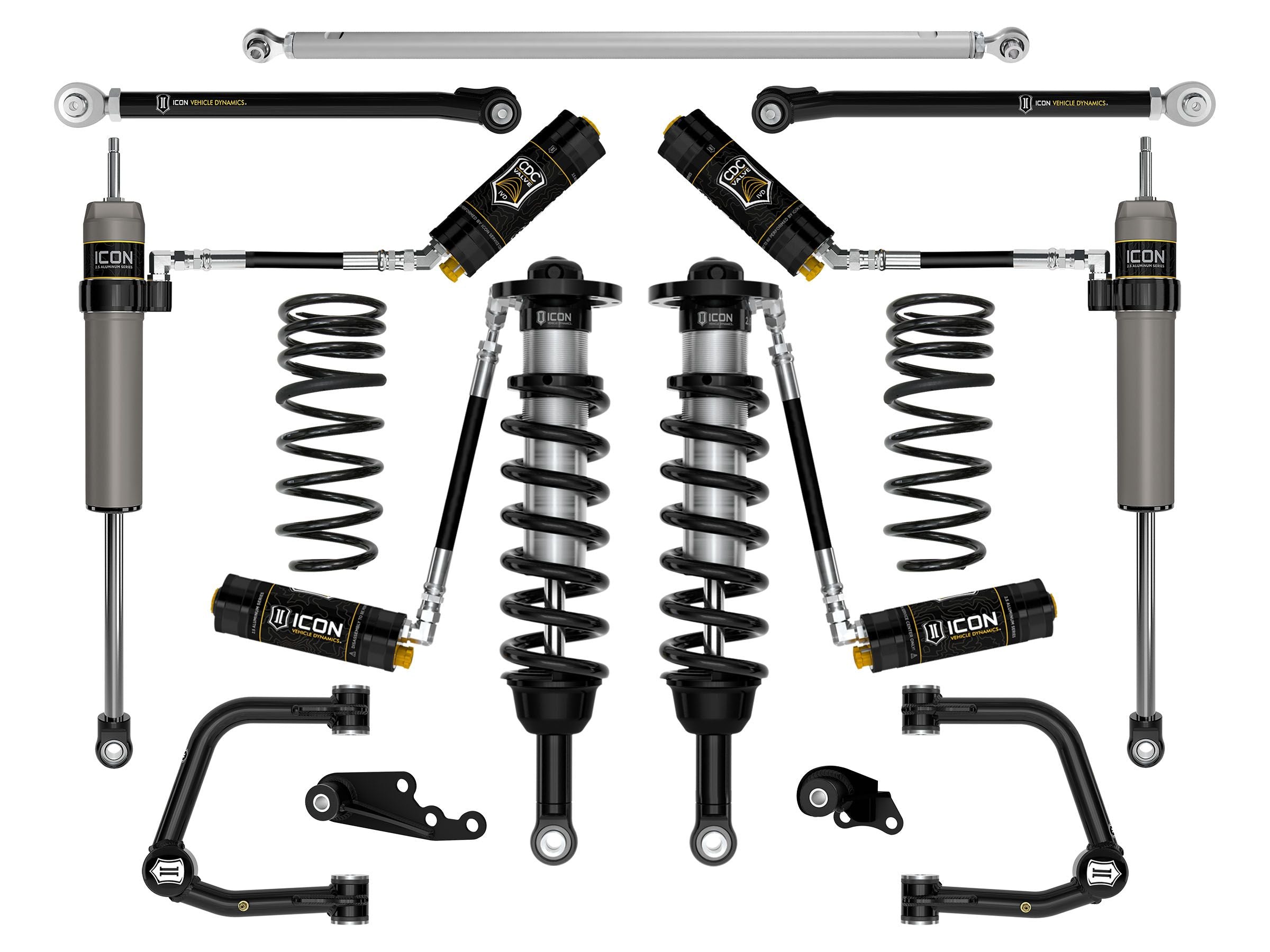

SYSTEM INCLUDES

• 58790C: 24 GX550 FRONT 2.5 VS RR CDCV COILOVER KIT
• 58452DJ: 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ: 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55156: 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752: 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 57870CP: 24 LC250/24 GX550 0-3" REAR 2.5 VS CDCV RR PAIR
• 54202: 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T: 24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or 54003: 24 LC250/24 GX550 BILLET REAR LOWER LINK KIT


TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
• Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #175: Will not fit GX550 Overtrail
• TECH NOTE (Stage 10): An iOS operated device is required to run ICON Intelligent Control App
