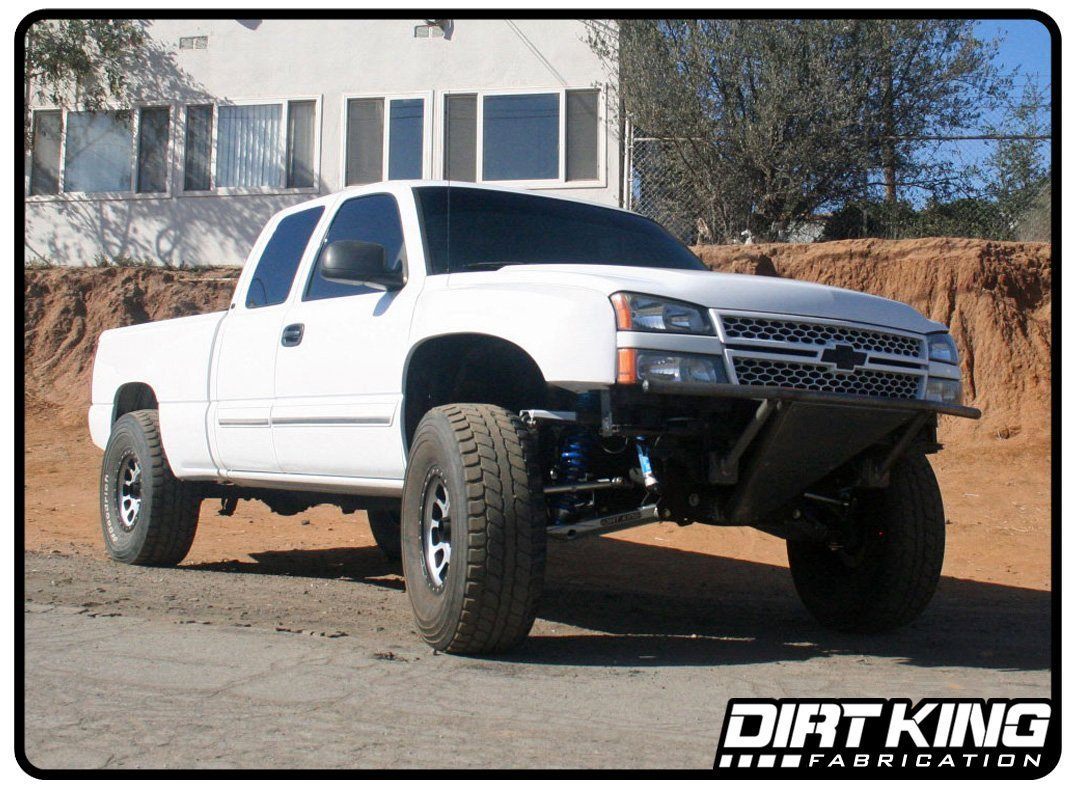

99-06 Chevy/GM 1500 2WD Long Travel Race Kit - Off-Road Suspension Lift System for Racing & Adventure

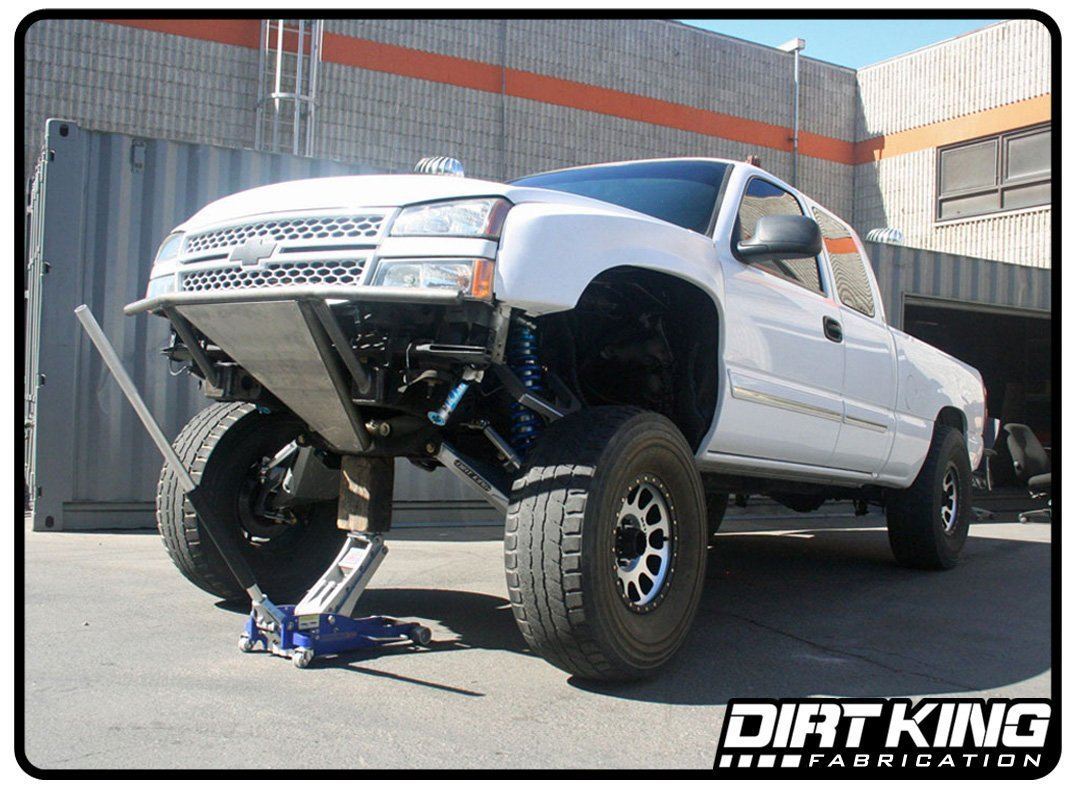

This suspension system was developed for the most extreme off-road terrain. The long travel race kit is capable of 17.5” of travel and can accept up to a 37” tire. We have perfected the suspension geometry by relocating the upper control arm mounts and modifying the outer pivot locations on the spindle. With these changes we were able to achieve twice the amount of travel compared to stock and eliminate bump steer throughout the suspension cycle. The kit accepts 2.5 x 10” coil overs, 3.0 x 10” bypasses, and 2.0 X 2.0 bump stops for superior suspension dampening. This kit is constructed using parts commonly found on trophy trucks such as massive FK 1.5" uniballs and JMX series heims. The result is a suspension system with reliable performance and off road handling that will exceed all expectations.

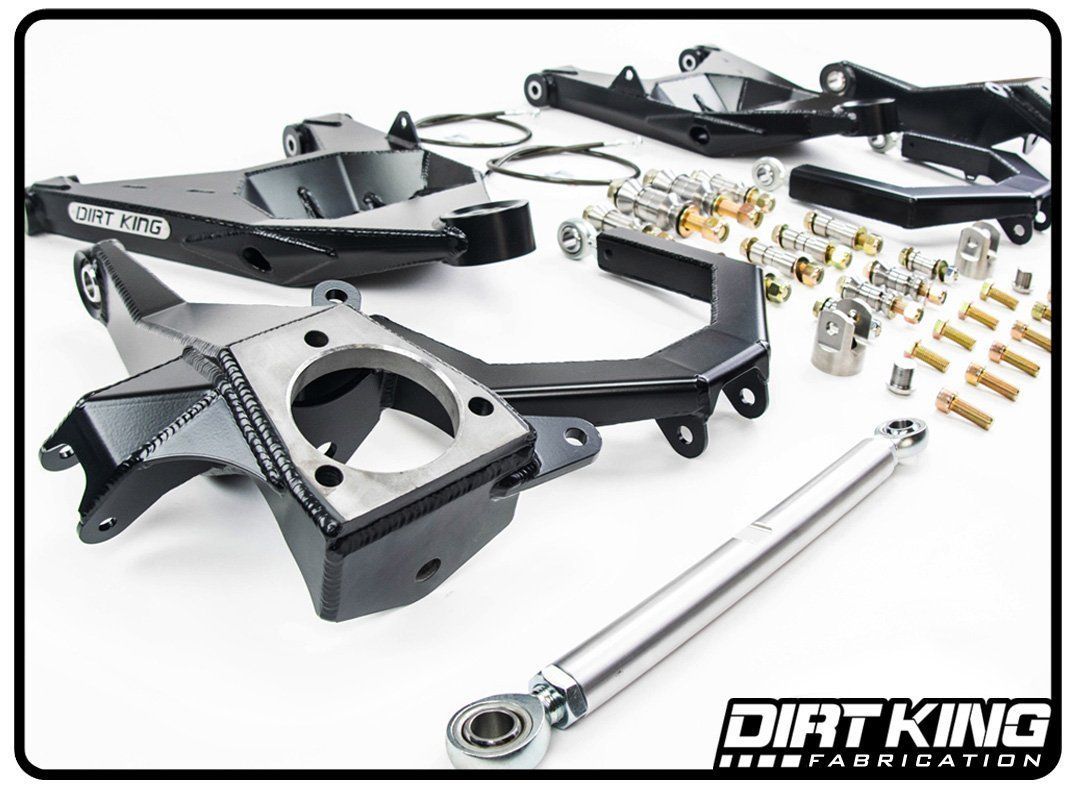

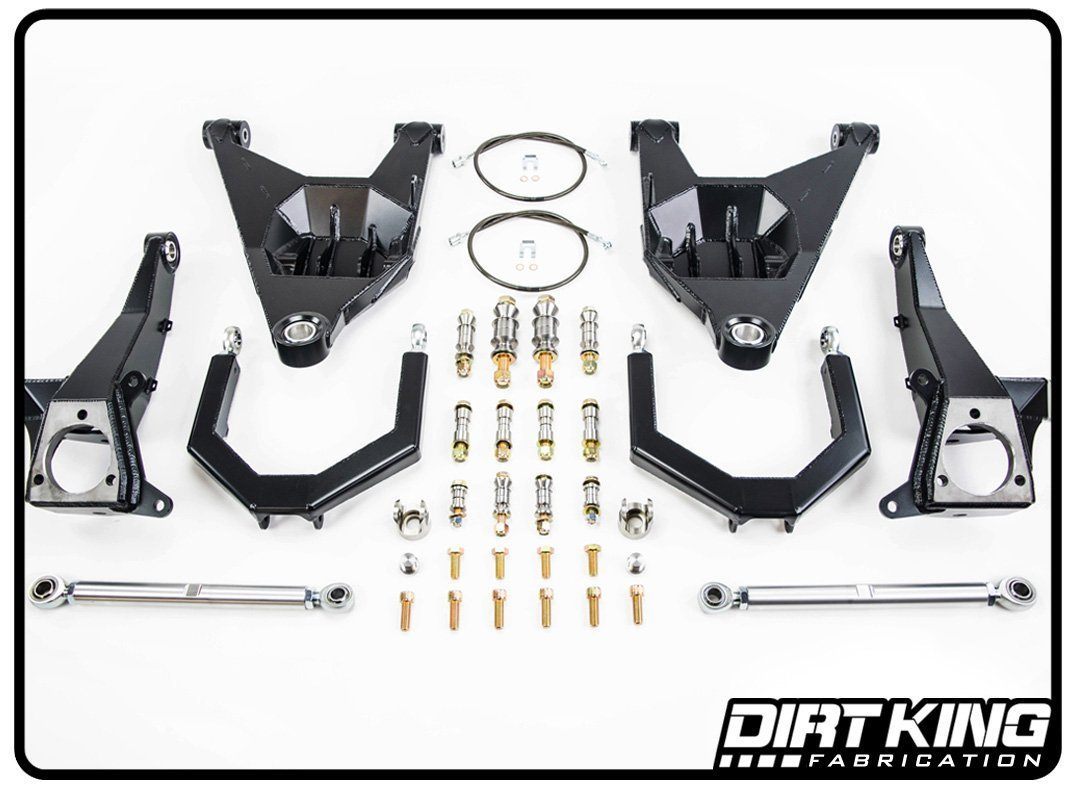

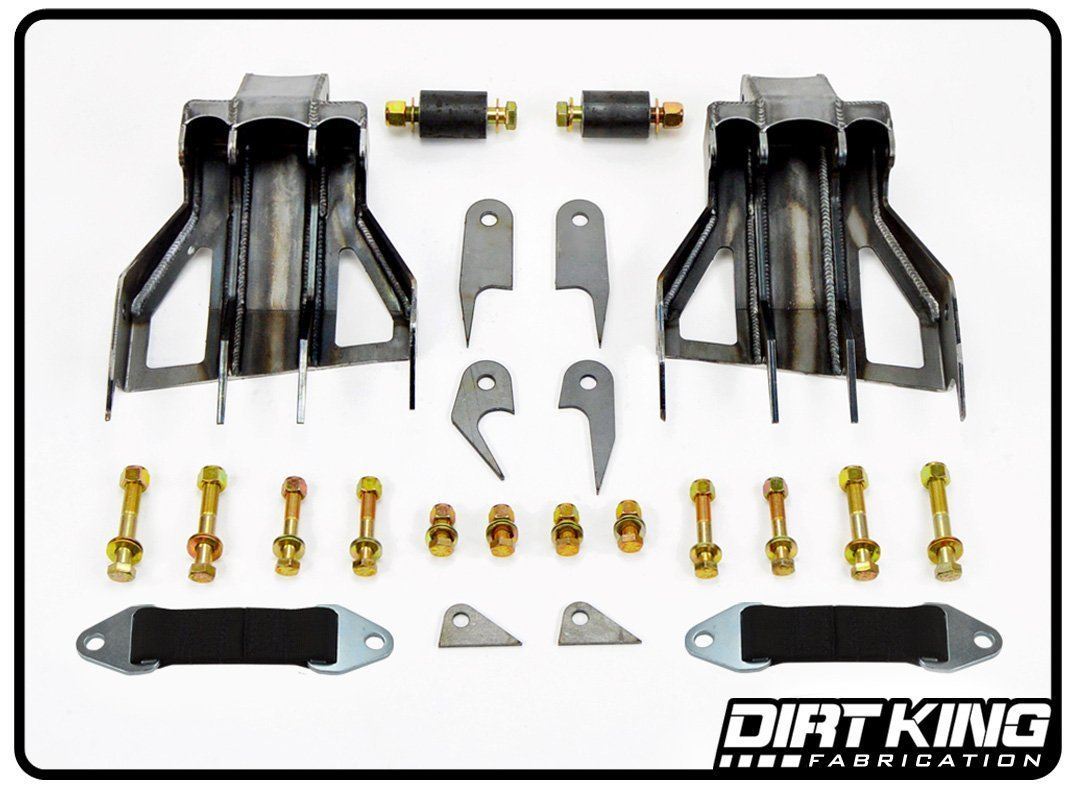

KEY FEATURES:

• Boxed plate upper control arms
• Boxed plate lower control arms with pocketed shock mounts
• 9" quad wrapped limit straps
• Weld on adjustable limit strap mounts
• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel steering clevis’s
• Fabricated shock towers
• Billet aluminum heimed tie rods
• DOT approved extended brake lines
• Grade 8 mounting hardware
• Durable black powder coat finish

SPECS:

• Wheel Travel: 17.5”
• Amount of Lift: 0-4”
• Track Width: 4.25” wider per side
• Maximum Tire Size: 37”
• Maximum Backspacing: 4.5”
• Minimum Rim Size: 17”
• Coil Over Shock Size: 2.5 x 10”
• Bypass Shock Size: 3.0 x 10”
• Bump Stop Size:2.0 x 2.0

FITMENT:

• 1999-2006 Chevy Silverado 1500 2WD
• 1999-2006 GMC Sierra 2WD
