Portable Digital Hardness Tester - Accurate Metal & Rock Testing Device for Industrial & Field Use | On-Site Quality Control, Construction & Material Analysis

Description

An advanced hardness tester distinguished by its very compact size, high accuracy, wide measuring range and simplicity of operation. It is suitable for testing the hardness of all metals and widely applied in many areas of industry.

It automatically computes all Vickers, Brinell, Rockwell and Shore hardness values. RS232 output enables this new model to print any of it's memory from up to 2000 locations. The impact direction can be set so that the accurate values can be achieved at any angle, even upside down! Statistical mean value automatically provided.

Common Features

• Dimensions: 108 x 62 x  25mm
• Impact Device: D
• Impact Energy: 8 Ft-Lbs. (11nmm)
• Test Tip: Tungsten Carbide
• Max. Hardness of Sample: 980hv
• Weight: 0.51lb(230g)
• Impact Direction: Any Angle
• Operating Temperature: 5 to 104 Degrees F
• Min. Thickness of Sample: 0.2in. (5mm) (Coupled: 3mm)
• Min. Weight of Sample: 11 lbs. /5kg (less than 5kg to 0.1kg coupled on solid support)
• Min. Thickness of Layers: 0.8mm
• Min. Radius of Curved Surface: 1.2in. (30mm) (With support rings: 11mm)
• Power: 2-AAA Batteries (supplied)
• Minimum Thickness: .500in Steel

Model Type

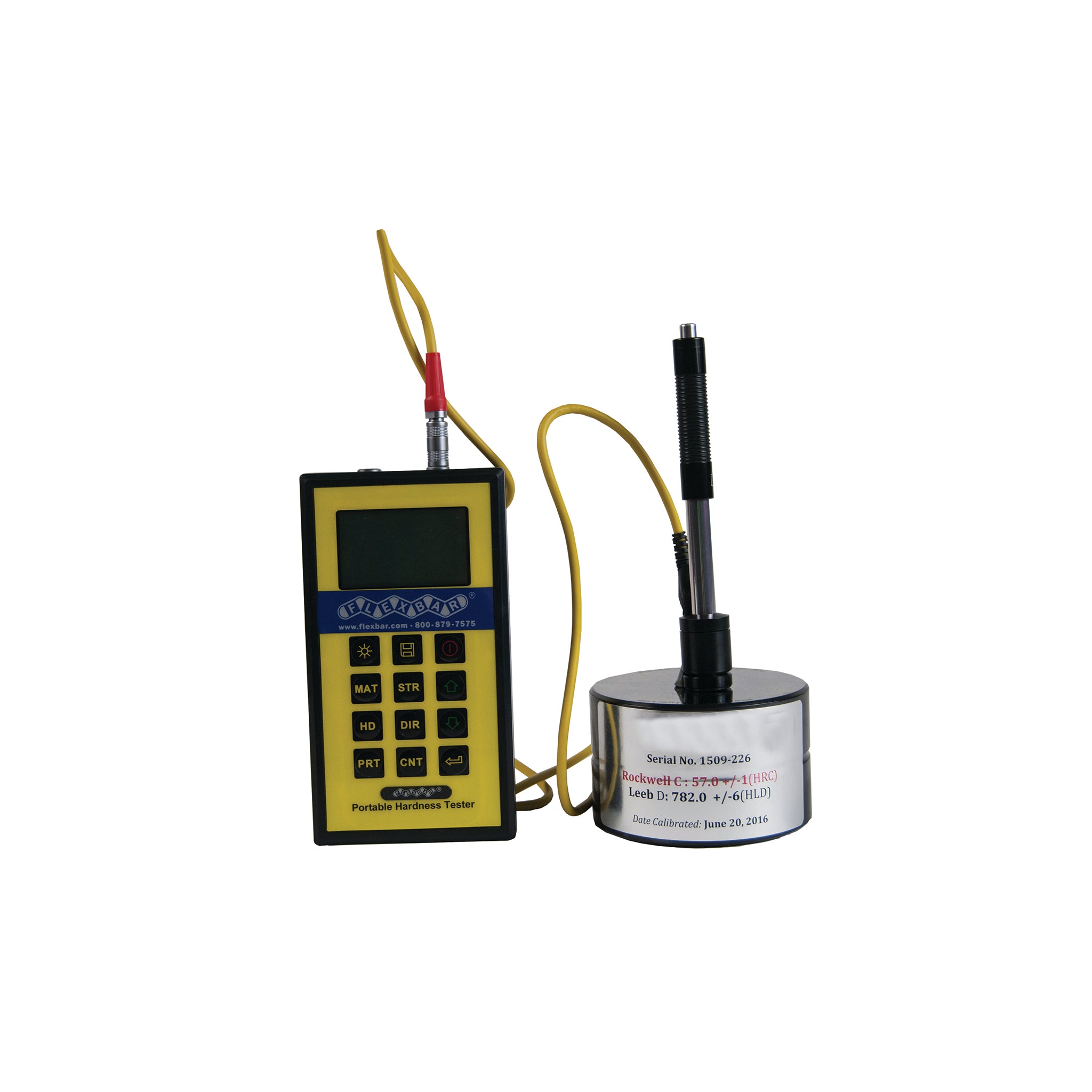

Standard Applications Model - provides exceptional reliability for a wide measuring range, and is capable of automatically converting and displaying measurements into Brinell, Rockwell, Vickers and Shore hardness values. Complete kit including Standard Integrated Hardness Tester, Test Block, Fitted Case and Instructions
