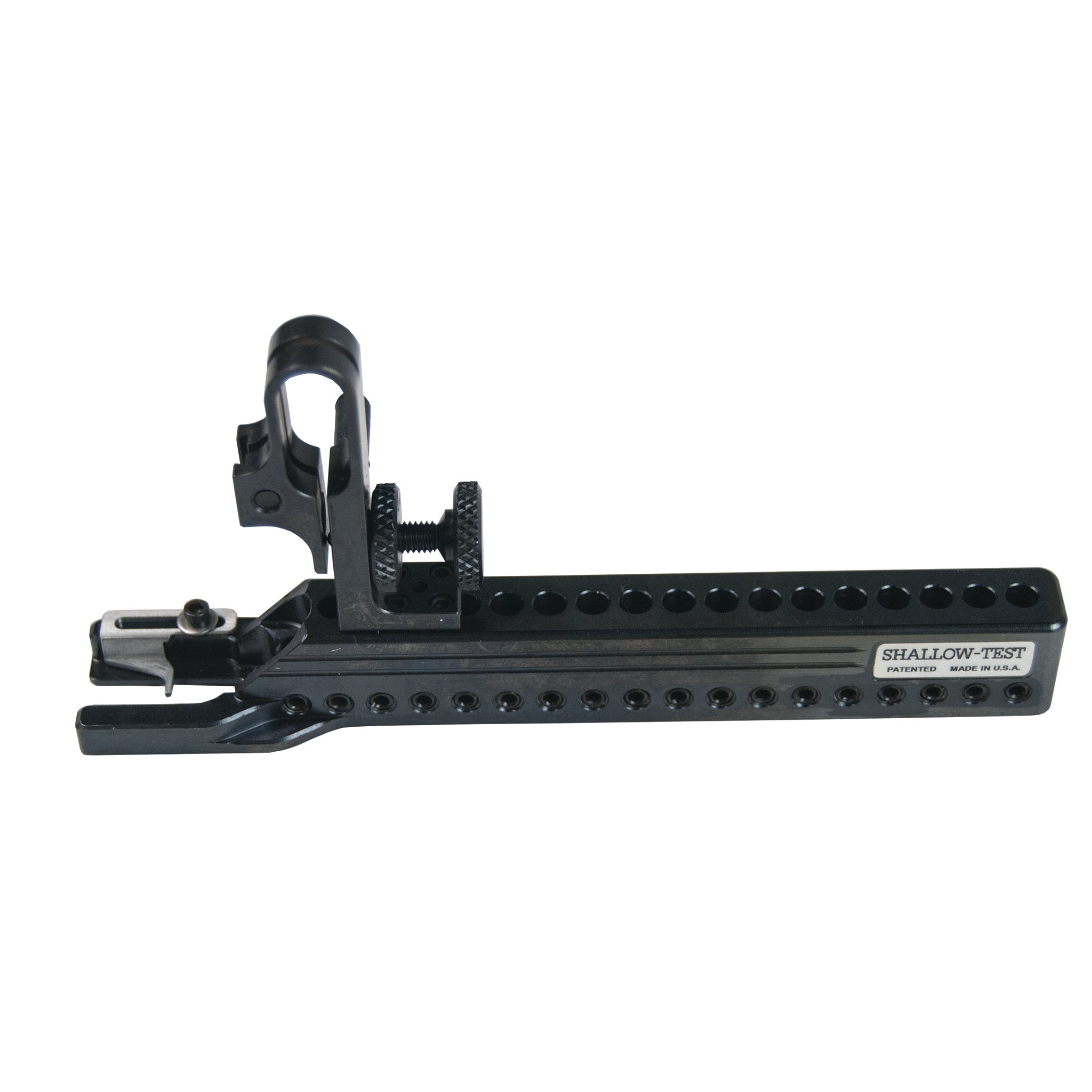

Shallow Test™ Gauge - Precision Measuring Tool for Industrial & Laboratory Use | Accurate Thickness Measurement for Metal, Plastic & Wood Materials

Features

• Made of hardened tool steel, black oxide finish (Models 13420 and 13421 only), precision made in U.S.A.
• Works with most brands of horizontal, vertical or side-mounted test indicators (see specifications below for size and fit). (Indicator not included).
• Lightweight, handy and highly sensitive.
• Good visibility to measuring area.
• Easy set up with fine adjustment using gage blocks, ring gage or qualified part.
• Indicator contact point stopper ensures smooth entry to measuring area.
• Includes a hardened tool steel contact pin, two allen wrenches and storage box.

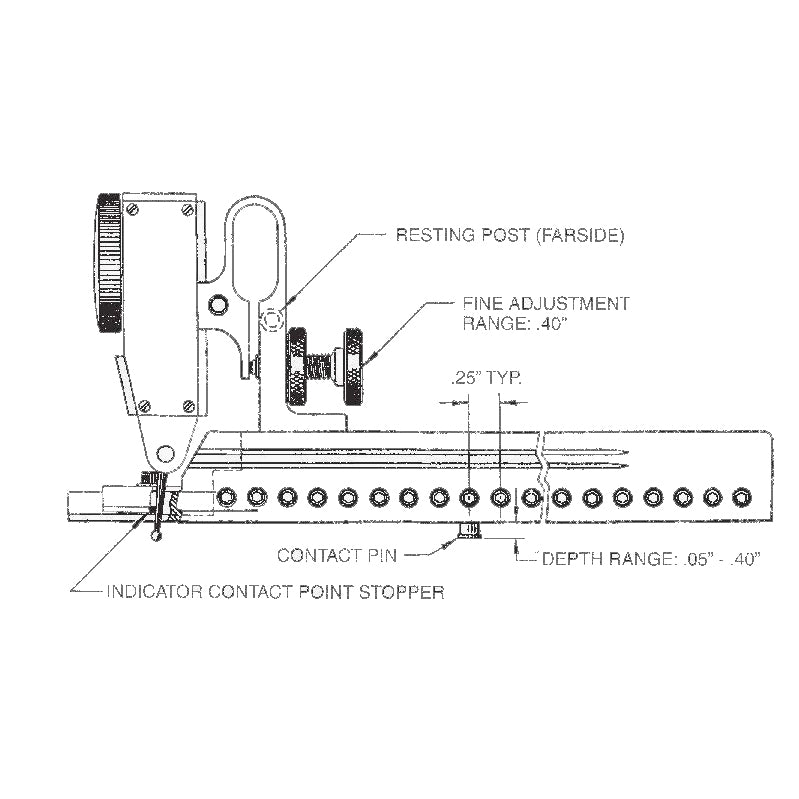

Specifications

• Contact pin hole distances: .25"

• Fine adjustment range: .40"

• Depth range: .05" - .40"

• .55"- 12.1" Internal Range.

• External Range: .24" - 12.05"
