2023 Ford F250 F350 Carli Commuter Suspension Lift Kit - Off-Road Performance Upgrade for Heavy-Duty Trucks | Perfect for Daily Commuting & Adventure Towing

overview

• Front Lift Height: +3.5" or +1.5" for Tremor
• Front Wheel Travel: 9.5"
• Rear Wheel Travel: 12.3"
• Shock Diameter: 2.0"
• Tire Fitment: 37" x 12.50"

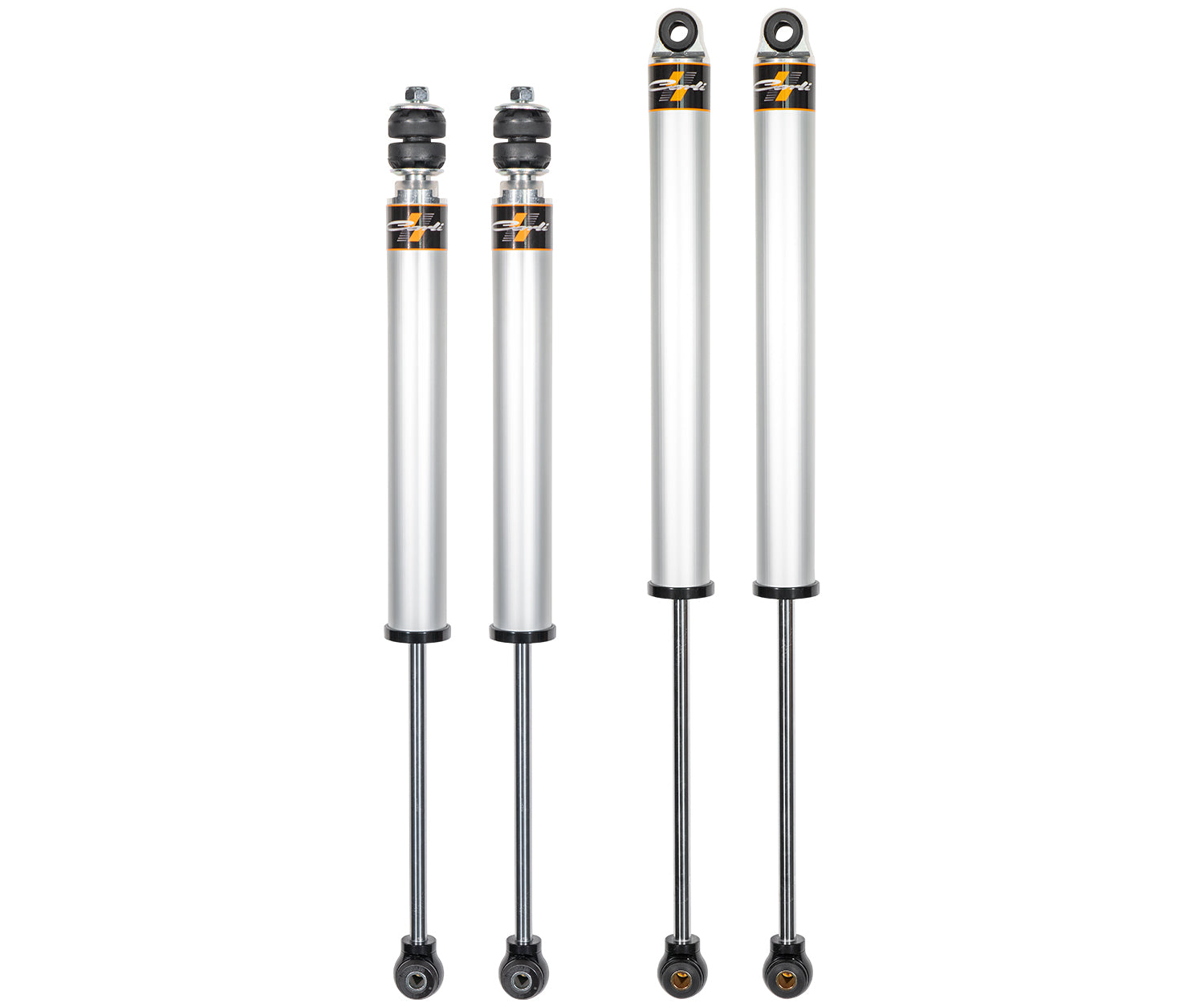

The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.

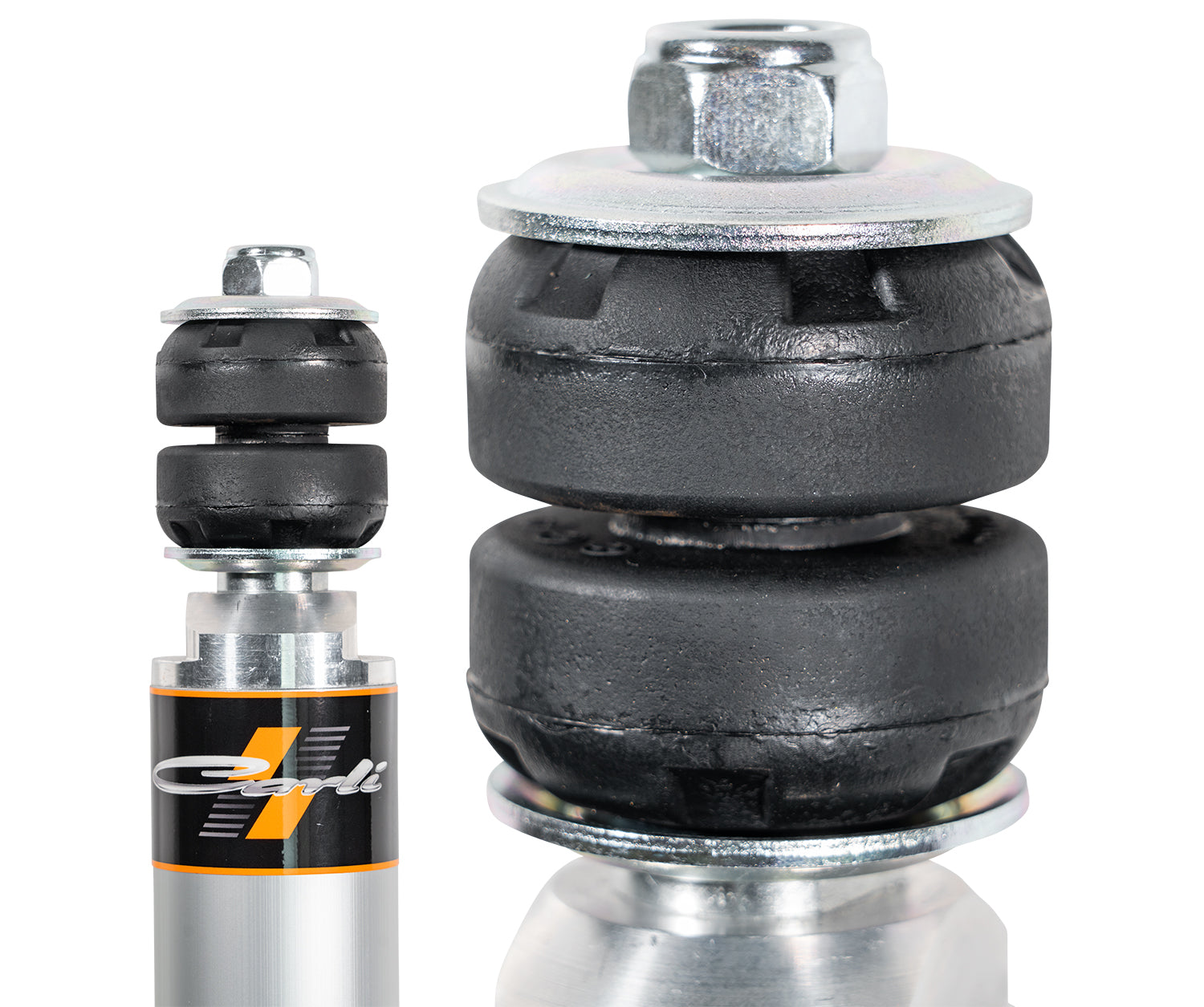

The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli. Unlike most of our suspension systems, the Commuter was tuned with 20”, factory wheels on factory Michelin tires given many in the entry level, 3.5” lift market want the most bang for their buck and will continue to run the factory wheels and tires.

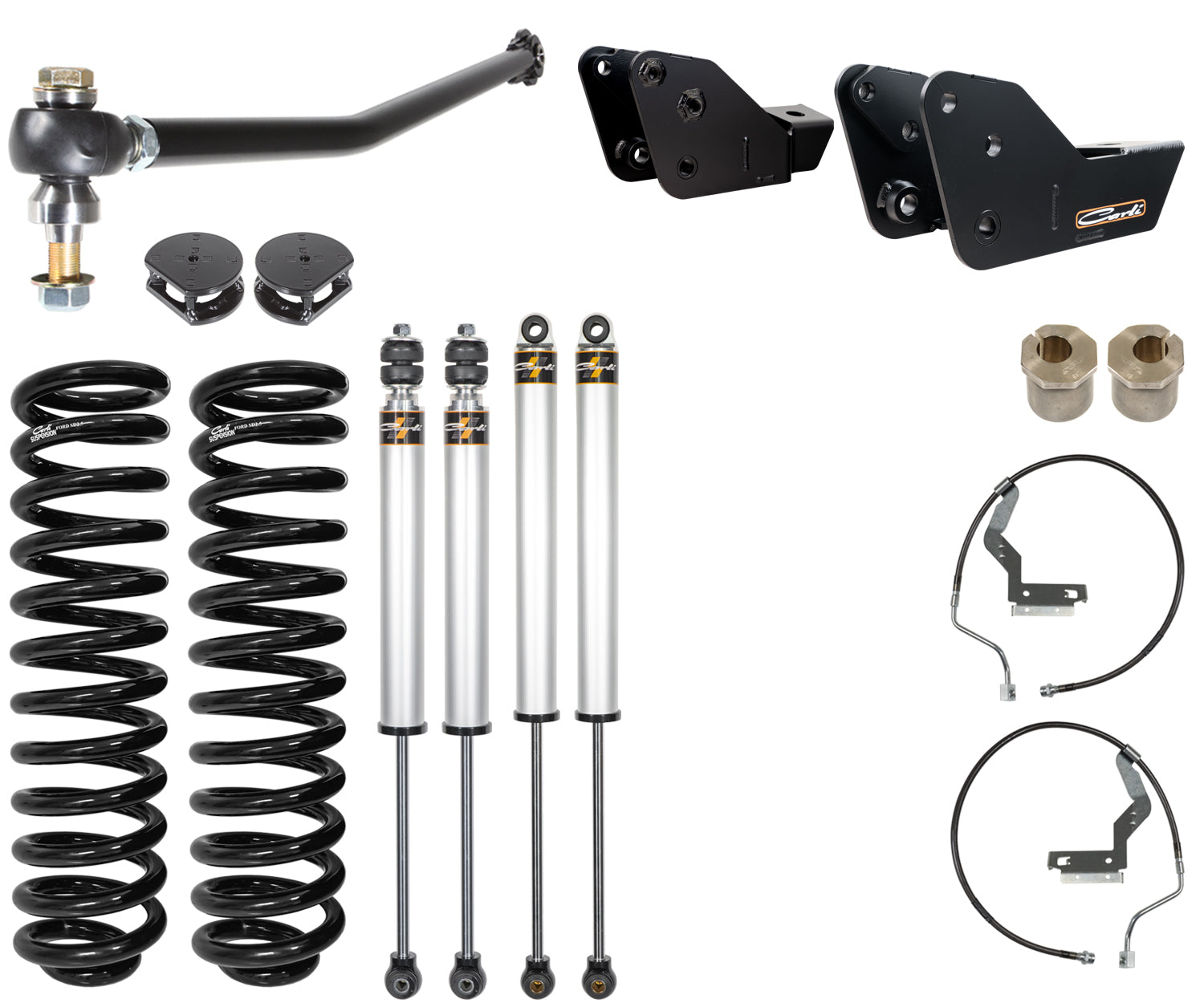

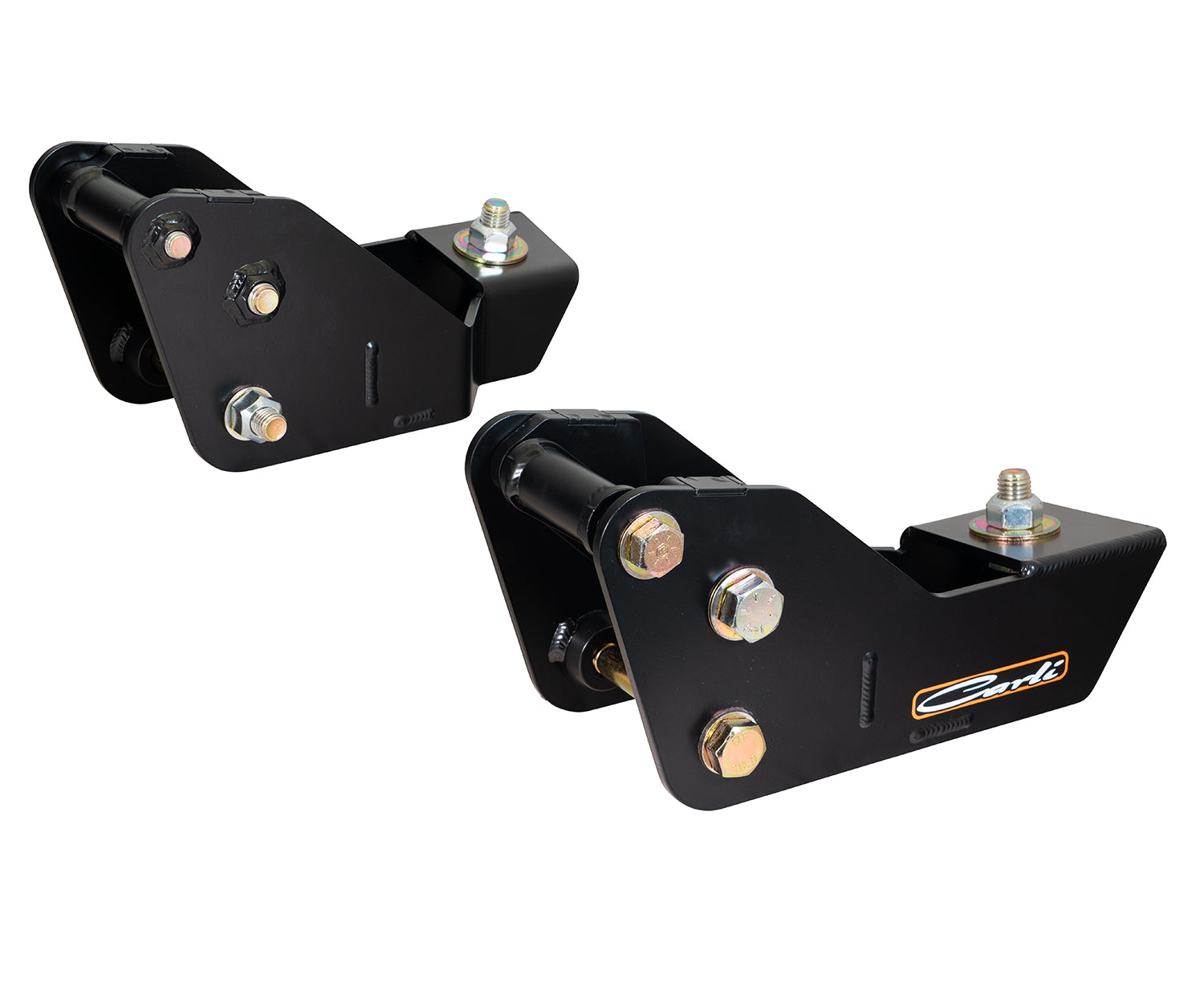

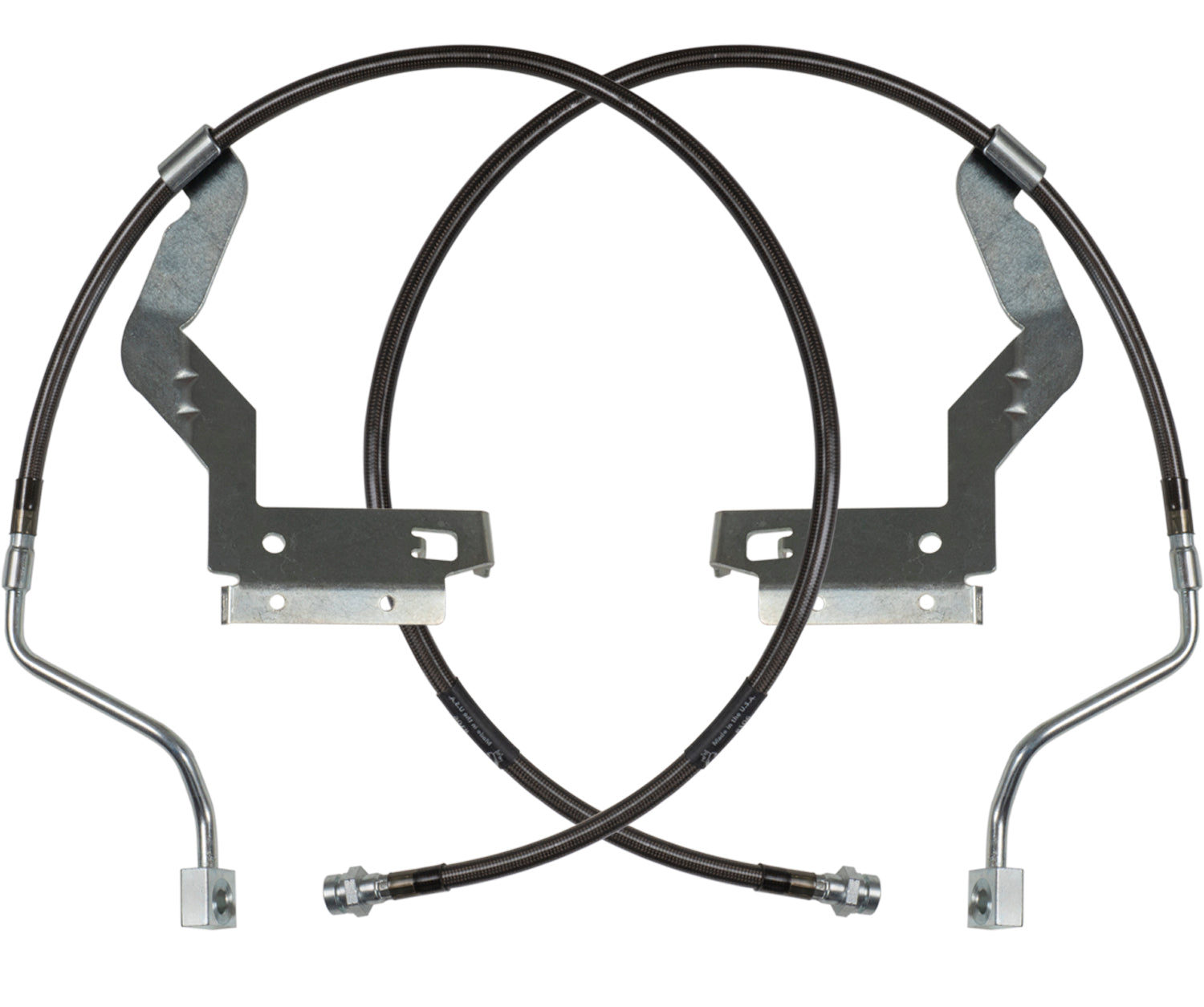

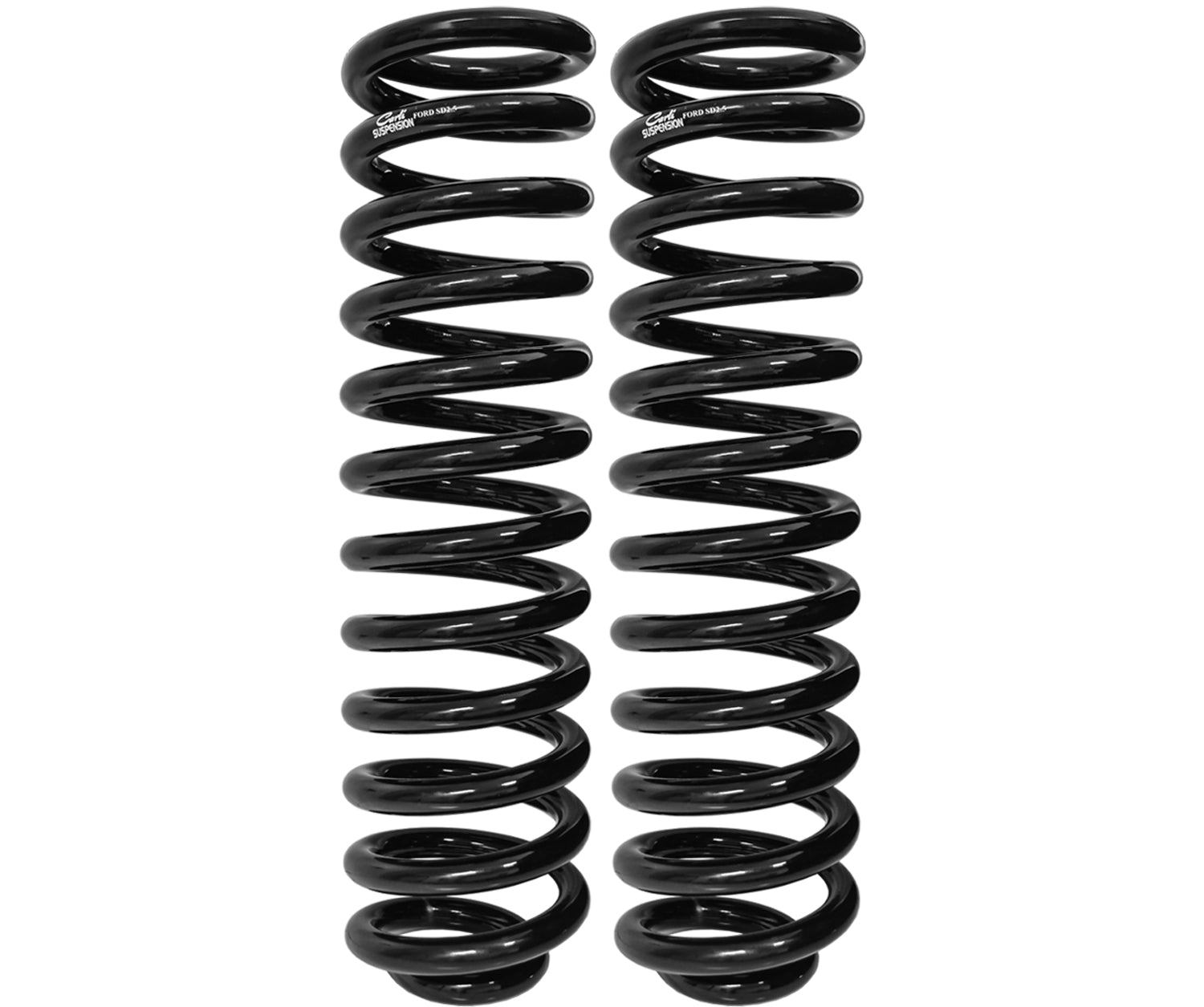

The truck will sit 3.5” higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. The Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Radius Arm Drop Brackets & 1° Caster Shims to correct caster and provide proper tracking. A fabricated, High-Clearance Bump Stop Drop to keep the springs clear from the contacting the factory bump stop. The front Sway Bar Geometry will need to be addressed with your choice of a Sway Bar Drop Bracket (more economical, maintains the factory Sway Bar End Links) or our Extended Sway Bar links with relocation brackets – a FAR more robust option. For those seeking the most possible ride quality, we offer our full replacement Torsion Sway Bar that lightens the most neglected spring rate – the factory sway bar. From the Torsion Sway bar upgrade, one can expect a far more compliant feel and increased articulation with only slightly more body roll.

The rear can be outfitted with one of 3 options:

1. Best: A replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton). The Full Progressive Leaf Spring Pack offers the best ride and will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression. The Full Replacement Leaf Springs do not require any block (factory block is removed). If capacity is a concern, an aftermarket airbag system should be installed to complement the Full Progressive Leaf Springs to restore the F350 capacity. We recommend a system that will allow the airbags to disconnect from the lower mount during suspension cycling to ensure you’re able to take advantage of all your rear suspension travel. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.
2. Better: Factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity). The F250 has a lighter rate spring pack (2 main leaf springs) than its 350 counterpart (3 main leaf springs). The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If you own an F250 built with the Tremor or high-capacity tow package, these are equipped with an F350 rear spring and should avoid the add-a-pack, as well.
3. Good: The final option is to select “NO rear option” in this scenario, the rear lift will be left up to the customer as no rear spring modification is purchased. With this option, the rear springs are unaltered and customers will be best with the “PAP” valving profile. The valving has been tested on both F250 and F350 (2 and 3 leaf main packs). The F250s with 2 Main springs will require a taller block to sit level (4″ and slightly tapered). The F350 (and f250 High capacity tow) with 3- leaf main springs will need a 3″ block, also slightly tapered. Tremors do not require a block change as they come with a taller, tapered block and will sit slightly rear high with the Carli System installed.

This system will not achieve a proper rear-high stance without the installation of the Add-a-Pack or Full Progressive Leaf Spring Pack. Without any rear option, an F250 will sit about rear-low. If a Carli rear spring option is not purchased, one can install the taller 2017-19 Ford 3″ rear block for a leveled stance but rear ride quality will not be optimized (Factory Block PN: HC3Z-5598-A and HC3Z-5598-B)

Shock Valving Option:

This option is to select the valving for your shocks in the kit, depending on which rear leaf spring option you want. This valving matters as the two options are valued differently to compliment the rear leaf springs you wish to use.  If you are planning on keeping the stock pack or going with the Carli Add-a-Pack kit, choose the add add-a-pack valving. If you plan on doing the full progressive leaf spring pack, select the full progressive valving.

Sway Bar Options

The Commuter System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Extended Sway Bar End Links:

• Combines End Links and Drop Brackets For Perfect Sway Bar Position
• Extended Length to accommodate Leveled Trucks
• 17-4 Stainless Steel, Greaseable and Fully Rebuildable
• Excellent Articulation
• Compatible with 2.5″ & 3.5″ Suspension Systems

Torsion Sway Bar Kit:

• Direct Fitment to Carli Leveling Lifts
• Replaces Immobile Factory Sway Bar with Custom Torsion Bar
• Huge Ride Quality Improvement
• Includes CS-FEL-LVL-17 Drop Brackets and Sway Bar Links

Leaf Spring Options

Progressive Add-A-Pack:

• Built in the U.S.A. By Deaver Leaf Spring
• Smooth, Progressive Design
• Supplied with Bump Stop Drops, U-bolts and hardware
• Pairs to Carli Leveling Lifts, provides 1/2"-1" high rear stance
• Eliminates the Factory Block
• Load capacity is maintained, ride quality is improved

Full Progressive Leaf Springs:

• Provides a 1/2", rear high stance to Carli Leveling Suspension Systems
• Reduced Overall Spring Rate to “light 3/4-ton” for a Better Ride
• Increased Progression (Spring Rate)
• Progressive Overload (Factory overload is a hard-stop)
• Dramatically Increased Suspension Travel
• Minimized Friction Throughout the Pack
• Optimal Ride for Commuter, Backcountry, Pintop and E-Venture
• Optimized Center Pin Location to Ensure Maximum Tire Fitment
• Includes Serviceable Bushings, New U-Bolts and Rear Bump Stop Drops
• Fitment: 2017-24 Ford F250/350 4x4, Diesel 3.5-4.0" Axle Tube

Full Progressive HD Leaf Springs (Constant +1000lbs in bed):

• Block eliminating, Full Progressive Spring Pack
• Heavy Duty Full Replacement Leaf Springs designed for those with constant 1,000lbs in the bed
• Includes new U-Bolts and Rear Bump Stop Drops
• Provides a 1", rear high stance on Matching 2.5" Leveling Suspension Systems
• 37" Tire Fitment
• Fitment: 2017-24 Ford F250/350 4x4, Diesel 3.5-4.0" Axle Tube

Wheel and Tire:

Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 3.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
