2019-2024 Ram 3500 Carli 2.5 Pintop Leveling System with 2.5" Lift Kit | Off-Road Suspension Upgrade for Enhanced Performance & Towing | Perfect for Overlanding, Truck Camping & Heavy-Duty Hauling

THE JACK-OF-ALL-TRADES:

Carli's Pintop Leveling System provides a 2.5″ front lift designed for the customer who refuses to keep the rubber on the tarmac and has an eye for quality and appreciation for bang-for-their-buck.

The Pintop is the Backcountry on steroids, take the description for the Backcountry and throw an exponent on it. This system is Carli's Jack-of-all-trades system from which every Ram owner would benefit. Raising the Ram platform then adding the 2.5” diameter shocks will support the argument that these trucks should come equipped with 2.5” shocks from the factory. This system is Carli's most popular, all around suspension system. It was tuned and rides best with our Full Progressive Leaf Springs and 18” wheels with 37” tires.

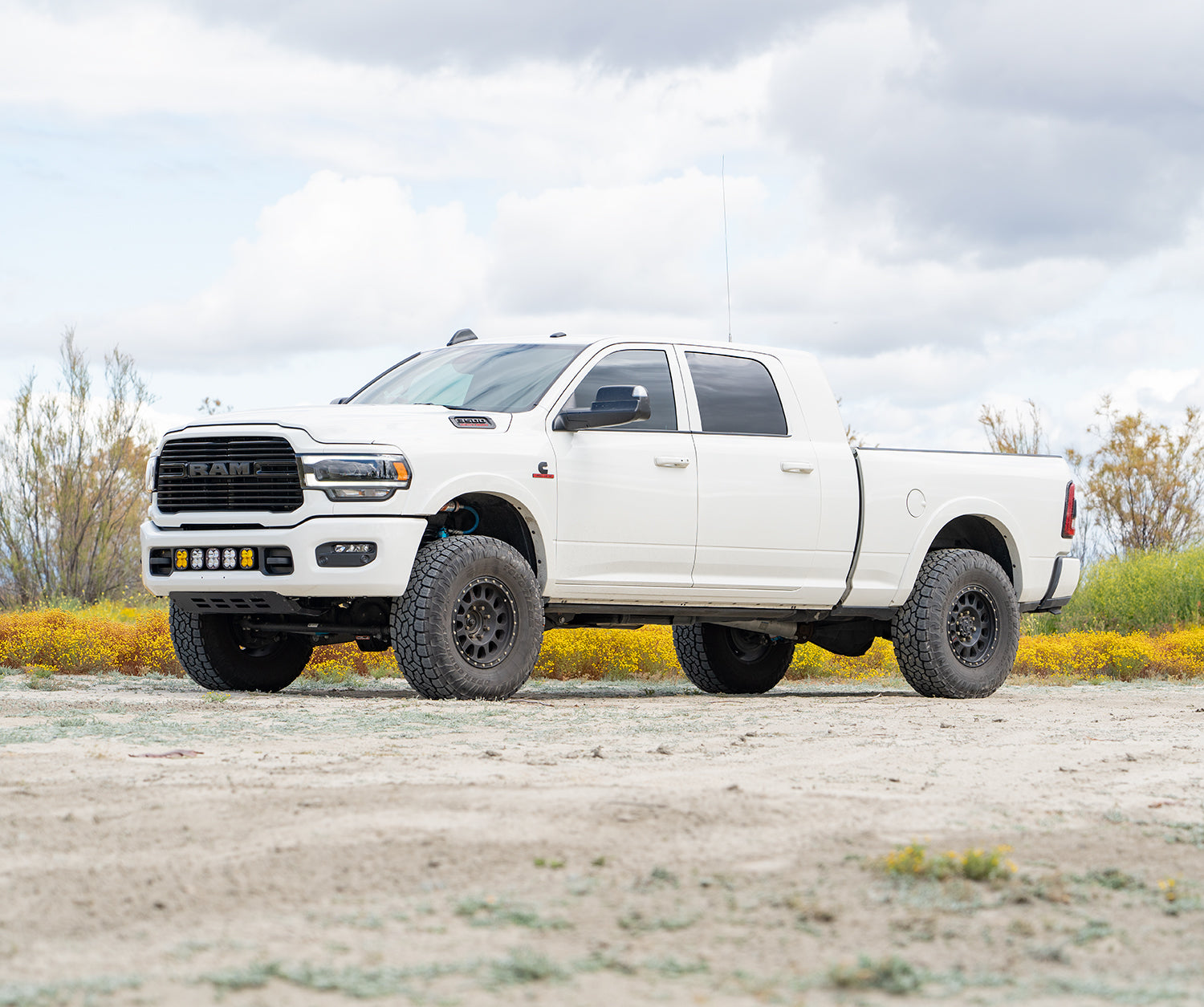

Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear is lifted 2”-3” via the customer’s choice of a Progressive Add-A-Pack & Block combo or Full Progressive Leaf Pack. The Progressive Add-A-Pack/Block maintains load capacity and replaces the factory overload with a 5-Leaf, progressive pack that changes the final rate of the spring pack keeping the rear planted while increasing traction and predictability. The optional Full Progressive Leaf Pack replaces the entire factory leaf spring assembly increasing travel and drastically increasing comfort (when compared to when compared to the factory springs or add-a-pack) throughout the entire usable travel stroke at the cost of a 15% payload reduction from a standard 2500.

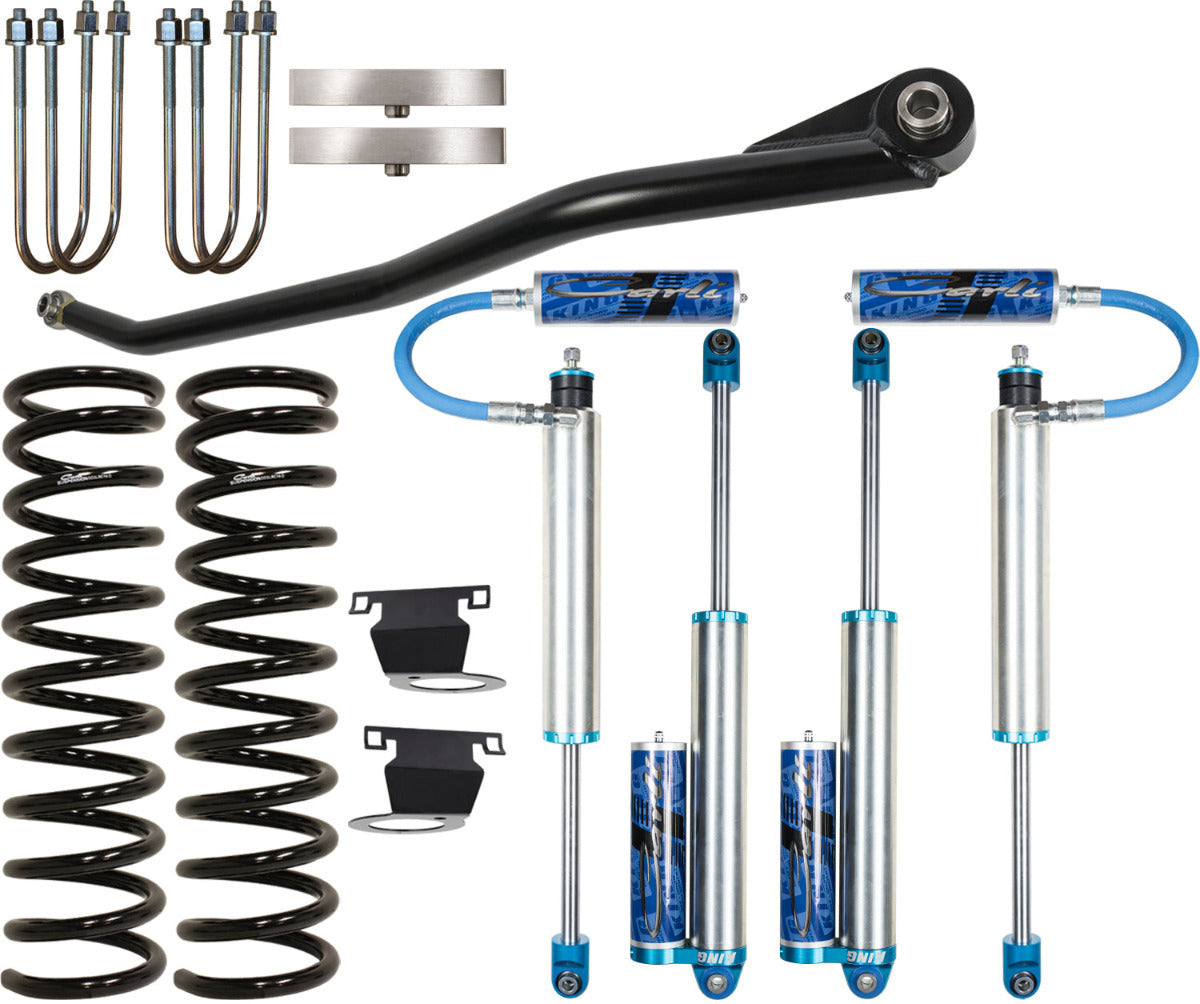

BASE KIT INCLUDES:

• CS-DLRC-14-LVL-D: Leveling Front Coils
• CS-DPT25SPKG-LVL-13-D: Carli Tuned King 2.5" Remote Reservoir Pintop Shock Package with Reservoir Mounts, Stainless Shafts
• CS-DATB-1419: Adjustable Track Bar with Stabilizer Bracket

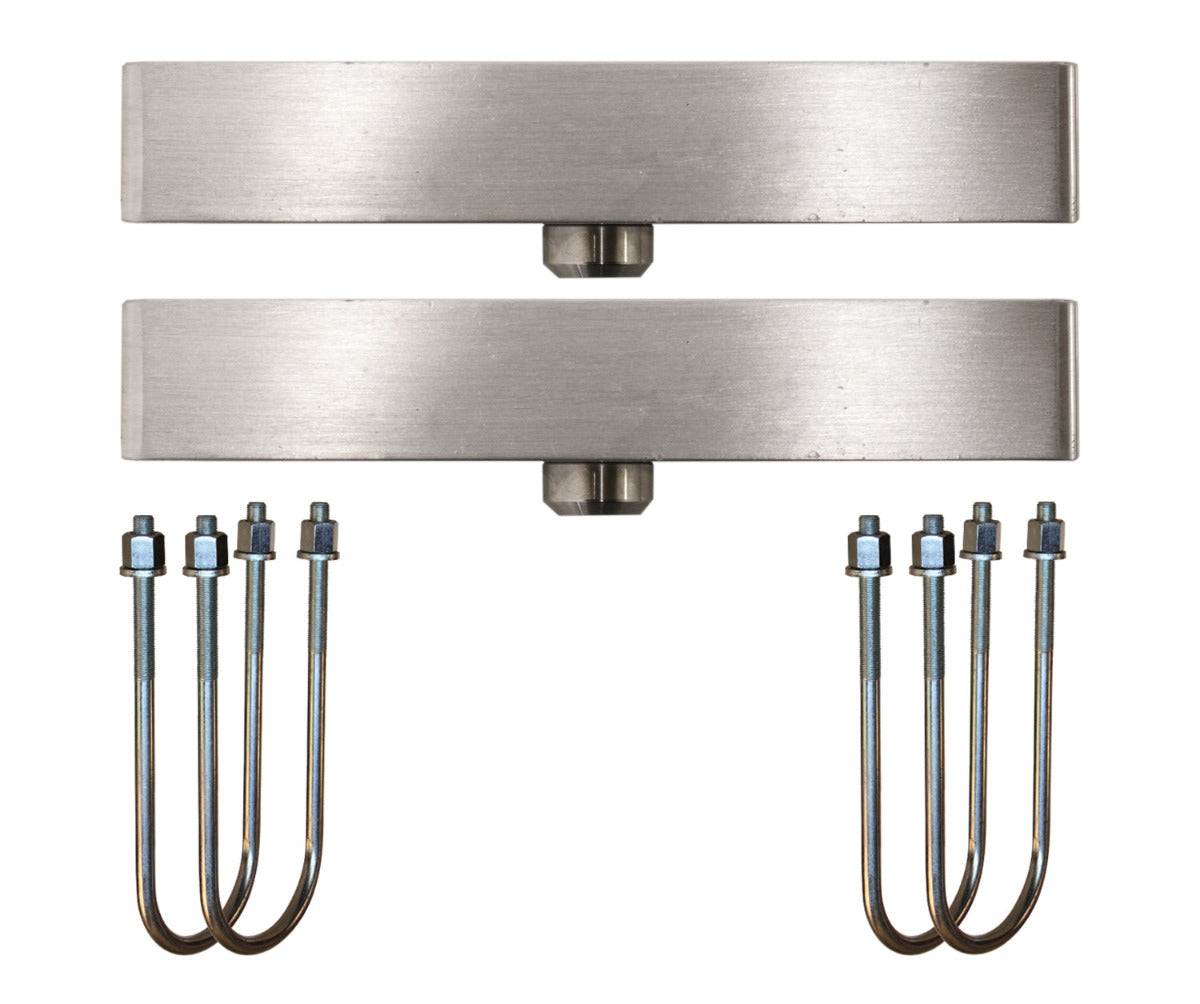

• CS-DRBKIT-1-4.25: 1″ Billet Block & U Bolts

KIT SPECS:

PRODUCT OPTIONS:

SWAY BAR OPTION:
CS-DTSB3-1419

• Easily the best "bang for the buck" upgrade for ride quality
• Allows front suspension to move freely without giving up control
• Requires removal of electronic sway bar on Power Wagons
• Compatible with 2.5"-4" Front Lift

DETAILS:

This system is designed for the customer who refuses to keep the rubber on the tarmac and has an eye for quality and appreciation for bang-for-their-buck. At the heart of this system is a 2.5” lift, Linear Rate Coil Spring paired to matched travel King 2.5” Remote Reservoir Shocks that have been custom tuned, in house, for superior ride quality and handling both on-road and off. The rear piggyback reservoir shocks are also included with this system and have been custom tuned to maximize the ride quality of the factory rear leaf springs. As the rear springs remain unmodified, load capacity is maintained while on and off-road handing and predictability are massively improved. For those that love the way their Ram tows from the factory but don’t want to be limited to a crawl when leaving the pavement, this is the perfect kit.

Wheel and Tire:

This system will fit up to a 37” tire when utilizing wheels that are no more than 9” wide with 5.75-6” of backspacing. A 12.5” wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5” will require more trimming and slightly more offset to fit properly. 35” tires will fit with VERY minimal, if any trimming. We Recommend running an 18” diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35”-37” E-rated tire
